Pipishell PIMT4 Installation Instructions Manual page 5

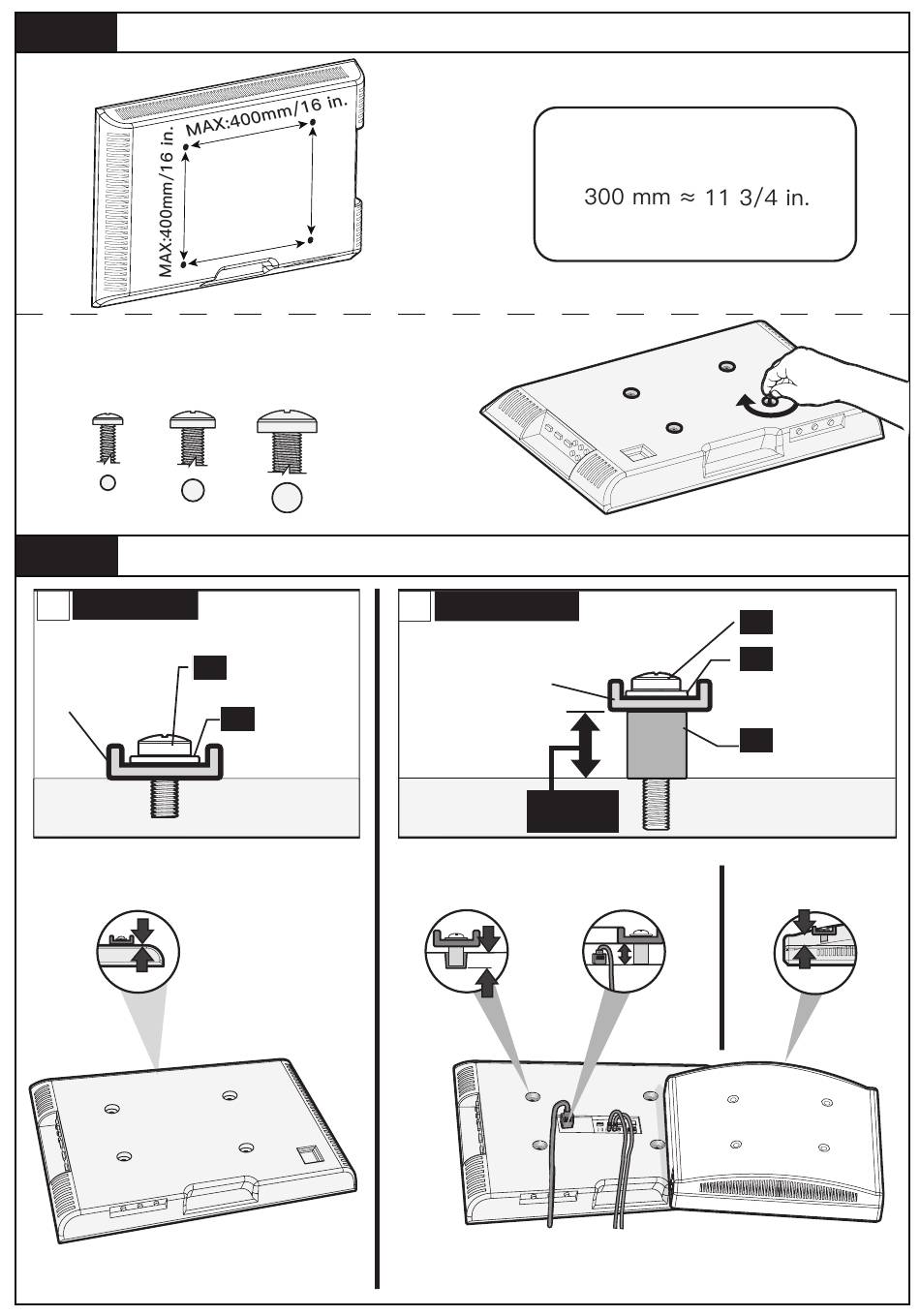

Step 1 Check TV Hole Pattern and Select TV Screws
Only one screw size fits your TV.
M4 M6
Step 2
Select Spacers (if needed)
a
NO SPACER
TV Bracket
For Flat TV
Spacer not necessary
M8
06
Short Screw
04
Washer
[For M4 M6 screws]
b
WITH SPACER
TV Bracket
EXTRA
SPACE
For Flat TV with:
Inset Holes Cable Interference
3
3
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
06
04
[For M4 M6 screws]
05
For Rounded TV
Long Screw
Washer
Spacer
