Installation Instruction
V1.0

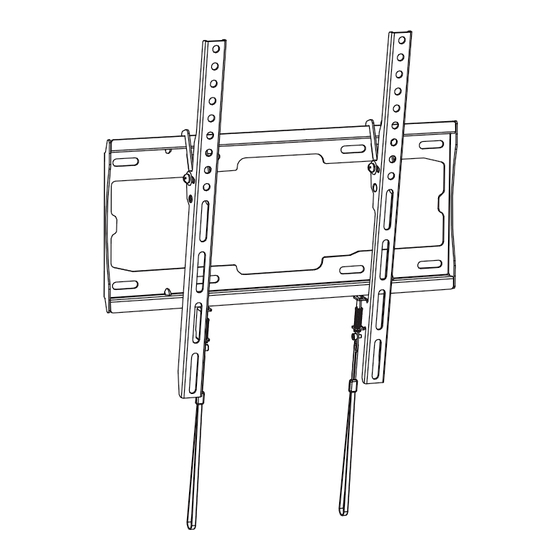

PIMTK1
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
Advertisement
Related Manuals for Pipishell PIMTK1
Summary of Contents for Pipishell PIMTK1
- Page 1 Installation Instruction V1.0 PIMTK1 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
-
Page 2: Hardware Included
Do not install or assemble if the product or hardware is damaged or missing. Not all parts and nardware included must be used. lf you require replacement parts, contact customer service at supportus@pipishell.net This product may contain moving parts. Use with caution. - Page 3 Hardware Included Hardware (Wall/Product) Lag Bolts Washers Level CAUTION! M8X65mm Ø8mm Wall These anchors are for Anchor concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. TV Screws / Washers Spacers Spacers Washers Philips Screws Philips Screws Philips Screws Ø6mm...
- Page 4 Step 1-2 Select TV hardware Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns. - Too short will not hold the TV. - Too long will damage the TV. Too Short Too Long Correct...
- Page 5 Step 2A Wall Plate Install (Concrete Wall) CAUTION : Anchor These anchors are for concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. 2A-1 2A-2 70mm ø10mm Position the wall plate at your desired Drill 4 pilot holes using a 25/64 in(10mm) height, leve the wall plate and mark the diameter drill bit.
- Page 6 Step 2B Wall Plate Install (Wood stud) CAUTION : These anchors are for concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. 2B-1 2B-2 Position the wall plate at your desired height Use a stud finder(not included)to locate and lineup the holes with your stud center wood studs.
-
Page 7: Step 3 Tighten Nuts
Step 3 Tighten Nuts Adjust the tilting angle with the Allen wrench for both 02. TV Bracket Step 4 Hang the TV onto the wall plate Tilt adjustment Locking...
