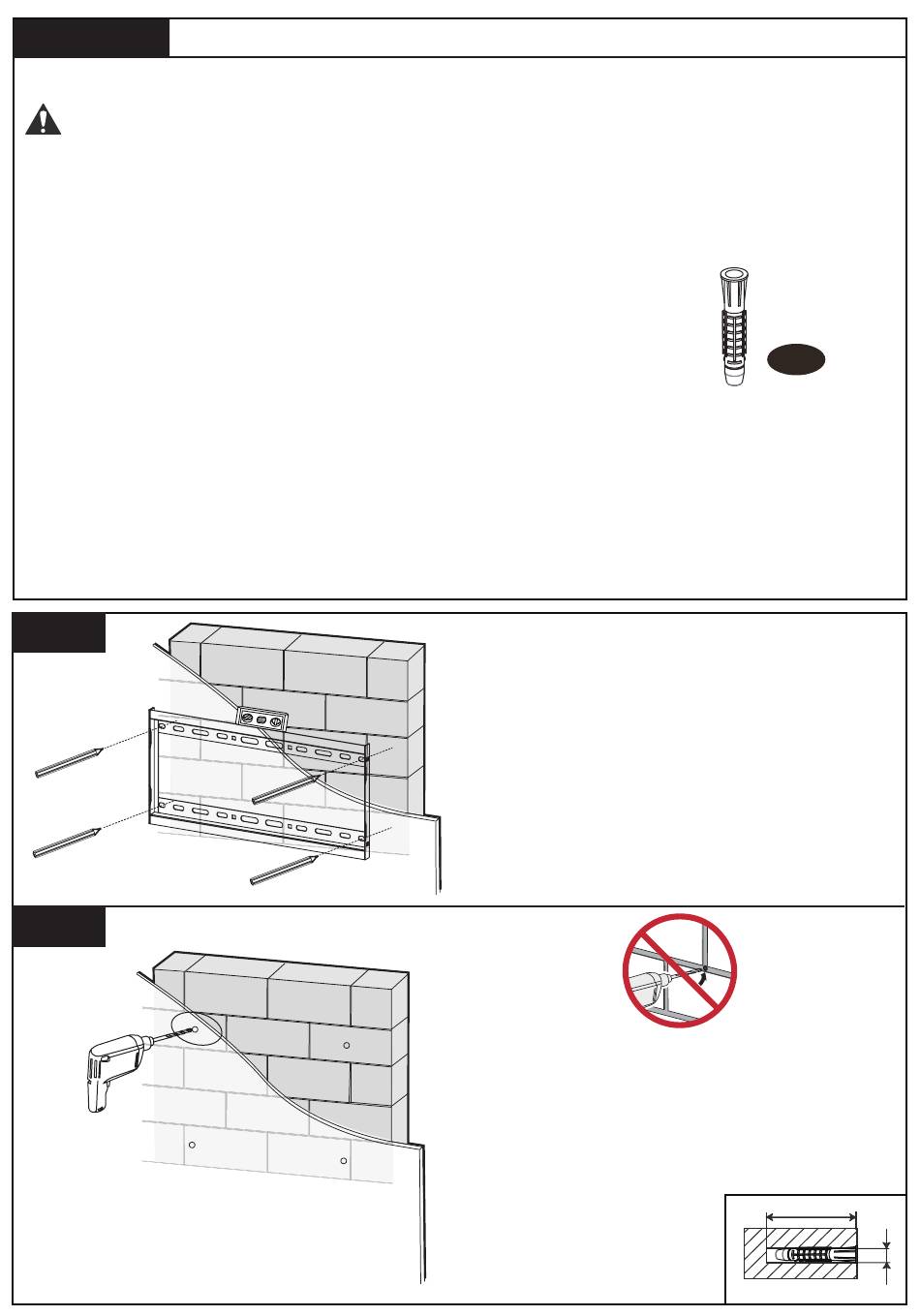

Step 4B Solid Concrete or Concrete Block Option
WARNING:
● Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts
[A]. Tighten the lag bolts [A] only until they are pulled firmly against the wall plate [01].
●Ensure the wall plate[01] is securely fastened to the wall before
continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
4B-1
4B-2
Position the wall plate[01] at your
desired height, level the wall plate and
mark the pilot hole locations.
Drill 4 pilot holes using a 10mm diameter
drill bit. Make sure the depth is not less
than 60mm. Never drill into the mortar
between blocks.
6
Wall
Anchor
B
60mm
ø10mm
