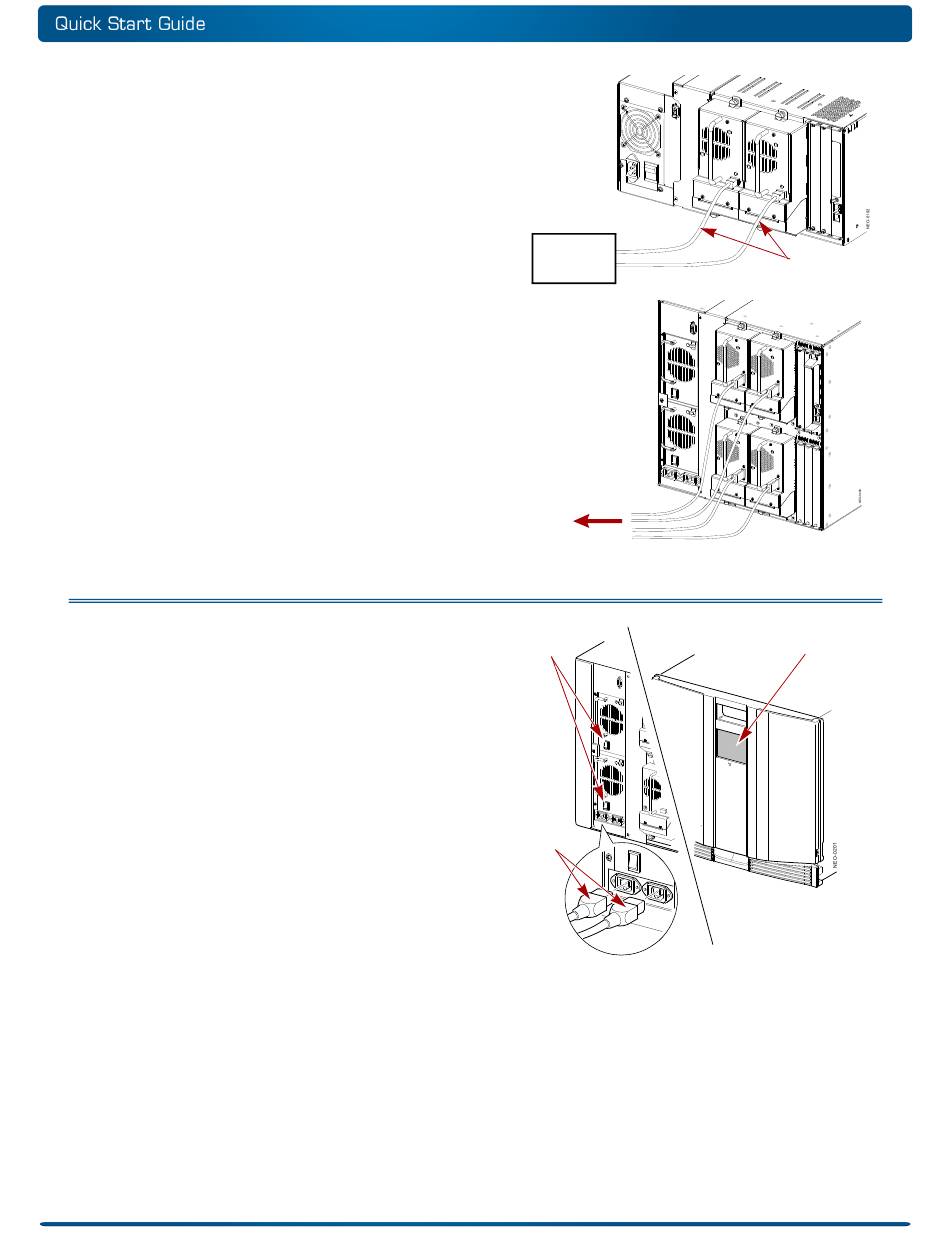

Fibre Channel Example

When using Fibre Channel (FC) drives on an FC network, slightly
different cabling is required. In this example, the FC drives
connect directly to an FC switch or Host Bus Adapter (HBA).
SAS Example
SAS connections can be part of a multi-wire cable or each drive
can be connected by a separate cable to the host.

Step 4: Power Up the Library

NOTE: The NEO 2000e has one power supply and cord while the NEO
4000e comes with dual power supplies and two cords.
1. Connect the supplied power cords to AC receptacles located
on the back of the library module.
2. Toggle the power switches to the ON position ("|").
3. Touch the front panel touch screen to activate the display
and turn on the library module.
10400198-004 03/2011
HBA or Fibre
Switch
To Host
Power Supply
Switches
Power Cords
©2010-11 Overland Storage, Inc.
To Host
Touch Screen
Page 4 of 8
