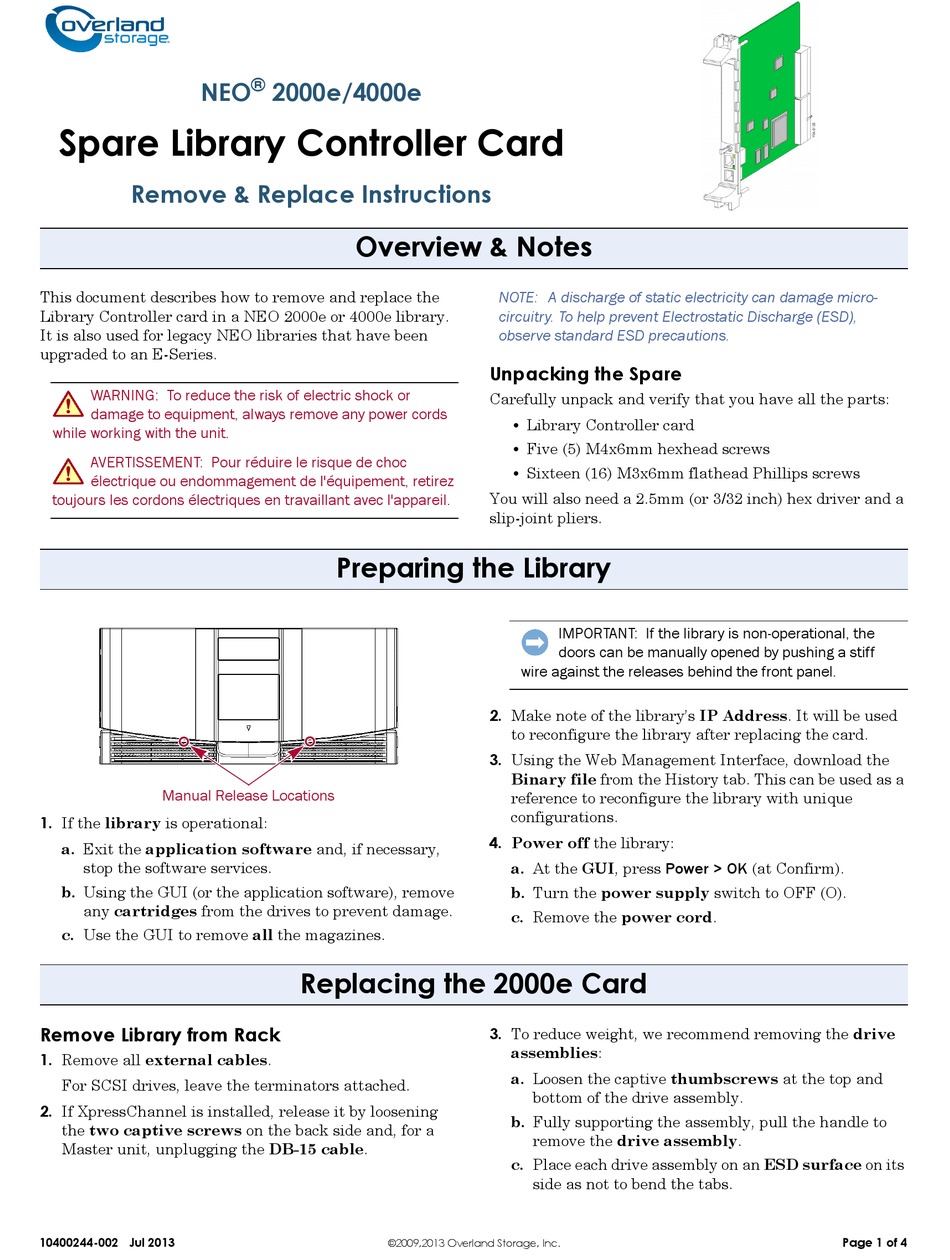

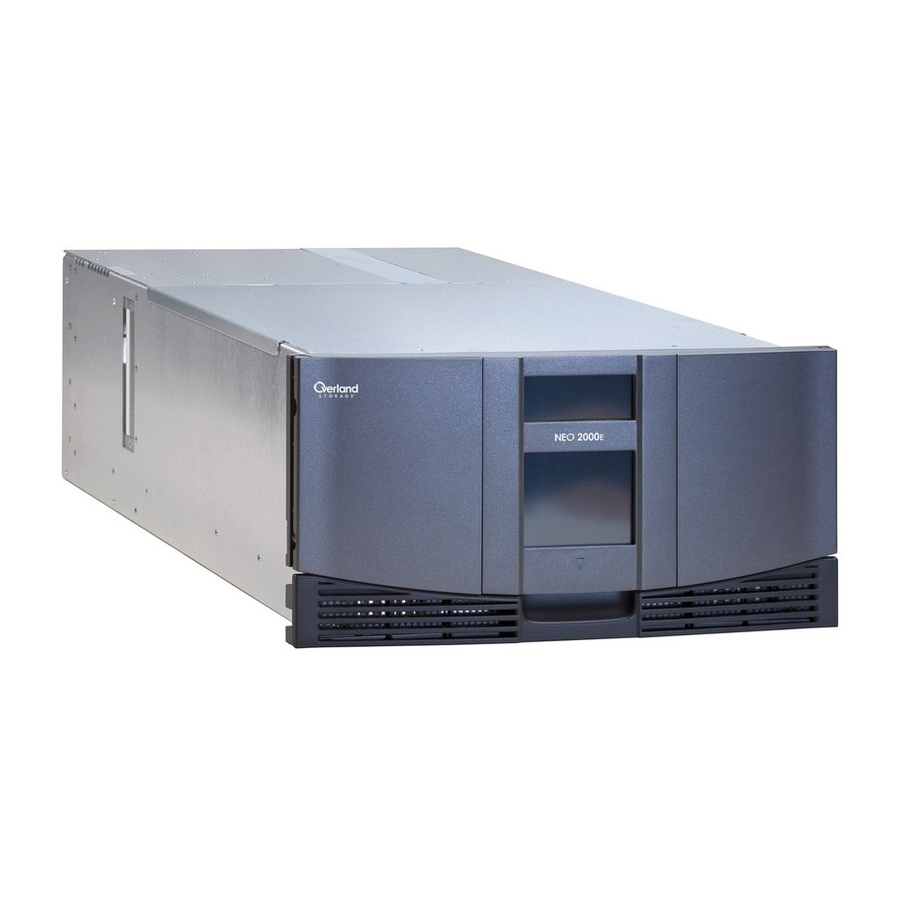

Overland Storage NEO 2000e Remove & Replace Instructions

NEO
Spare Library Controller Card
Remove & Replace Instructions
This document describes how to remove and replace the
Library Controller card in a NEO 2000e or 4000e library.
It is also used for legacy NEO libraries that have been
upgraded to an E-Series.
WARNING: To reduce the risk of electric shock or
damage to equipment, always remove any power cords
while working with the unit.
AVERTISSEMENT: Pour réduire le risque de choc
électrique ou endommagement de l'équipement, retirez
toujours les cordons électriques en travaillant avec l'appareil.
Manual Release Locations
1. If the library is operational:
a. Exit the application software and, if necessary,
stop the software services.
b. Using the GUI (or the application software), remove
any cartridges from the drives to prevent damage.
c. Use the GUI to remove all the magazines.
Remove Library from Rack
1. Remove all external cables.
For SCSI drives, leave the terminators attached.
2. If XpressChannel is installed, release it by loosening
the two captive screws on the back side and, for a
Master unit, unplugging the DB-15 cable.
10400244-002 Jul 2013
®
2000e/4000e
Overview & Notes
Preparing the Library
Replacing the 2000e Card
©2009,2013 Overland Storage, Inc.
NOTE: A discharge of static electricity can damage micro-
circuitry. To help prevent Electrostatic Discharge (ESD),
observe standard ESD precautions.
Unpacking the Spare
Carefully unpack and verify that you have all the parts:
• Library Controller card
• Five (5) M4x6mm hexhead screws
• Sixteen (16) M3x6mm flathead Phillips screws
You will also need a 2.5mm (or 3/32 inch) hex driver and a
slip-joint pliers.
IMPORTANT: If the library is non-operational, the
doors can be manually opened by pushing a stiff
wire against the releases behind the front panel.
2. Make note of the library's IP Address. It will be used
to reconfigure the library after replacing the card.
3. Using the Web Management Interface, download the
Binary file from the History tab. This can be used as a
reference to reconfigure the library with unique
configurations.
4. Power off the library:
a. At the GUI, press Power > OK (at Confirm).
b. Turn the power supply switch to OFF (O).
c. Remove the power cord.
3. To reduce weight, we recommend removing the drive
assemblies:
a. Loosen the captive thumbscrews at the top and
bottom of the drive assembly.
b. Fully supporting the assembly, pull the handle to
remove the drive assembly.
c. Place each drive assembly on an ESD surface on its
side as not to bend the tabs.
Page 1 of 4

