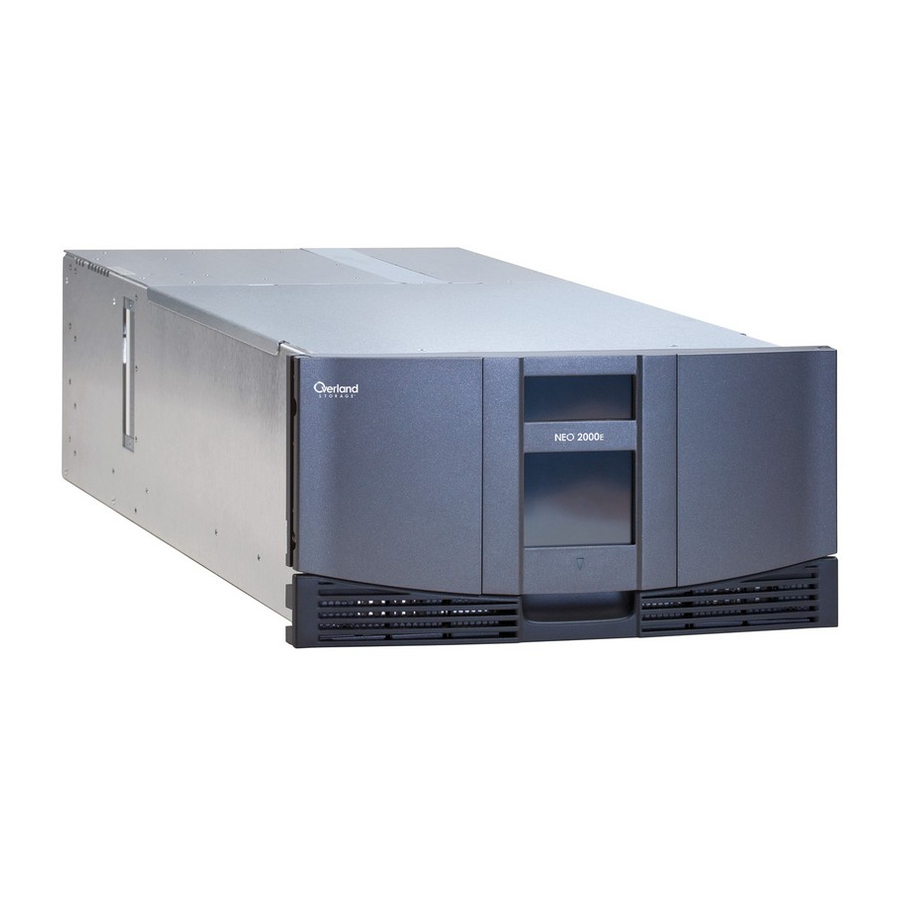

Overland Storage NEO 2000E Remove & Replace Instructions

NEO
Spare Shuttle Assembly
Remove & Replace Instructions
IMPORTANT: Overland Storage requires that all NEO
Series parts be removed and replaced by an Overland
Storage authorized service provider. Improper installation may
result in damage which voids existing warranties.
This document describes how to remove and replace the
shuttle assembly in an Overland Storage NEO 2000
4000 library.
E
WARNING: The GUI touch screen does not completely
shut off NEO SERIES system power. To reduce the risk
of electric shock or damage, unplug both power cords.
WARNING: It is recommended that a mechanical lifter
(or at least two people) be used to prevent injury during
rack installation or removal.
1. If the library is operational, remove any cartridges in
the drives using the touch-screen GUI or WebTLC.
2. Power off the library as follows:
a. Use the touch-screen GUI to power down the library.
b. Turn the power supply switches to OFF (O).
c. Remove the power cords.
1. Remove and retain the two screws securing the front
top cover.
2. Lift and remove the front top cover, and set it aside.
3. Remove the Power and Signal Controller cables
from the shuttle assembly by releasing them from the
two clips that secure them to the printed circuit board
(PCB) on the shuttle (Figure
NOTE: The Signal Controller connector can be difficult to
reach with your hand. If necessary, use a small flat blade
screwdriver to press the connector release.
Part Number 10400209-102 01/2009
®
2000 / 4000
E
Overview & Notes
Preparing the Library
Remove the Existing Shuttle Assembly
1).
©2008,2009 Overland Storage, Inc.
E
NOTE: All positions stated (left, right, etc.) are with you facing
the front of the library.
Unpacking the New Shuttle Assembly
Carefully unpack and verify that you have all the parts:
• Shuttle assembly in an anti-static bag
• These instructions
or
E
To service the library, you may need the following tools:
• Flat blade screwdriver
• #1 and #2 Phillips screwdrivers
Electrostatic Discharge Information
A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent Electrostatic
Discharge (ESD), observe standard ESD precautions.
3. Remove all data cables.
4. Remove all drive assemblies.
5. Using a mechanical lifter (or two people), remove the
library from the rack and place it on a secure surface.
Signal
Controller
Cable
Power
Cable

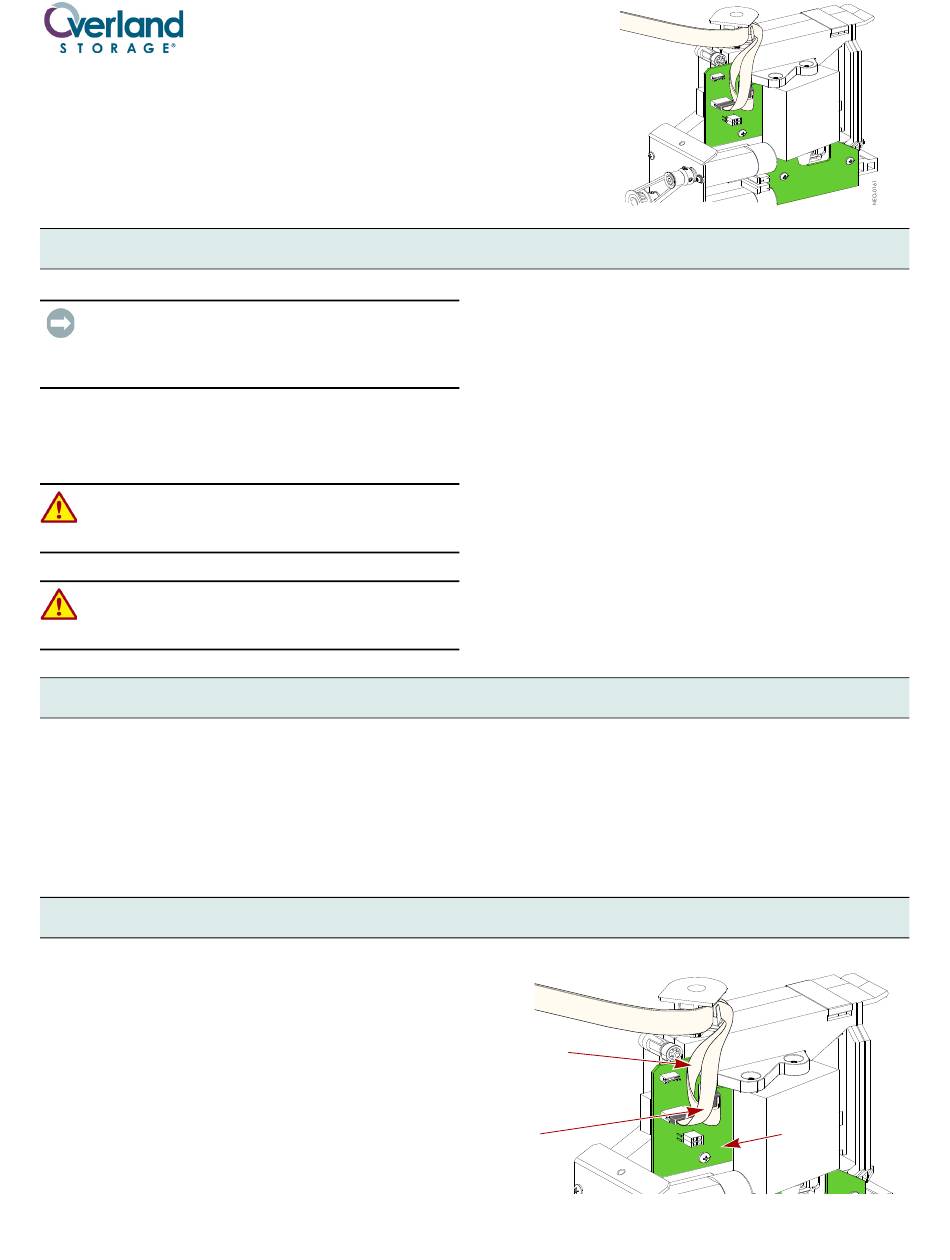

Figure 1. Front View of Shuttle Cables
Shuttle
PCB
Page 1 of 4
