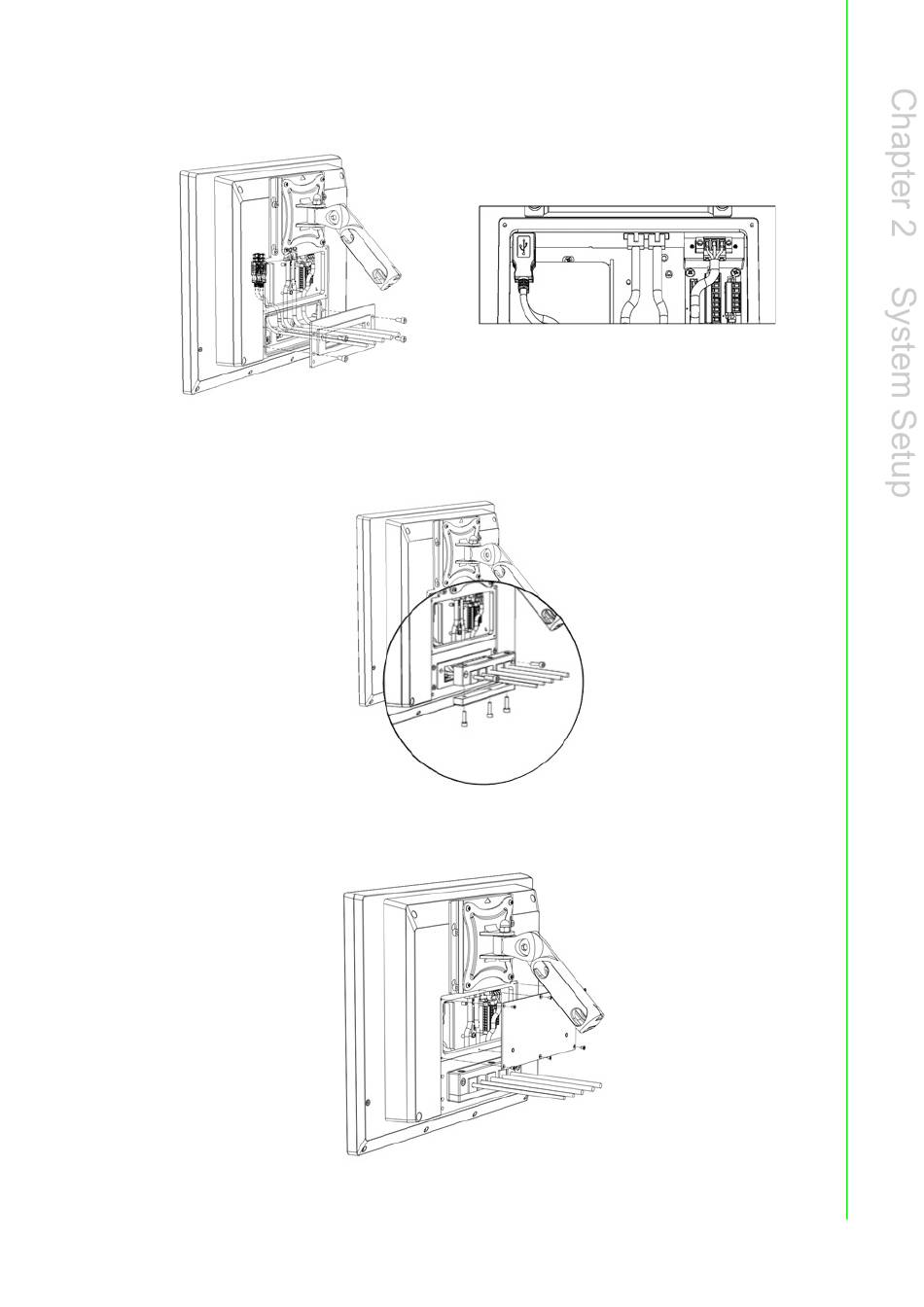

5.
Arrange the cables through the opening of the cover and fix the cover by M5 x
4pcs screws.
6.
Fix the cables in the entry frame by 3pcs M5 screws and fix the entry to body by
2pcs M5 screws.
7.
Fix the cover to body by 6pcs M3 screws.
29
SPC-800(M) User Manual
