- Page 1 User Manual FPM-3121G/3151G/ 3171G/3191G 顯示器 12"XGA/15" XGA/17" SXGA/ 19”SXGA Industrial LED Monitor with Resistive Touchscreen, Direct- VGA, DVI Ports and DC24 V Input...
- Page 2 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：顯示器 型號 （型式） ： FPM‐3151G‐R3BE ( 系列型號請參見 iv 頁說明書 ) Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元Ｕ nit Hexavalent Polybrominated Polybrominated 鉛 Lead 汞...
- Page 3 設備名稱：顯示器 型號 （型式） ： FPM‐3191G‐R3BE ( 系列型號請參見 iv 頁說明書 ) Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元Ｕ nit Hexavalent Polybrominated Polybrominated 鉛 Lead 汞 Mercury 鎘 Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE)
- Page 4 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 5: Declaration Of Conformity
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. -
Page 6: Technical Support And Assistance
Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –... -
Page 7: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 8 安全指示 1. 請仔細閱讀此安全操作說明。 2. 請妥善保存此用戶手冊供日後參考。 3. 用濕抹布清洗設備前，請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設備。 4. 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。 5. 請勿在潮濕環境中試用設備。 6. 請在安裝前確保設備放置在可靠的平面上，意外摔落可能會導致設備損壞。 7. 設備機殼的開孔適用於空氣對，從而防止設備過熱。請勿覆蓋開孔。 8. 當您連接設備到電源插座前，請確認電源插座的電壓符合要求。 9. 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。 10. 請注意設備上所有的警告標示。 11. 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電壓波動損 壞。 12. 請勿讓任何液體流入通風口，以免引起火灾或短路。 13. 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設備。 14. 如遇下列情况，請由專業人員維修： 電源線或插頭損壞； 設備內部有液體流入； 設備曾暴露在過度潮濕環境中使用； 設備無法正常工作，或您無法透過用戶手冊來正常工作； 設備摔落或損壞； ...
-
Page 9: Table Of Contents
..........11 Mounting the Monitor ................12 2.1.1 Wall Mounting with FPM-1000T-SMKE ........12 Figure 2.1 Wall Mounting for FPM-3121G/3151G ..... 12 Figure 2.2 Wall Mounting for FPM-3171G/3191G ..... 13 2.1.2 Panel Mounting ................14 Figure 2.3 Panel Mounting (392 x 292 mm) ......14 Figure 2.4 Panel Mounting (447.2 x 329.2mm) ...... - Page 10 A.2.12 Exit Menu..................37 A.2.13 Hot Keys ..................38 Appendix B Setting Serial Data for Expansion ... 39 Setting Serial Data for Expansion ............40 Touch screen RS232 Connector Pin Definition ........41 FPM-3000G Series User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information Sections include: Introduction Specifications LCD Specification Power Consumption Connectors Dimensions... -
Page 12: Introduction

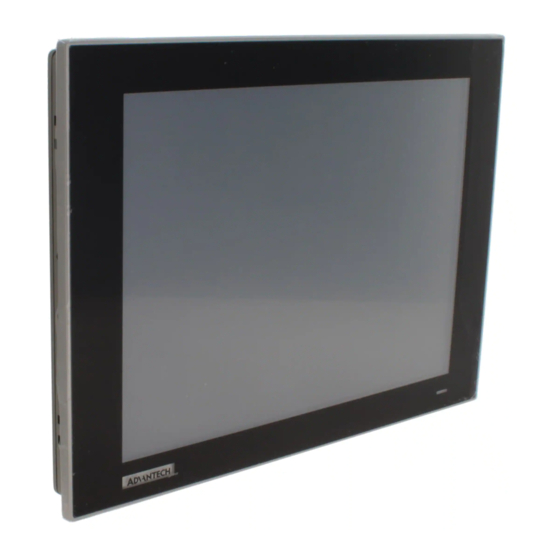

Introduction Advantech's FPM-3000G is a 12"/15”/17”/19" color TFT LED flat panel monitor built specifically for industrial applications. With the optional touchscreen, FPM-3000 is an excellent and user-friendly system control interface. In addition to its usual application as an LCD panel monitor, FPM-3000G comes standard with direct VGA/DVI signal inputs, making it compatible with Industrial PCs and Workstations. -
Page 13: Lcd Specifications
LCD Specifications FPM-3121G Display Type: XGA TFT LCD Display Size: 12.1" Max. Colors: 16.2M Max. Resolution: 1024 x 768 Viewing Angle: 140(V), 160(H) Luminance: 600 cd/m Storage Temperature: -40 ~ 85°C Operating Temperature: -30 ~ 80°C ... -
Page 14: Power Consumption
Please refer to system specification for operating & storage tempera- tures Power Consumption Max Power consumption: – FPM-3121G: 15 W ± 20% – FPM-3151G: 12 W ± 20% – FPM-3171G: 23 W ± 20% – FPM-3191G: 18 W ± 20% ... - Page 15 Touchscreen Connector (USB) This connector will be present only if a touchscreen is installed. It must be con- nected to the USB port of the PC. The touchscreen cable is included with all orders which include the USB touchscreen option. Note! RS-232 &...
-
Page 16: Dimensions
Dimensions 4.75 7.50 8.49 4.75 43.50 7.50 91.50 Figure 1.1 FPM-3121G Dimensions FPM-3000G Series User Manual... -
Page 17: Figure 1.2 Fpm-3151G Dimensions
Figure 1.2 FPM-3151G Dimensions FPM-3000G Series User Manual... -
Page 18: Figure 1.3 Fpm-3171G Dimensions
Figure 1.3 FPM-3171G Dimensions FPM-3000G Series User Manual... -
Page 19: Figure 1.4 Fpm-3191G Dimensions
Figure 1.4 FPM-3191G Dimensions FPM-3000G Series User Manual... -
Page 20: Io View
IO View FPM-3000G Series User Manual... -
Page 21: Chapter 2 Mounting
Chapter Mounting Wall Mounting Panel Mounting Desktop Mounting Swing Arm Mounting... -
Page 22: Mounting The Monitor
Wall Mounting with FPM-1000T-SMKE The FPM-3000G can be mounted directly on a wall with panel mounting brackets. Please refer to Figure 2.1 and follow the following steps to mount FPM-3000G on a wall: Figure 2.1 Wall Mounting for FPM-3121G/3151G FPM-3000G Series User Manual... -
Page 23: Figure 2.2 Wall Mounting For Fpm-3171G/3191G
Wall Mounting for FPM-3171G/3191G With wall brackets, the FPM-3171G/3191G can be mounted directly to a wall. If you need to install the FPM-3171G/3191G in different ways, release the mounting brack- ets by detaching the four screws on the rear side. Figure 2.2 Wall Mounting for FPM-3171G/3191G FPM-3000G Series User Manual... -
Page 24: Panel Mounting
2.1.2 Panel Mounting If you need to install the FPM-3000G series in a panel, release the mounting brackets by detaching four screws on rear side and fix them on the top and bottom with screws. Figure 2.3 Panel Mounting (392 x 292 mm) FPM-3000G Series User Manual... -
Page 25: Figure 2.4 Panel Mounting (447.2 X 329.2Mm)
Panel Mounting FPM-3171G If you need to install the FPM-3171 series on a panel mount, release the mounting brackets by detaching four screws on rear side and fix them on up and bottom side by screws. Figure 2.4 Panel Mounting (447.2 x 329.2mm) Panel Mounting FPM-3191G If you need to install the FPM-3191 series on a panel mount, release the mounting brackets by detaching four screws on rear side and fix them on up and bottom side... -
Page 26: Vesa Mount For Fpm-3000G
VESA Mount for FPM-3000G 2.1.3.1 Desk top stand with FPM-1000T-SMKE Kit The FPM-3000G can be mounted as a stand on the desk by additional mounting brackets. See figure 2.6 below for reference. Figure 2.6 Desktop Stand for FPM-3121G/3151G FPM-3000G Series User Manual... -
Page 27: Figure 2.7 Desktop Stand For Fpm-3171G
The desktop stand brackets are attached to the rear of FPM-3171. Figure 2.7 Desktop Stand for FPM-3171G The desktop stand brackets are attached to the rear of FPM-3191. Figure 2.8 Desktop Stand for FPM-3191G FPM-3000G Series User Manual... -
Page 28: Figure 2.9 Vesa Mount For Fpm-3121G
2.9 ~ 2.12 all FPM-3000 support both VESA 75 x 75 mm & 100 x100 mm. Warning! Use suitable mounting apparatus to avoid risk of injury. ATTENTION: Veuillez utiliser un système de montage approprié afin d'éviter tout risque de blessure. Figure 2.9 VESA mount for FPM-3121G FPM-3000G Series User Manual... -
Page 29: Figure 2.10Vesa Mount For Fpm-3151G
Figure 2.10 VESA mount for FPM-3151G Figure 2.11 VESA mount for FPM-3171G FPM-3000G Series User Manual... -
Page 30: Figure 2.12Vesa Mount For Fpm-3191G
Figure 2.12 VESA mount for FPM-3191G FPM-3000G Series User Manual... -
Page 31: Rack Mounting
2.1.4 Rack Mounting The FPM-3171G and FPM-3191G products can be directly mounted in an industrial standard 19" rack. There are four screw holes on each side of the panel. Figure 2.13 Rack Mounting for FPM-3171G/FPM-3191G FPM-3000G Series User Manual... - Page 32 FPM-3000G Series User Manual...
-
Page 33: Appendix Aosd Operation Keypad
Appendix OSD Operation Keypad... -
Page 34: Osd Board Overview (Fpm-31Xxg)
OSD Board Overview (FPM-31xxG) The OSD keypad, including six keys and a two color indicator, is designed as the OSD operation interface. A.1.1 OSD Button Description Buttons Descriptions Power Turn the monitor power ON or OFF. Automatically adjust the clock, phase, H-position and Auto/Exit V-position. -
Page 35: Osd Key Functions
OSD Key Functions Each selected value is stored into LCD memory after SEL signal input or time out. The stored values are not affected if the power is turned off. But the selected value is not available in case a selected mode is changed before time out or power is turned off before time out. -
Page 36: Input Source Select
A.2.2 Input Source Select Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 37: Contrast/ Brightness Setting
A.2.3 Contrast/ Brightness Setting Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 38: Geometry Menu - For Dvi Input
A.2.4 Geometry Menu – For DVI Input Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 39: Color Temperature Menu
A.2.5 Color Temperature Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 40: Rgb Color Menu
A.2.6 RGB Color Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Select by Left and Right Button, Press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN ... - Page 41 Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. Return to last menu Select to confirm Increase the gauge value of the selected option. Customization setting for RGB colors FPM-3000G Series User Manual...
-
Page 42: Language Menu
A.2.7 Language Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 43: Osd Manager
A.2.8 OSD Manager Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 44: Auto Configuration Menu
A.2.9 Auto Configuration Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 45: A.2.10Mode Information Menu
A.2.10Mode Information Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 46: Memory Recall Menu
A.2.11 Memory Recall Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 47: A.2.12Exit Menu
A.2.12Exit Menu Generate Main Menu Select by Left and Right Button, press Menu Button for selection confirmation. Main Menu -- DISPLAY IN SCREEN Sub-Menu – DISPLAY IN SCREEN Available Key Functions Decrease the gauge value of Power Off the LCD Monitor the selected option. -
Page 48: Hot Keys
A.2.13Hot Keys OSD LOCK/UNLOCK HOT KEYS Press first then press for change this setting, Followed this sequence for the button press so that you can have OSD LOCK and UNLOCK setting Enter OSD LOCK MODE Press HOT KEY, the screen will show this action first Don’t remove the HOT KEY until the screen indicated this task is finished. -
Page 49: Appendix B Setting Serial Data For Expansion
Appendix Setting Serial Data for Expansion... -
Page 50: Setting Serial Data For Expansion
Setting Serial Data for Expansion The several timings below are already programmed in this module. The input synchronous signals are automatically recognized. FPM-3121G-R3BE Resolution HSYNC /KHz (+/-) VSYNC /Hz (+/-) PIXEL RATE /MHz IBM, 720 * 400 31.469 70.087 28.322 VESA 640 * 480 31.469... -
Page 51: Touch Screen Rs232 Connector Pin Definition
Note! Even if the preset timing is entered, a little adjustment of the functions such as Horizontal period, CLK-delay and display position, are required. The adjusted values are memorized in every preset number. Note! This module recognizes the synchronous signals with near preset timing of the frequency of the HS and Vsync, even in the case that the signals other than the preset timing that were entered. - Page 52 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
