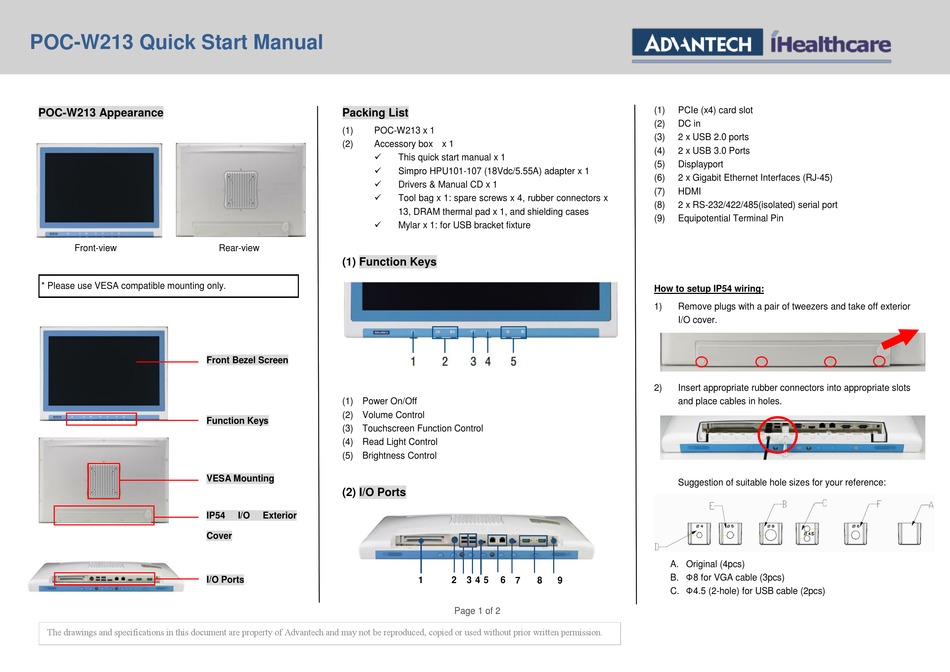

POC-W213 Quick Start Manual
POC-W213 Appearance
Front-view
* Please use VESA compatible mounting only.
Front Bezel Screen
Function Keys
VESA Mounting
\
IP54
Cover
I/O Ports
The drawings and specifications in this document are property of Advantech and may not be reproduced, copied or used without prior written permission.
Packing List
(1) POC-W213 x 1
(2) Accessory box x 1





Rear-view
(1) Function Keys
(1) Power On/Off
(2) Volume Control
(3) Touchscreen Function Control
(4) Read Light Control
(5) Brightness Control
(2) I/O Ports
I/O Exterior
This quick start manual x 1
Simpro HPU101-107 (18Vdc/5.55A) adapter x 1
Drivers & Manual CD x 1
Tool bag x 1: spare screws x 4, rubber connectors x
13, DRAM thermal pad x 1, and shielding cases
Mylar x 1: for USB bracket fixture
1 2 3 4 5 6 7 8 9
Page 1 of 2
(1) PCIe (x4) card slot
(2) DC in
(3) 2 x USB 2.0 ports
(4) 2 x USB 3.0 Ports
(5) Displayport
(6) 2 x Gigabit Ethernet Interfaces (RJ-45)
(7) HDMI
(8) 2 x RS-232/422/485(isolated) serial port
(9) Equipotential Terminal Pin
How to setup IP54 wiring:
1) Remove plugs with a pair of tweezers and take off exterior
I/O cover.
2) Insert appropriate rubber connectors into appropriate slots
and place cables in holes.
Suggestion of suitable hole sizes for your reference:
A. Original (4pcs)
B. Φ8 for VGA cable (3pcs)
C. Φ4.5 (2-hole) for USB cable (2pcs)
