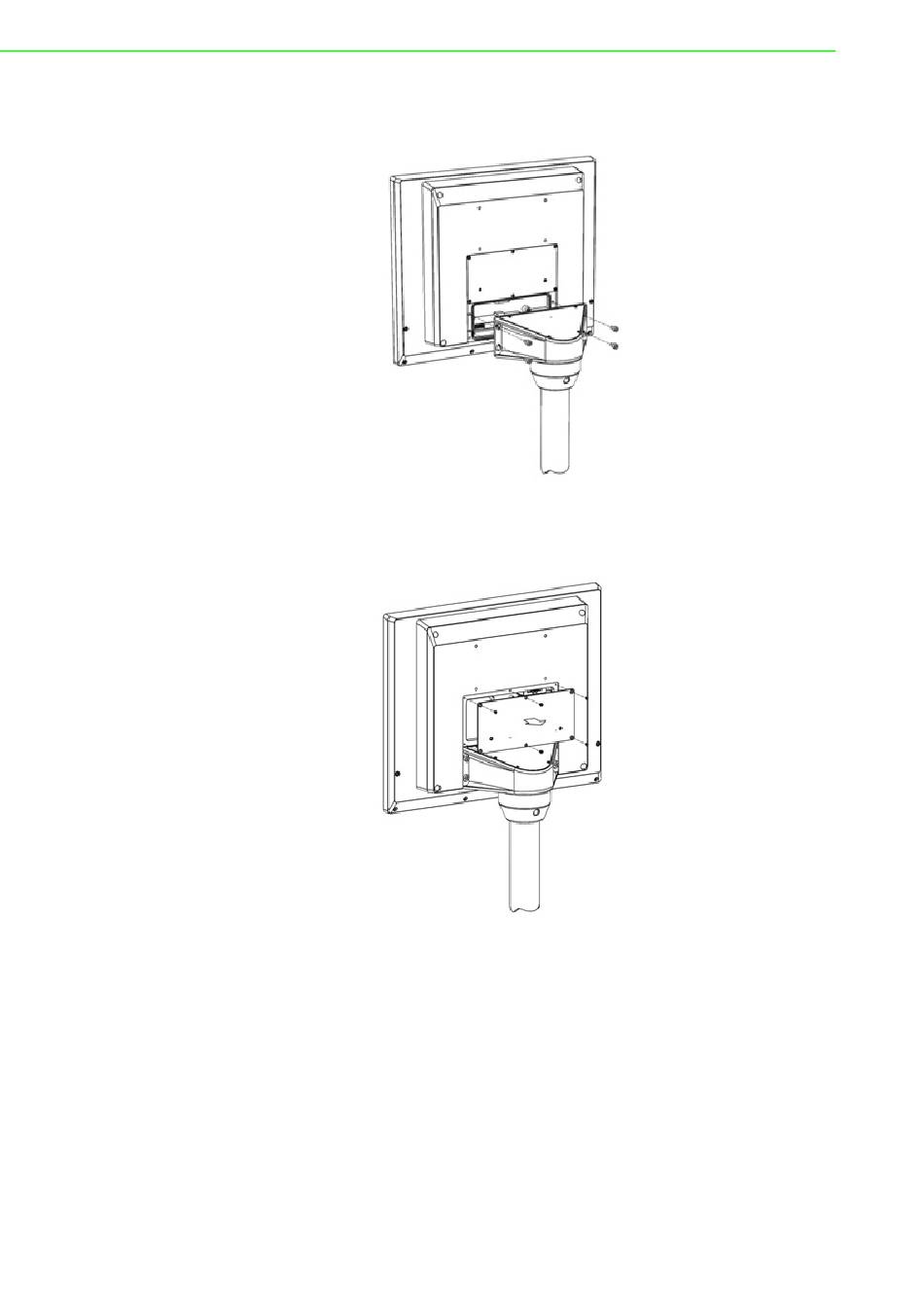

Attach the device with M5x 4pcs screws to the IO from back side. Make sure

that the connection cables whether put into the pole mount.

Installation Procedure (Pendant and Pedestal mounting)

Loosen the M5 x 4pcs screws from IO (Pedestal mount)

SPC-800(M) User Manual
