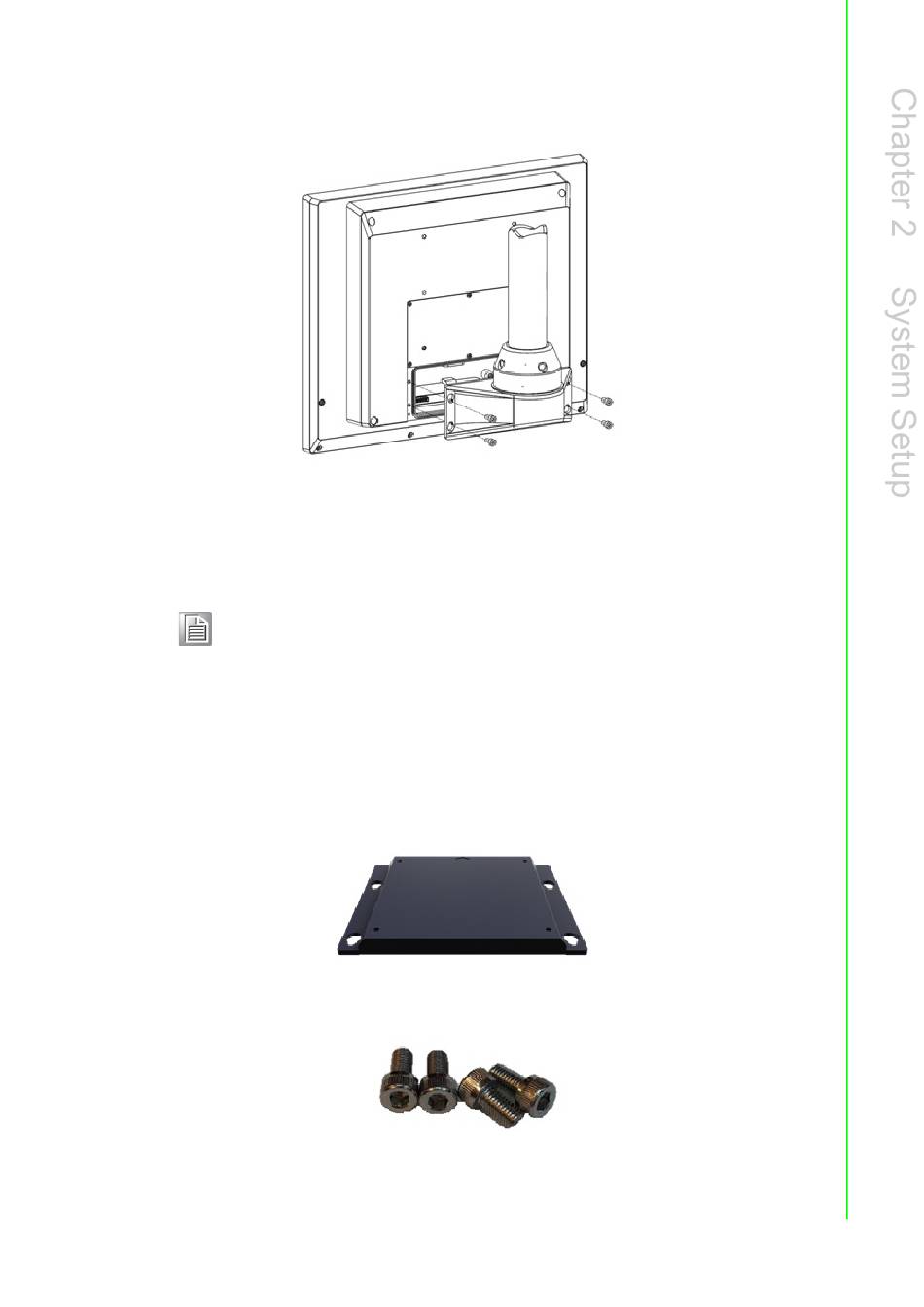

2. Attach the device with M5x 4pcs screws to the IO from the back side. Make sure
that the connection cables whether put into the Pendant mount.
2.3.2 SPC-800(M)/BOR-DE1000 Series device for support VESA
Mounting
Note! Base Unit Product accessory without a VESA mounting and Cable
Entry
The SPC-800(M) & BOR-DE1000 series devices are designed for
mounting with the base cover IO. If you install the device with a VESA
mounting, you must use 100 x100 standard VESA compliant hole to
allow wall and accessory mounting option and can purchase the cable
suitable for you through Advantech Entry
Requirement
VESA Kit x 1pc

VESA Screw x 4pcs

25 SPC-800(M) User Manual
