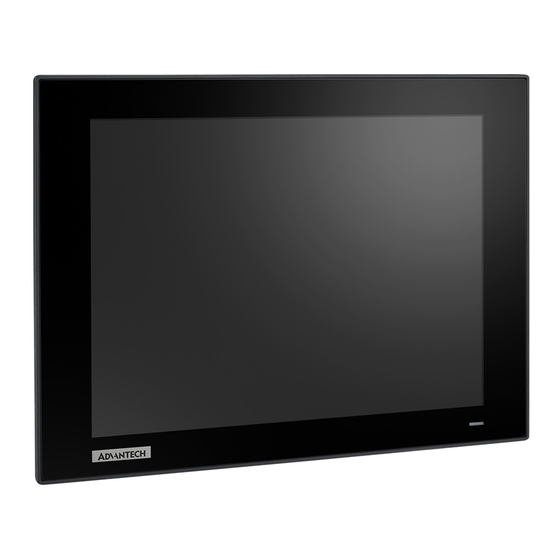

- Page 1 Startup Manual FPM-D Series FPM-D12T-CE, FPM-D12T-HE FPM-D15T-CE, FPM-D15T-HE FPM-D15W-FCE, FPM-D15W-FHE, FPM-D17T-CE, FPM-D18W-FCE, FPM-D19T-CE, FPM-D21W-CE, FPM-D21W-HE, FPM-D24W-CE...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Install FPM and TPC products ..1 Confirm your TPC and FPM Products ....錯誤! 尚未定義書籤。 FPM 12” Products and TPC ..............2 FPM 15” & Above Products and TPC Installation ........7 Chapter 2 LED Status Indicator ...... -
Page 3: Install Fpm And Tpc Products
Chapter Install FPM and TPC products TPC-B300 使用手冊... -
Page 4: Confirm Your Tpc And Fpm Products
Confirm your TPC and FPM Products FPM products are equipped with positioning pillars for the convenience of user instal- lation, allowing customers to confirm the correct installation position before securing with a screwdriver. However, due to differences between the TPC-B600 series and other series such as TPC-B200, TPC-B300, TPC-B500, etc., customers may need to manually adjust. - Page 5 1.2.2 Secure TPC and FPM 12” Use the screws provided in the accessory box to securely attach your FPM and TPC products. In Picture 1.2 ,1.3 and 1.4, the red guide lines indicate the positions of the five screws used for fastening FPM and TPC Picture 1.2 TPC-B300 Installation Picture 1.3 TPC-B510 Installation TPC-B300 使用手冊...
-
Page 6: Fpm 15" & Above Products And Tpc Installation
Picture 1.4 TPC-B520 Installation FPM 15” & Above Products and TPC Installation 1.3.1 FPM 15” & Above Positioning Pillars If the FPM you purchased is larger than 15" and is paired with TPC products from the TPC- B200/B300/B500 series, the default positioning pillars of FPM do not need to be changed. However, if you are switching from the TPC-B600 series to another series, you need to confirm whether the positioning pillar positions match those marked in red boxes as shown in Picture 1.4. - Page 7 as shown in Picture 1.5. Use a Phillips screwdriver to unscrew the positioning pillars coun- terclockwise, and then reposition them in the correct locations. Please refer to Picture 1.5, where the positioning pillars have already been moved to the correct positions. Picture 1.5 FPM-D15X &...
- Page 8 Picture 1.7 TPC-B510 Installation Picture 1.8 TPC-B520 Installation TPC-B300 使用手冊...
- Page 9 Picture 1.9 TPC-B610 Installation TPC-B300 使用手冊...
-
Page 10: Led Status Indicator
Chapter LED Status Indicator TPC-B300 使用手冊... -
Page 11: Led Status Indicator Light On The Fpm Display
LED status indicator light on the FPM display Table 2.1: LED Indicators Indicator Default Status (ErP Enable) Status 2 (ErP Disable) Green Normal Powered-On State Normal Powered-On State Orange Sleep (S3)/Hibernate (S4) Sleep (S3)/Hibernate (S4)/Shutdown(S5) Shutdown(S5)/Power Off Power Off TPC-B300 使用手冊... - Page 12 Chapter Panel Mount Installation TPC-B300 使用手冊...
-
Page 13: Panel Mount Installation
Panel Mount Installation The front panel is equipped with a waterproof gasket strip with adhesive on it. Before installing the TPC into the panel opening, please ensure that the waterproof gasket is fixed correctly. Place the TPC into the panel opening. Picture 3.1 Place FPM+TPC into the panel opening Take out the panel mounting kits from the accessory box and attach them to the fixed holes around the chassis. - Page 14 It is recommended to install the panel with a thickness less than 6 millimeters (0.236 inches). Picture 3.3 Panel Mounting Kit Installation Picture 3.4 Tighten with screw driver TPC-B300 使用手冊...
- Page 15 使用前請檢查核實產品的規格。本手冊僅作為參考。 產品規格如有變更，恕不另行通知。 未經研華股份有限公司書面許可，本手冊中的所有內容不得通過任何途徑以任何形式複 製、翻印、翻譯或者傳輸。 所有的產品品牌及產品型號均為各公司之註冊商標。 © Advantech Co., Ltd. 2023 TPC-B300 使用手冊...
