Secton 6 - Functon Tests and Operatng Instructons
ART_3258
ART_3260
ART_3258
Page 18
Steering

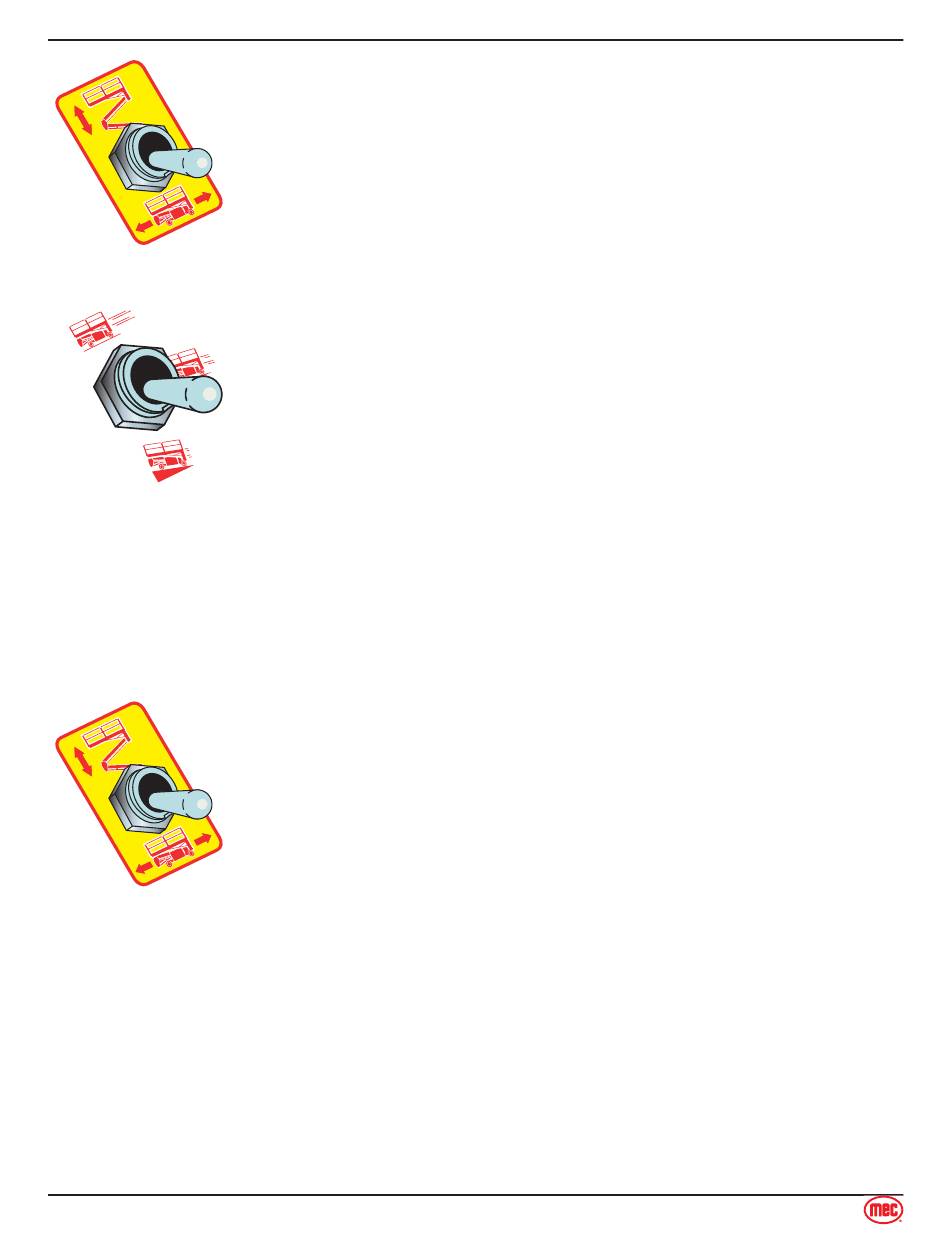

• Place the MODE SELECT switch in the DRIVE position.
• Squeeze the Enable Bar.
• Press the Steering Switch with your thumb to steer left or right.
Test Operation
• Releasing the Enable Bar or Steering Switch will stop steering function.
• The steer wheels do not automatically center after a turn. The steer
wheels must be returned to the straight-ahead position with the steering
switch.
Drive Torque (Speed Control)
Drive speed is selectable until the platform is elevated above 10 Feet (3 m).
When the platform is elevated the machine defaults to MID RANGE and the
switch is locked-out (non functioning).
• HIGH SPEED: allows speeds up to 3 m.p.h. (4.8 km/h).
• MID RANGE: allows speeds up to 0.4 m.p.h. (0.6 km/h).
• HIGH TORQUE: use to drive up or down a slope that is too steep for
normal speed.
Drive Forward
• Place the MODE SELECT switch in the DRIVE position.
• Squeeze the enable bar and move the joystick away from you.
Test Operation
• Drive speed is proportional and is dependent on the movement of the
joystick.
• Releasing the enable bar or returning the joystick to the center position
will stop drive.
• Pressing the EMERGENCY STOP switch will stop drive.
Drive Reverse
• Place the MODE SELECT switch in the DRIVE position.
• Squeeze the enable bar and move the joystick toward you.
Test Operation
• Drive speed is proportional and is dependent on the movement of the
joystick.
• Releasing the enable bar or returning the joystick to the center position
will stop drive.
• Pressing the EMERGENCY STOP switch will stop drive.
Brake
• For parking, the brake is automatically applied when the joystick is
positioned in the neutral (center) position.
