DC Version
•
Power Reserve: The S9705-48D uses two 1+1 redundant, active/active -48 voltage DC power
supply field replaceable units. To ensure the active/active feed power design functions
properly, it is recommended that the field has dual power circuits and has a reserve of at
least 1500 watt on each circuit.
•

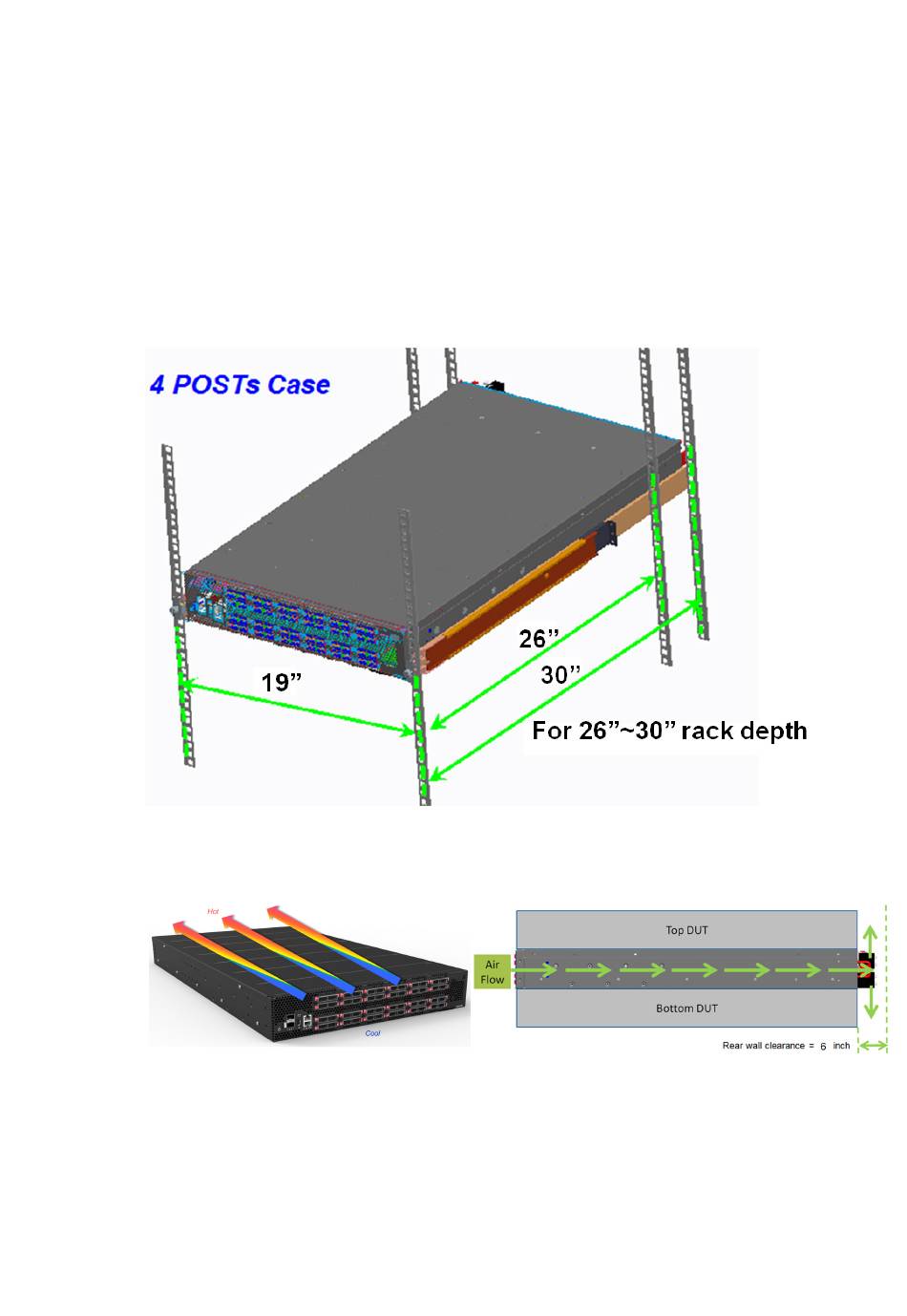

Space Clearance: The S9705-48D chassis width is 17.16 inches (43.6cm) and shipped with
rail rack kit and adjustable mounting rails suit for 19 inch (48.3cm) wide racks. The depth of
the S9705-48D chassis is 30 inches (76.2cm) without the field replaceable units (FRUs). The
handle of the fan FRU is 1 inch (2.5cm) and the handle of the PSU FRU is 1.5 inches (3.8cm).
A minimum space clearance of 6 inches (15.2cm) is required for the side with the fan FRUs
and PSU FRUs. A total minimum reserve depth for the cabinet is 36 inches (94.4cm).
•
Cooling: The S9705-48D airflow direction is front-to-back. Make sure the air flow is in the
same direction with other equipment in the same rack
