X axis motor and belt replacement
Hide thumbs
Also See for Cubify Cubex:
- Replacement manual (13 pages) ,
- Manual (10 pages) ,
- Manual (10 pages)
Table of Contents
Advertisement

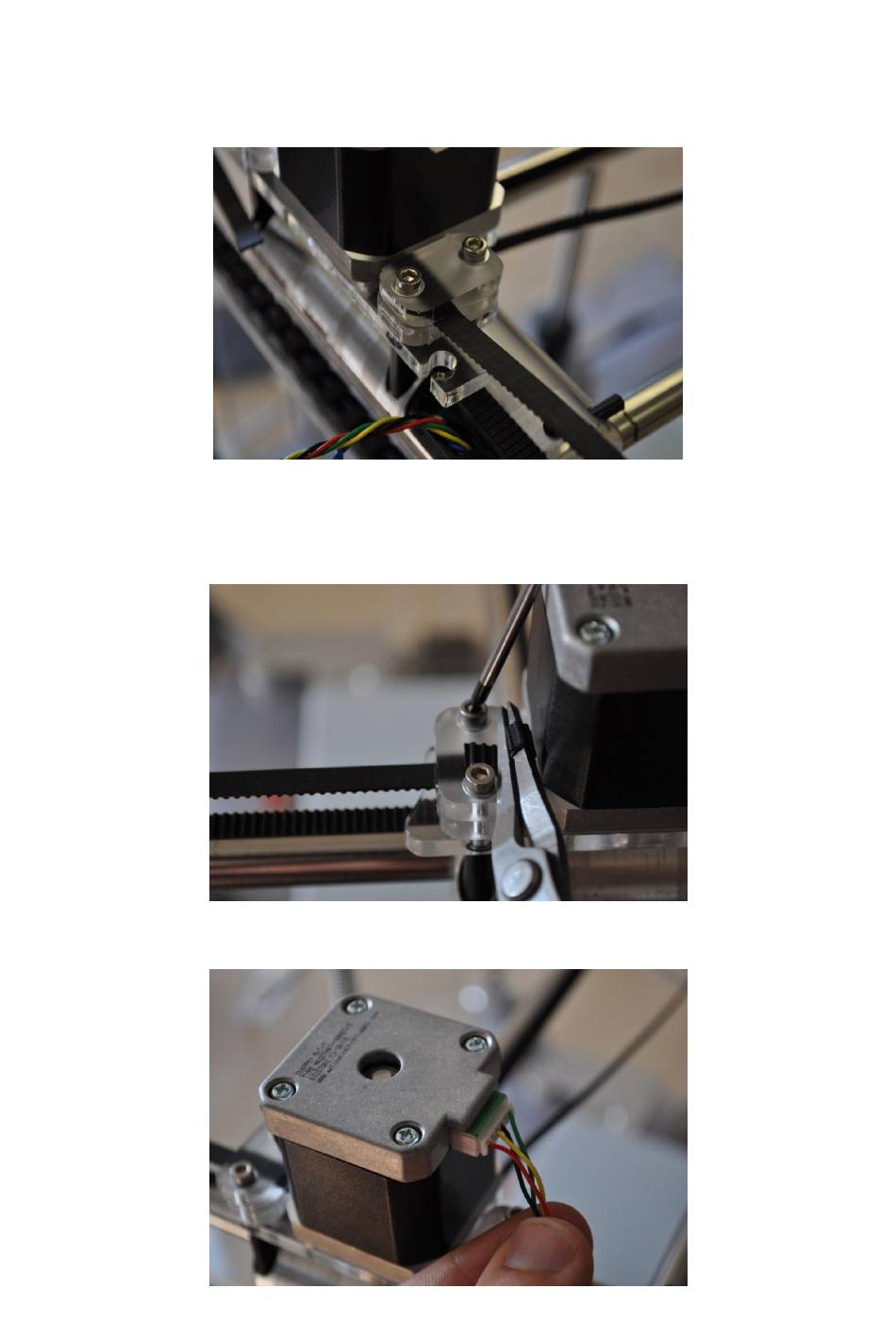

Fasten one side of the Y belt by placing it between the Y belt clamps and fastening
the two bolts. Apply equal pressure to each bolt to ensure the X motor mount stays
flat.
Pull the unfastened side of the Y belt through its corresponding clamp, pull it taught
with pliers and fasten the two bolts, again applying equal pressure to each bolt to
ensure the X motor mount stays flat.
Plug the X motor wire into the X motor
