Attaching the new X motor

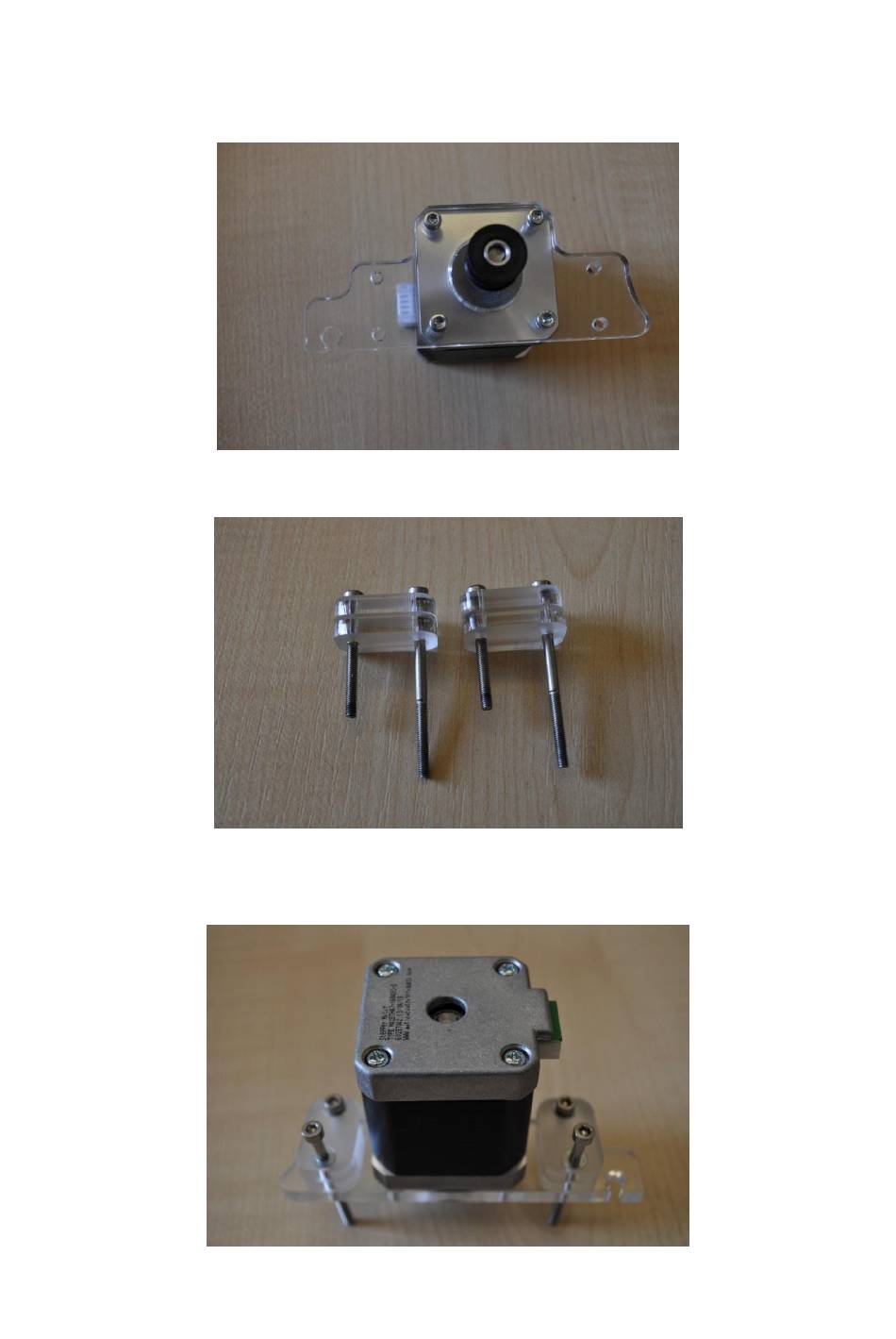

Attach the X motor mount to the X motor noting the orientation pictured.

Place one of each of the leftover bolts through the Y belt clamps.

Place the Y belt clamps either side of the X motor mount with the longer bolts at the

back of the mount as pictured.
