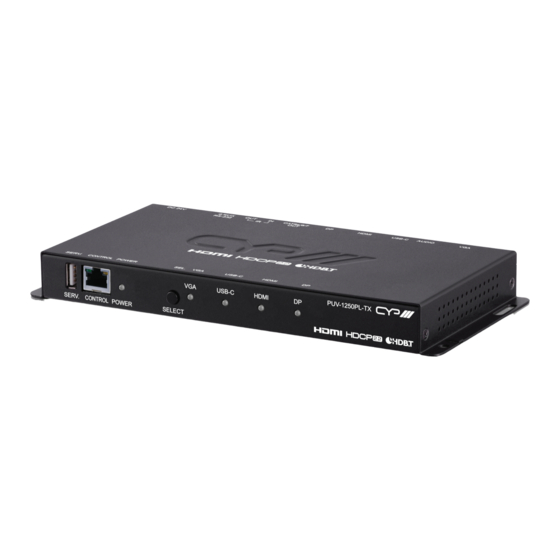

PUV-1250PL-TX
Multi-format 4K HDBaseT™ Transmitter with HDMI,
USB-C, DisplayPort & VGA Inputs plus USB-C charging
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1250PL-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP PUV-1250PL-TX

Summary of Contents for CYP PUV-1250PL-TX

  • Page 1 PUV-1250PL-TX Multi-format 4K HDBaseT™ Transmitter with HDMI, USB-C, DisplayPort & VGA Inputs plus USB-C charging OPERATION MANUAL...
  • Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ............. 9 6.3 IR Cable Pinouts ........11 6.4 RS-232 Pinout and Defaults ....11 6.5 WebGUI Control ........12 6.6 Telnet Control ..........23 6.7 RS-232 and Telnet Commands ....24...

  • Page 6: Introduction

    1. INTRODUCTION This 4x1 Multi-Format to HDBaseT Switch is a 4K@60Hz (4:4:4) switcher featuring HDMI, DisplayPort, USB Type-C, and VGA with stereo inputs which are automatically converted to the standard HDBaseT format for use with a compatible receiver. The HDMI, DisplayPort and USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB).

  • Page 7: Package Contents

    3. PACKAGE CONTENTS  1×HDMI/DisplayPort/VGA/USB Type-C to HDBaseT Switcher  1×24V/3.75A DC Power Adapter  1×Power Cord  1×3.5mm to IR Blaster Cable  1×3-pin Terminal Block  1×Operation Manual 4. SYSTEM REQUIREMENTS  Source equipment such as media players, video game consoles, PCs, or set-top boxes.

  • Page 8: Features

    5. FEATURES  HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant  HDCP 1.x and 2.2 compliant  Switchable HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs  1 HDBaseT output  Digital inputs support up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit)  VGA input supports resolutions up to WUXGA (RB)  Analogue stereo audio is automatically embedded with the video from the VGA input...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel USB-C HDMI SERV. CONTROL POWER SELECT SERV. Port: This port is reserved for firmware update use only. CONTROL Port: Connect directly, or through a network switch, to your PC/laptop to control the unit via Telnet/WebGUI. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
  • Page 10 HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box. DP IN Port: Connect to DisplayPort source equipment such as a PC or laptop. CAT.5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver with a single Cat.5e/6/7 cable for transmission of all data signals.

  • Page 11: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None Console Bypass 3-pin Terminal Block 3-pin Terminal Block...

  • Page 12: Webgui Control

    6.5 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 13 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 14 6.5.1 Switch Tab This tab provides A/V routing control, HDCP management, auto switch control, A/V mask, and I/O renaming options. To assign a new A/V route, please click the Output button on the left and then click on the button of the preferred input port on the right. As each button is selected they will become highlighted.
  • Page 15 4) Output Edit: Provides control over the name of the output. ■ Set Output Name: To rename the output, type the new name in the space provided in the Edit window. The name can be up to 8 characters long. Click the “Save Change” button to confirm the change.
  • Page 16 5) Input Edit: Provides Individual control over the name of each input and the behavior of HDCP on that input. ■ Set Input Name: To rename an input, type the new name in the space provided in the Edit window. The name can be up to 8 characters long.
  • Page 17 6.5.2 Automation Tab The Automation tab provides control over the unit’s automatic control command broadcast behavior when any of the specified Automation Events occur. Automation commands are sent to the connected display device via standard CEC. 1) Event: Use the dropdown to select the Automation Event to configure. Available Automation Events are: –...
  • Page 18 ■ Wait: Set the length of time, in seconds, to wait after this Automation Event has been activated before ANY new Automation Event can be detected. ■ CEC Command: Shows the CEC command, in ASCII hex pairs, that will be sent when the specified Automation Event is activated. Click the “Edit”...
  • Page 19 ■ Download: To save an existing User EDID to your local PC, select the User EDID slot from the dropdown list and then press the “Download” button. Depending on your browser settings you will either be asked where to save the downloaded file, or the file will be transferred to the default download location on your PC.
  • Page 20 This unit provides the following 6 default EDIDs: EDID NAME EDID CONTENT 1080P@60/PCM/2CH 1920×1080p@60Hz (148MHz), 8-bit Colour, LPCM 2.0 1080P@60/PCM/Bitstream/ MCH 1920×1080p@60Hz (148MHz), 8-bit Colour, LPCM 7.1 & Bitstream 4K@30/PCM/2CH 3840×2160p@30Hz (297MHz), Deep Colour (8/10/12-bit), LPCM 4K@30/PCM/Bitstream/MCH 3840×2160p@30Hz (297MHz), Deep Colour (8/10/12-bit), LPCM 7.1 &...
  • Page 21 6.5.4 Network Tab This tab provides network configuration options including changing the IP mode, viewing/setting the IP configuration, changing the admin login password, and changing the Web Login timeout. 1) IP Configuration: IP Mode may be switched between Static IP or DHCP.
  • Page 22 6.5.5 System Tab This tab provides serial number information, system configuration backup/restore/reset, system reboot, and firmware update functions. 1) System Configuration ■ Download: The current system configuration, including routing and settings, may be saved as an XML file to a PC. Click the “Download”...

  • Page 23: Telnet Control

    4) Firmware Upgrade: To update the unit's firmware, click the “Choose File” button to open the file selection window and then select the firmware update file (*.bin format) located on your local PC. After selecting the file, click the “Upgrade” button to begin the firmware update process.

  • Page 24: Rs-232 And Telnet Commands

    6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Show the full command list. help Show the full command list. set factory default Reset the unit to the factory defaults. set system reboot Reboot the unit. get fw ver Show the unit's current firmware version. set in N1 name N2 Set the name of the specified input.
  • Page 25 COMMAND DESCRIPTION AND PARAMETERS get out A mask Display the current A/V Mask setting for the output. set in N1 hdcp mode N2 Set the HDCP behavior of the specified input. N1 = 1~4 [Input port] Available values for N2: [Disabled] [Follow source] [Follow display]...
  • Page 26 COMMAND DESCRIPTION AND PARAMETERS set all in edid N1 Set the EDID to use when the “All” EDID mode is active. Available values for N1: [1080P, 2CH] [1080P, MCH] [4K@30, 2CH] [4K@30, MCH] [4K@60, 2CH] [4K@60, MCH] [User EDID 1] [User EDID 2] [User EDID 3] [User EDID 4]...
  • Page 27 COMMAND DESCRIPTION AND PARAMETERS set in N1 edid N2 Set the EDID to use on the specified input. N1 = 1~4 [Input port] Available values for N2: [1080P, 2CH] [1080P, MCH] [4K@30, 2CH] [4K@30, MCH] [4K@60, 2CH] [4K@60, MCH] [User EDID 1] [User EDID 2] [User EDID 3] [User EDID 4]...
  • Page 28 COMMAND DESCRIPTION AND PARAMETERS set edid N1 name N2 Set the name for the specified EDID. Available values for N1: [User EDID 1] [User EDID 2] [User EDID 3] [User EDID 4] N2 = {Name} [16 characters max] Note: Only User EDIDs may be renamed get edid N1 name Show the current name of the specified EDID.
  • Page 29 COMMAND DESCRIPTION AND PARAMETERS set out auto mode N1 Set the auto switching behavior of the unit. Available values for N1: [Disabled] [Auto switch] get out auto mode Show the current auto switching mode of the unit. get ipconfig Show the unit's current IP configuration information.
  • Page 30 COMMAND DESCRIPTION AND PARAMETERS set webgui login Set the WebGUI inactivity timeout value. timeout N1 Available values for N1: [No timeout] 1 ~ 35970 [Timeout in minutes] get webgui login Show the current WebGUI inactivity timeout timeout value. set webgui port N1 Set the unit's WebGUI access port.
  • Page 31 COMMAND DESCRIPTION AND PARAMETERS get automation event Show the current state of the specified N1 cec A Automation Event's CEC response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event Set the delay time that the specified N1 cec A delay N2 Automation Event must continue to be true before sending the defined CEC command.
  • Page 32 COMMAND DESCRIPTION AND PARAMETERS set automation event Set the length of time to wait after an N1 cec A wait N2 Automation Event's CEC response has been activated before ANY other Automation Event can be detected. Available values for N1: [Power on] [Out A source active] [Out A source lost]...
  • Page 33 COMMAND DESCRIPTION AND PARAMETERS get automation event Show the CEC command to be sent when N1 cec A command the specified Automation Event is activated. Available values for N1: [Power on] [Out A source active] [Out A source lost] Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.

  • Page 34: Connection Diagram

    7. CONNECTION DIAGRAM Media Player 1.5m 60° HDMI Input Laptop 60° IR Input & Serial Equipped Output Laptop USB-C Input DisplayPort Input Tower PC RS-232 Stereo Input Network VGA Input Switch Power Supply CONSOLE BYPASS TX RX G AUDIO USB-C HDMI CAT5e/6/7 OUT RS-232...

  • Page 35: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI/DisplayPort/ 18Gbps USB-C Bandwidth VGA Bandwidth 153MHz HDBaseT Bandwidth 10.2Gbps Input Ports 1×HDMI (Type-A) 1×DisplayPort 1×USB (Type-C) 1×VGA (HD-15) 1×Stereo Audio (3.5mm) Output Port 1×HDBaseT (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) Control Ports 1×RS-232 (3-pin Terminal Block) 1×Ethernet (RJ-45)
  • Page 36 Chassis Colour Black Operating Temperature 0˚C – 40˚C/32˚F – 104˚F Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F Relative Humidity 20 – 90% RH (Non-condensing) Power Consumption...

  • Page 37: Video Specifications

    8.2 Video Specifications Supported Resolutions (Hz) HDMI USBC HDBT 720×400p@70/85     640×480p@60/72/75/85      720×480i@60      720×480p@60      720×576i@50      720×576p@50  ...
  • Page 38 Supported Resolutions (Hz) HDMI USBC HDBT 1920×1080p@50/60      1920×1200p@60RB      2048×1080p@24/25/30      2048×1080p@50/60      2560×1440p@60RB      2560×1600p@60RB    ...

  • Page 39: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI/DisplayPort/USB-C Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition HDBaseT Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard &...

  • Page 40: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input DisplayPort Cable DisplayPort Input USB-C Cable USB-C Input VGA Cable VGA Input  Ethernet Cable Cat.5e/6 Cat.6a/7 Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit Colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock...

  • Page 41: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported...

  • Page 42: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter ASCII American Standard Code for Information Interchange Audio/Video Audio/Video Receiver or Recorder Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Command-Line Interface DHCP Dynamic Host Configuration Protocol...
  • Page 43 ACRONYM COMPLETE TERM LPCM Linear Pulse-Code Modulation Media Access Control Personal Computer Powered Device Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol Ultra-High-Definition UHD+ Ultra-High-Definition Plus Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
  • Page 44 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
