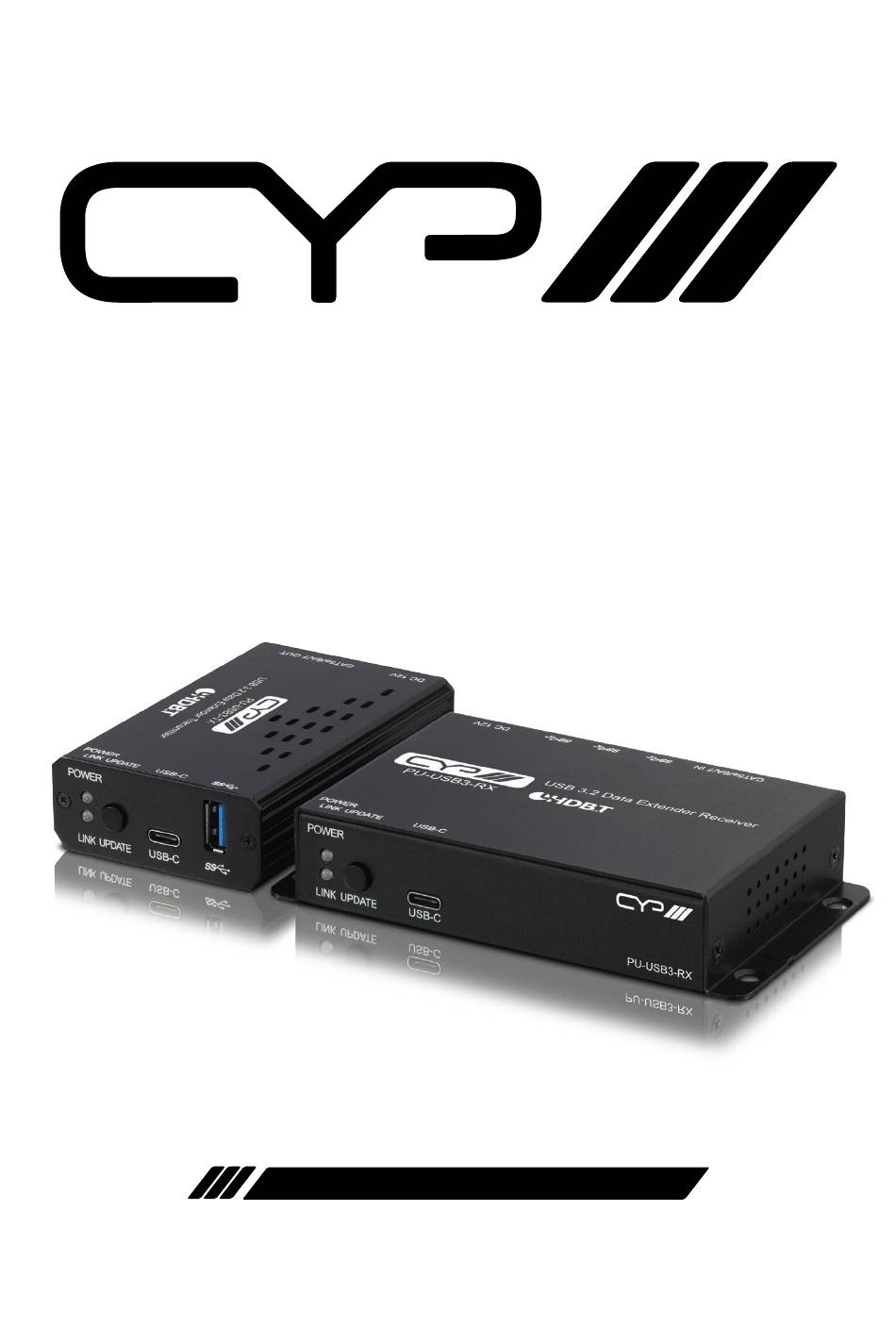

- Page 1 PU-USB3-KIT USB 3.2 data extender kit OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Transmitter Front Panel ........3 6.2 Transmitter Rear Panel ........4 6.1 Receiver Front Panel ...........4 6.2 Receiver Rear Panel ..........5 7. -
Page 6: Introduction
1. INTRODUCTION The PU-USB3-KIT is a USB 3.2 Gen1 extender set designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet). This transmitter enables the extension from the USB-C host to a local USB device and across CAT cabling to the USB devices on the receiver. -
Page 7: Features
5. FEATURES Support USB 3.2 Gen1 with 1 USB-C host port and 1 USB-A device port Support Point-to-Point transmission via CAT cabling Transmission up to 100 meters (328 feet) The transmitter can be powered by a connected host such as a computer or laptop The host can control multiple USB devices on transmitter side and receiver side... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel POWER USB-C LINK UPDATE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active. -
Page 9: Transmitter Rear Panel
6.2 Transmitter Rear Panel DC 12V CAT5e/6A/7 OUT DC 12V Port: Plug the 12V DC power adapter into this port and connect it to an AC wall outlet for power. TX normally powered via USB-C host connection so this PSU is not supplied. Order Code: PSU- 12V1.25A-L if required. -
Page 10: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6A/7 IN DC 12V CAT 5e/6A/7 IN Port: Connect to a compatible transmitter with a single cable for transmission and reception of all data signals. USB 3.2 Device Port (Type-A): Connect directly to standard USB devices such as a mouse, keyboard or flash drive to extend their USB functionality to the host currently connected to the transmitter’s USB port. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop USB Storage Output Input Power Supply POWER LINK UPDATE USB-C DC 12V CAT5e/6A/7 OUT CAT5e/6A/7 Cable POWER Power LINK UPDATE USB-C PU-USB3-RX Supply CAT5e/6A/7 IN DC 12V USB Output Output Mouse and Keyboard USB Storage USB Hub Webcam... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications USB-C Bandwidth 5Gbps HDBaseT Bandwidth 6Gbps Input Ports [TX] 1×USB 3.2 (Type-C) [RX] 1×Cat.5e/6A/7 (RJ-45) Output Ports [TX] 1×USB 3.2 (Type-A), 1×Cat.5e/6A/7 (RJ-45) [RX] 1×USB 3.2 (Type-C), 3×USB 3.2 (Type-A) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) -
Page 13: Cable Specifications
8.2 Cable Specifications USB 3.2 Cable Length 5Gbps Ethernet Cable Cat.5e/6 Cat.6A/7 100m 8.3 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Unsupported LAN Extension Unsupported Send power to Receiver Unsupported Accept power from Receiver Unsupported IR Extension Unsupported RS-232 Extension Unsupported... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Mbps Megabits per second Gbps Gigabits per second Powered Device Power Sourcing Equipment USB Audio Class Universal Serial Bus USB Video Class... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
