NTI RACKMUX-4K17 RACKMOUNT 4K LCD MONITOR WITH KEYBOARD AND MOUSE

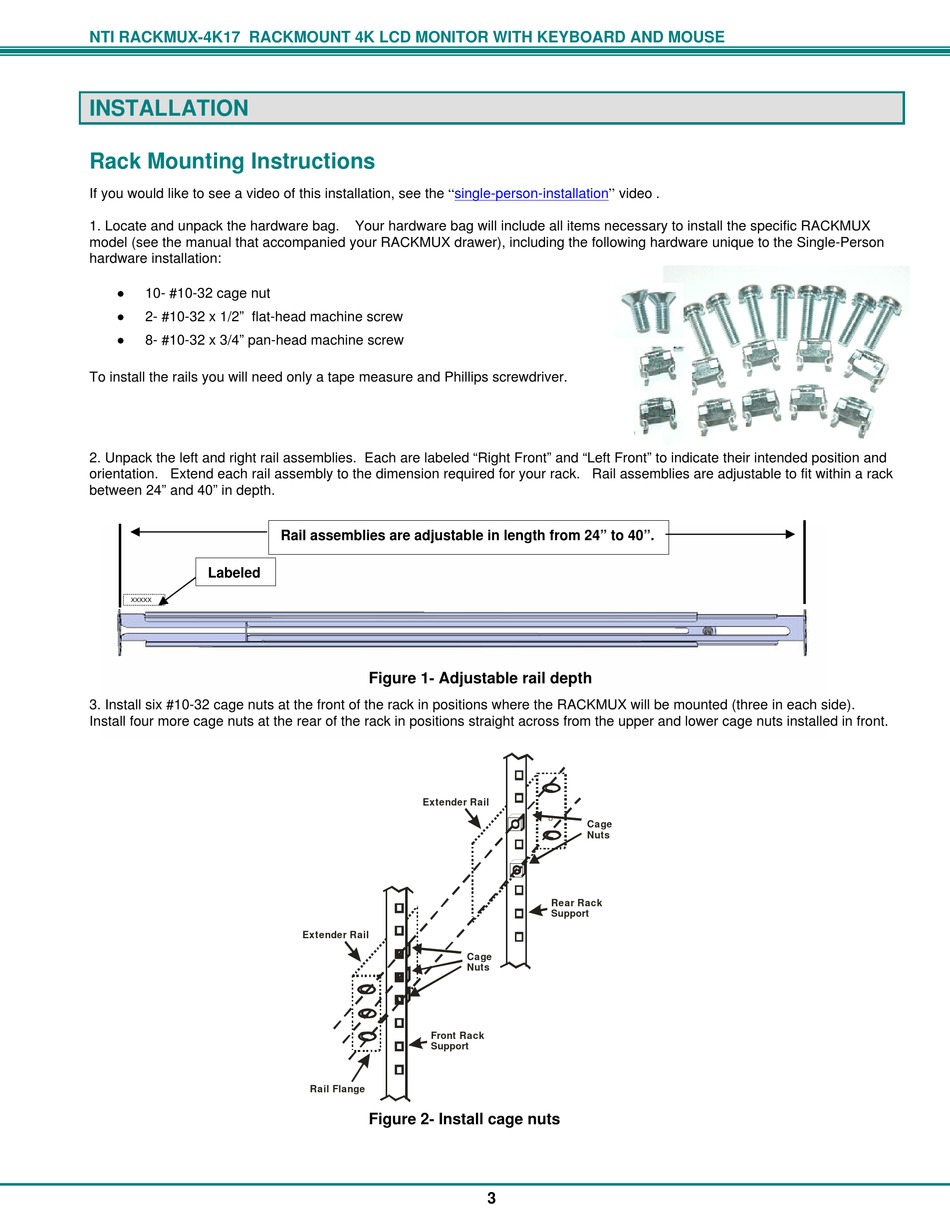

INSTALLATION

Rack Mounting Instructions

If you would like to see a video of this installation, see the "single-person-installation" video .
1. Locate and unpack the hardware bag.
model (see the manual that accompanied your RACKMUX drawer), including the following hardware unique to the Single-Person
hardware installation:

10- #10-32 cage nut

2- #10-32 x 1/2" flat-head machine screw

8- #10-32 x 3/4" pan-head machine screw
To install the rails you will need only a tape measure and Phillips screwdriver.
2. Unpack the left and right rail assemblies. Each are labeled "Right Front" and "Left Front" to indicate their intended position and
orientation. Extend each rail assembly to the dimension required for your rack. Rail assemblies are adjustable to fit within a rack
between 24" and 40" in depth.
Labeled
XXXXX
3. Install six #10-32 cage nuts at the front of the rack in positions where the RACKMUX will be mounted (three in each side).
Install four more cage nuts at the rear of the rack in positions straight across from the upper and lower cage nuts installed in front.
Your hardware bag will include all items necessary to install the specific RACKMUX
Rail assemblies are adjustable in length from 24" to 40".

Figure 1- Adjustable rail depth

Extender Rail
Extender Rail
Front Rack
Support
Rail Flange

Figure 2- Install cage nuts

Cage
Nuts
Rear Rack
Support
Cage
Nuts
3
