Key-Disp KD218 User Manual page 12

desired mode, and then press the "MODE" button to confirm, then access the General
settings page automatically.
PAS Ratio Settings
To modify the value of PAS ratio, press the "+" button or "-" button to choose the
desired value, and then press the "i" button to confirm
For example, the range is "50 percent" of "1" level, percentage value can be
modified, and the default value is 50 percent.
To store the modified setting, press the "MODE" button and turn to the next PAS
ratio settings.
After all PAS ratios were input, hold the "MODE" button for 2s to confirm and then
return to previous menu.
Please refer to Attached list 2.
◆Controller Over-current Cut Settings
Set Current represents controller over-current cut settings. The current value can be
changed from 7.0A to 25.0A.

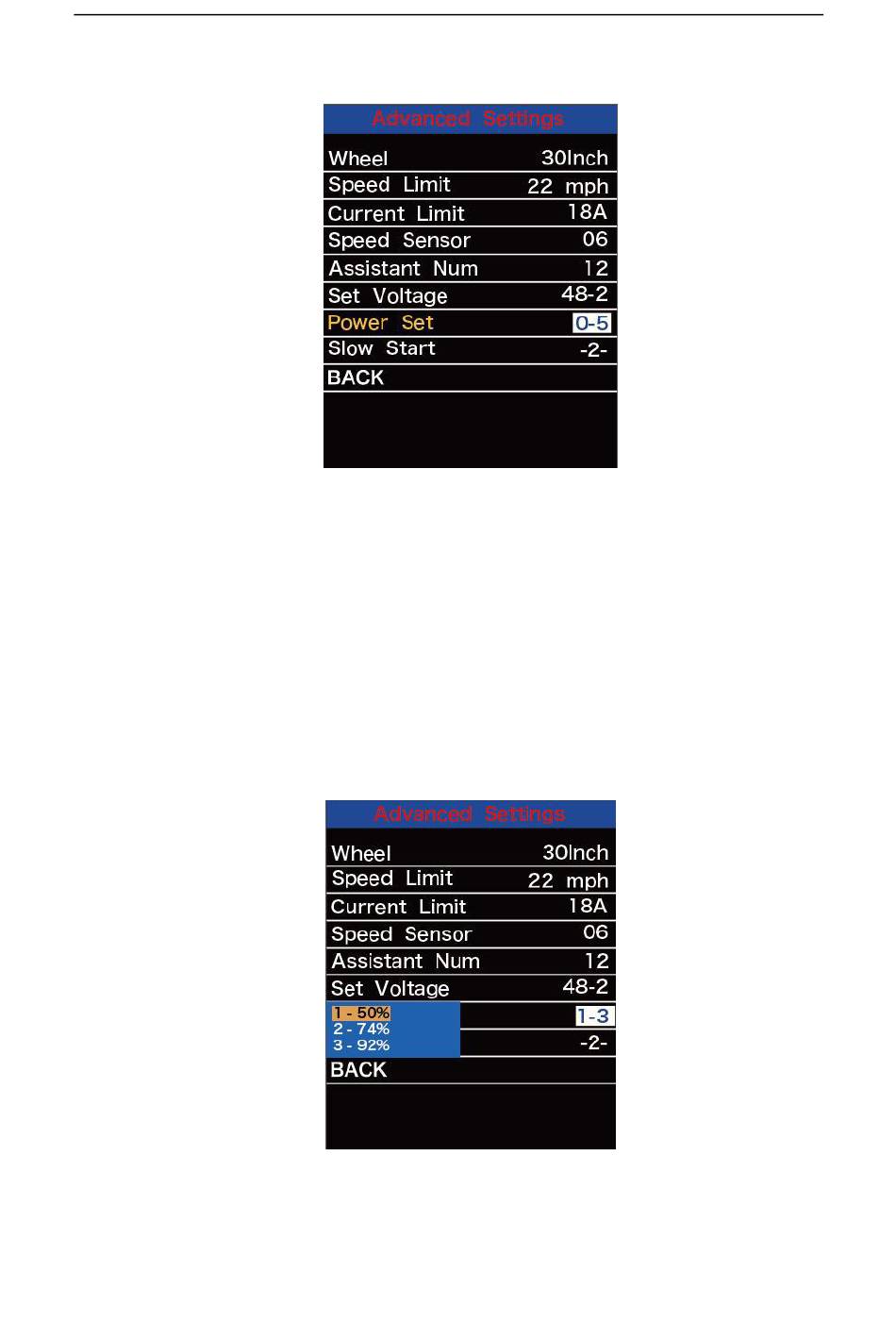

PAS Mode Option Interface
PAS Ratio Settings Interface
