Step 2

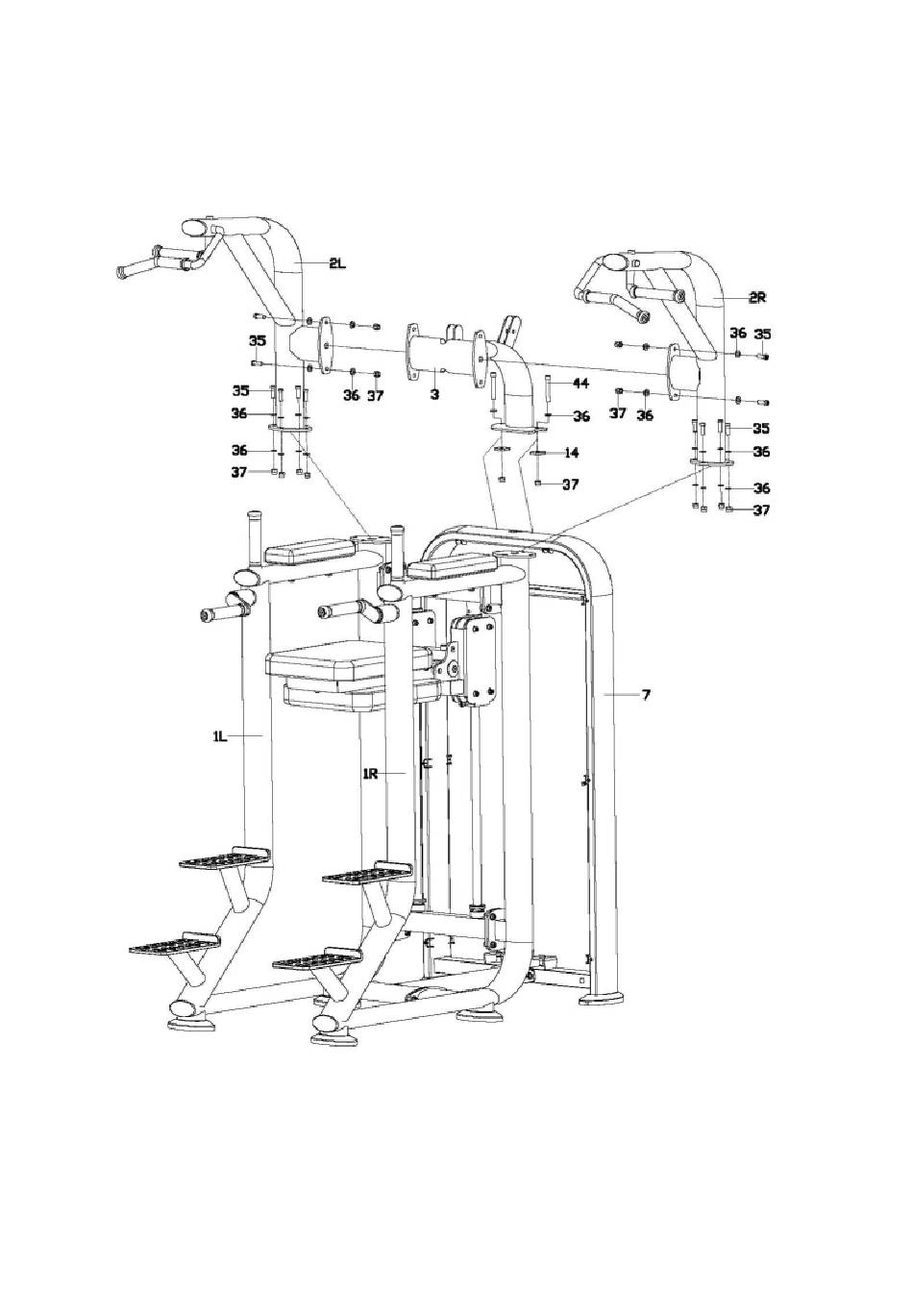

1. Pre lock the Weight frame (7) to the Upper horizontal frame (3) with the Bolt (44), Flat washer
(36), Base plate (14) and Nylon nut (37).
2. Pre Lock the Upper connecting frame (2L/R) to the Main frame (1L/R) and Upper horizontal
frame (3) with the Bolt (35), Flat washer (36), and Nylon nut (37).
3. Lock all the screws tightly.
- 8 -
