Eaton

Power Xpert

Quick Start Instructions

Package Contents

Power Xpert Gateway Minislot (PXGMS) UPS Card

USB Cable

Quick Start Instructions

Gateway Minislot (PXGMS) UPS Card

Table of Contents

Need help?

Do you have a question about the Power Xpert Gateway Minislot and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton Power Xpert Gateway Minislot

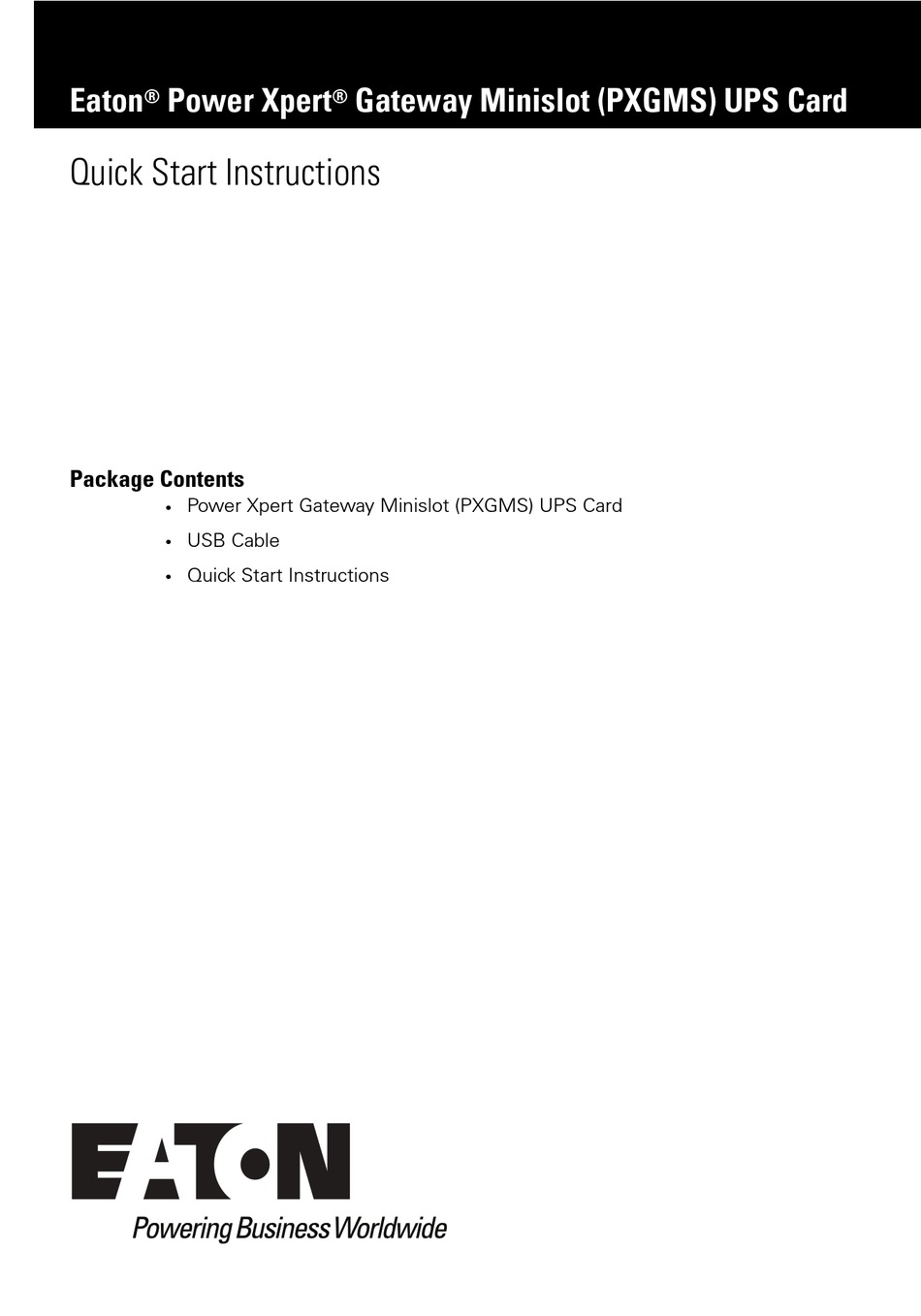

Page 1 Eaton Power Xpert Gateway Minislot (PXGMS) UPS Card ® ® Quick Start Instructions Package Contents Power Xpert Gateway Minislot (PXGMS) UPS Card USB Cable Quick Start Instructions...
Page 2 NOTE: On the Web site opening page, click Support and select the Customer Service link for more information. Eaton and Power Xpert are registered trademarks of Eaton Corporation or its subsidiaries and affiliates. Google Chrome is a trademark of Google Inc. Linux is a registered trademark of Linus Torvalds.
Page 3: Table Of Contents
Section 4 Install the USB Driver Software (Windows XP) ....... 7 Section 5 Install the USB Driver Software (Windows 7) ....... 14 Section 6 Verify IP Address Assignment ............18 Section 7 Assign an IP Address ..............20 Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 4: Section 1 Installation Checklist
Section 1 Installation Checklist Verify that the following items are available: Power Xpert Gateway Minislot (PXGMS) UPS Card package contents (see front cover) Phillips ® screwdriver Available USB port on a computer running Microsoft Windows ® ® Web browser (Microsoft Internet Explorer ®...
Page 5: Section 2 Install The Card
If not already done, record the MAC address for future reference (see Step 2 on page 2). To prevent electrostatic discharge (ESD), place one hand on a metal surface, such as the UPS rear panel. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 6 Connect an active Ethernet cable (not supplied) to the Ethernet 10/100 connector on the PXGMS card (see Figure 3). Status Ethernet 10/100 DHCP Restart Ident Power PXGMS UPS Setup Figure 3. Install the Ethernet Cable Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 7: Section 3 Connect The Card To The Computer
To connect the card to the computer: Go to www.eaton.com/pxgms and perform one of the following: Click the Power Xpert Gateway Minislot UPS Card link beside the PXGMS card photograph. In the left column under Products and Services > Power Quality and Monitoring >...
Page 8 For Windows XP , continue to "Install the USB Driver Software (Windows XP)" on page 7. For Windows 7 , continue to "Install the USB Driver Software (Windows 7)" on page 14. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 9: Section 4 Install The Usb Driver Software (Windows Xp)
To install the USB driver software on a computer running Windows XP: On the Welcome window, select No, not this time and click Next (see Figure 6). Figure 6. Found New Hardware Wizard – Welcome Window Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 10 Figure 7. Found New Hardware Wizard – Install Software Window Select Don’t search. I will choose the driver to install and click Next (see Figure 8). Figure 8. Found New Hardware Wizard – Installation Options Window Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 11 Select Network adapters and click Next (see Figure 9). Figure 9. Found New Hardware Wizard – Hardware Type Window Select Have Disk... and click Next (see Figure 10). Figure 10. Found New Hardware Wizard – Select Network Adapter Window Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 12 Select the file and click Open. Figure 12. Locate File Window In the Install from Disk window, the path to the powerxpert.inf file displays in the Copy manufacturer’s file from box. Click OK. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 13 (see Figure 13). Figure 13. Found New Hardware Wizard – Select Network Adapter Window Note: If the caution message shown in Figure 14 displays, click Continue Anyway. Figure 14. Caution Message Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 14 USB driver has been successfully installed (see Figure 16). Figure 16. Network Connections Window Note: By default, the PXGMS card requests an IP address through DHCP when the card is connected to a network. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 15 To verify the IP address assigned through DHCP , continue to "Verify IP Address Assignment" on page 18. To manually enter a fixed IP address for the card’s network connection, continue to "Assign an IP Address" on page 20. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 16: Section 5 Install The Usb Driver Software (Windows 7)
Under Devices and Printers, select Device Manager to open the Device Manager window. Figure 17. Control Panel Window – Hardware and Sound Expand Other devices and select RNDIS/Ethernet Gadget (see Figure 18). Right-click Update Driver Software. Figure 18. Device Manager Window Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 17 The path to the powerxpert.inf file displays in the Search for driver software in this location box. Click Next (see Figure 20). Figure 20. Update Driver Software Window – Browse for Driver Software Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 18 Go to Control Panel > Hardware and Sound > Devices and Printers > Device Manager. Expand Network adapters. Verify that Linux USB Ethernet/RNDIS Gadget is listed under Network adapters (see Figure 23). Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 19 14. Verify that the assigned IPv4 address is in the 192.168.200.x range, where “x” is typically “1. ” The USB driver software installation is complete. Figure 24. Command Prompt Window – Adapter IP Address Information Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 20: Section 6 Verify Ip Address Assignment
Log on as administrator. The default user name and default password are “admin. ” The PXGMS card Web page displays. Select Network from the Configuration menu. The Network page displays (see Figure 25). Figure 25. PXGMS Card Network Page Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 21 “admin. ” The PXGMS card Web page displays. Note: For detailed information, refer to the user’s guide for the PXGMS card, which is available through a link on the Documentation tab or from www.eaton.com/pxgms. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 22: Section 7 Assign An Ip Address
“admin. ” If the PXGMS card Web page displays, the fixed IP Address is correct. Note: For detailed information, refer to the user’s guide for the PXGMS card, which is available through a link on the Documentation tab or from www.eaton.com/pxgms. Eaton PXGMS UPS Card Quick Start Instructions P-164000208—Rev 1...
Page 24 164950239 P-164000208 1...
