Mocka Watson Entertainment Unit Assembly Instructions Manual page 7

Watson Entertainment Unit
Assembly Instructions

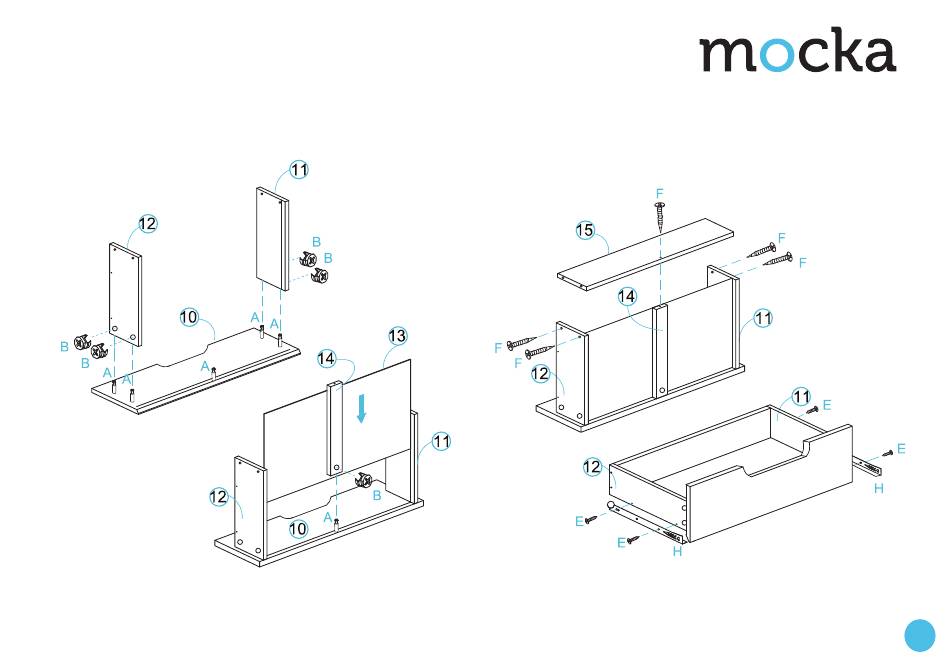

11
Drawer x 2
Insert 5 x bolts (A) into panel [10]. Attach panels [12] and [11] to
panel [10] and secure with 4 x locking nuts (B). Slide panel [13]
between the grooves on panels [12] and [11] to form the base of the
drawer as shown. Attach panel [14] to panel [10] and secure with 1 x
locking nut (B). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
12
Drawer x 2
Attach panel [15] to panels [12], [11] and [14] and secure with 5 x
medium screws (F). Attach 2 x slide rails (H) to panels [12] and [11] and
secure with 4 x small screw (E). Tighten with a screwdriver.
7
