Parker Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B1
bolt &
50mm
nut x38
screw x8
E
F
E3
E4
E1
E2
slide rail
dowel
25mm
x4
x24
screw x2

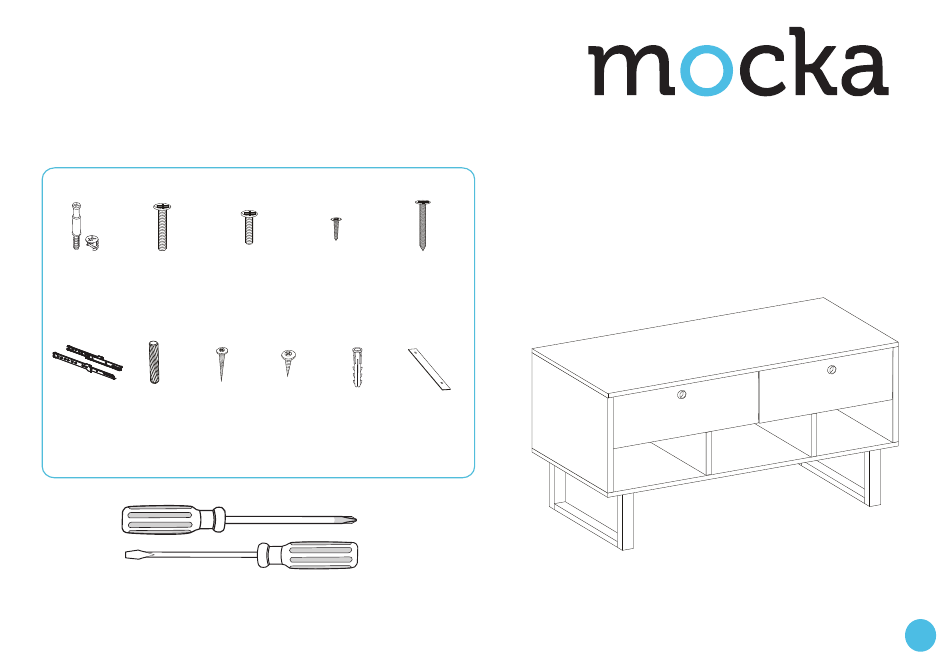

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
B2
C
30mm
12mm
screw x12
screw x10
screw x16
H
I
J
14mm
wall
screw x2
plug x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over
D
in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend that all furniture is anchored
to a wall. We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials
may require different fixing devices from those supplied.
50mm
K
wall
strap x2
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Parker Entertainment Unit and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Parker Entertainment Unit

  • Page 1 Parker Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
  • Page 2 Parker Entertainment Unit Assembly Instructions Attach the leg panels as shown using 8x 50mm screws (B1). Tighten Attach panel [2] to the leg panels using 12x 30mm screws (B2). Insert 8x with a screwdriver. bolts (A) into panel [2]. Tighten with a screwdriver.
  • Page 3 Parker Entertainment Unit Assembly Instructions Insert 2x bolts (A) and attach 1x slide rail [E1] to panel [4] using 2x Attach 1x slide rail [E3] to one side of panel [6] using 2x 12mm screws 12mm screws (C). Insert 2x bolts (A) and attach 1x slide rail [E3] to (C).
  • Page 4 Parker Entertainment Unit Assembly Instructions Insert 4x bolts (A) to the back of panel [3]. Attach panels [4], [5], [6] and [7] to panel [3] as shown using 8x dowels (F) and 8x locking nuts (A). Tighten with a screwdriver.
  • Page 5 Parker Entertainment Unit Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [6] to panel [3] sing 2x dowels (F) and 2x 50mm screws (D). Insert 6x bolts (A) into the back of panel [1]. Attach panels [4], [5] and [7] to panel [2] using 8x dowels (A) and 8x locking nuts (A).
  • Page 6 Parker Entertainment Unit Assembly Instructions Slide panel [8] down along the grooves between panels [4] and [5] to Attach panels [11], [12] and [13] together using 4x 50mm screws (D). Attach form the back of the unit. Attach panel [1] to panels [4], [6] and [5] using panel [14] to panel [13] using 2x bolt and nut sets (A).
  • Page 7 Parker Entertainment Unit Assembly Instructions Safety Straps Insert the drawers, ensuring the slide smoothly and easily along the rails. Ensure unit is balanced and steady before use. You’re done, enjoy! Once assembled, lift furniture into the desired position against a wall, do not drag.
