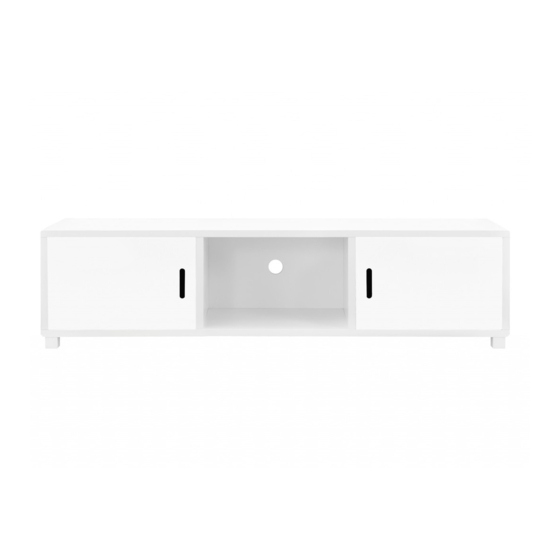

Mocka Essentials Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
x16
x12
x16
E
F
G
H
x4
x12
x2
x4

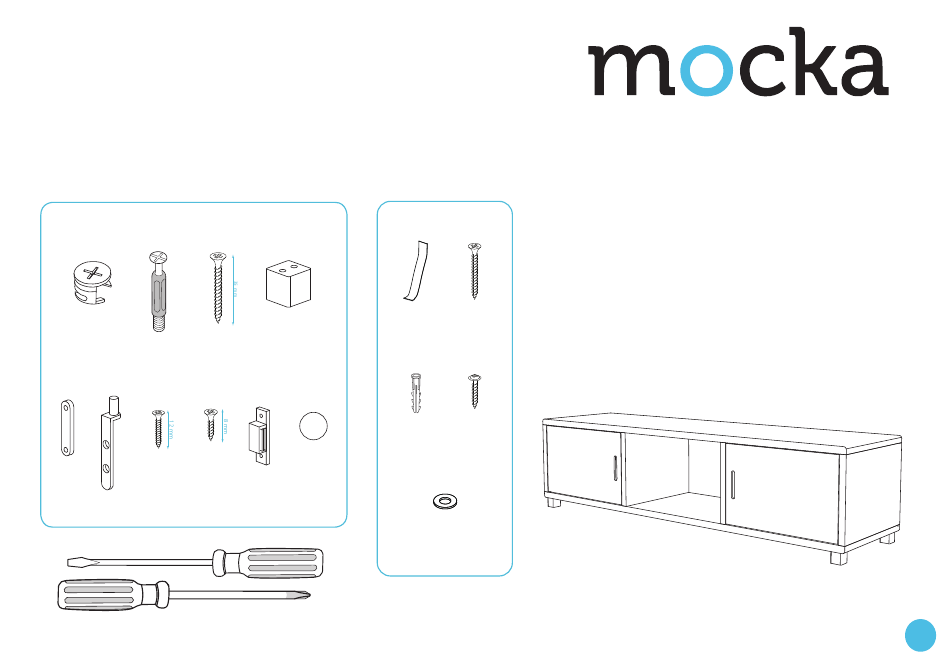

Hardware Supplied
Phillips & flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
x6
I
J
x16
x2
W
WARNING:
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should fit
Wall
Safety
most wall types, but please note that different wall materials may require
Screw
Strap
different fixing devices from those supplied.
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x1
Wall Strap
Any furniture that is not anchored to a wall has the potential
1
Advertisement
Table of Contents
Related Manuals for Mocka Essentials Entertainment Unit
Summary of Contents for Mocka Essentials Entertainment Unit
- Page 1 Mocka Essentials Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Mocka Essentials Entertainment Unit Assembly Instructions First screw in hardware (B) into holes in both top and bottom panels [3 Slide four vertical panels [1 & 2] onto the screw tops in the correct & 6]. position as shown. Ensure grooves in panels are all aligned at rear.
- Page 3 Mocka Essentials Entertainment Unit Assembly Instructions Slide in rear back panels [4 & 5] between vertical panels as shown. Mount door hinge pins (F) to cupboard doors [7]. Place doors into Screw in the two magnetic clips (I) into holes in the central panels using position as shown, aligning hinge pins with holes in the top panel.
- Page 4 Mocka Essentials Entertainment Unit Assembly Instructions Place base panel [3] with hardware (B) already attached into holes on Attach all feet (D) to the base panel [3] using 2x screws (C) in each. top of vertical panels. Insert 8x hardware (A) into remaining holes in all Ensure all screws are tightened with a screwdriver.
- Page 5 Mocka Essentials Entertainment Unit Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Flip the unit over carefully so feet sit on the floor. Fasten clip plate (E) Use (J) to cover holes where hardware (A) is used. to the cupboard door using screws (H). Check both doors swing closed.
- Page 6 Mocka Essentials Entertainment Unit Assembly Instructions Safety Strap Strap Washer wall anchor wall screw Attach safety strap (W) to the top of the back side of the unit using Move the unit into the desired location up against a wall. Use a drill to screw (Y).
