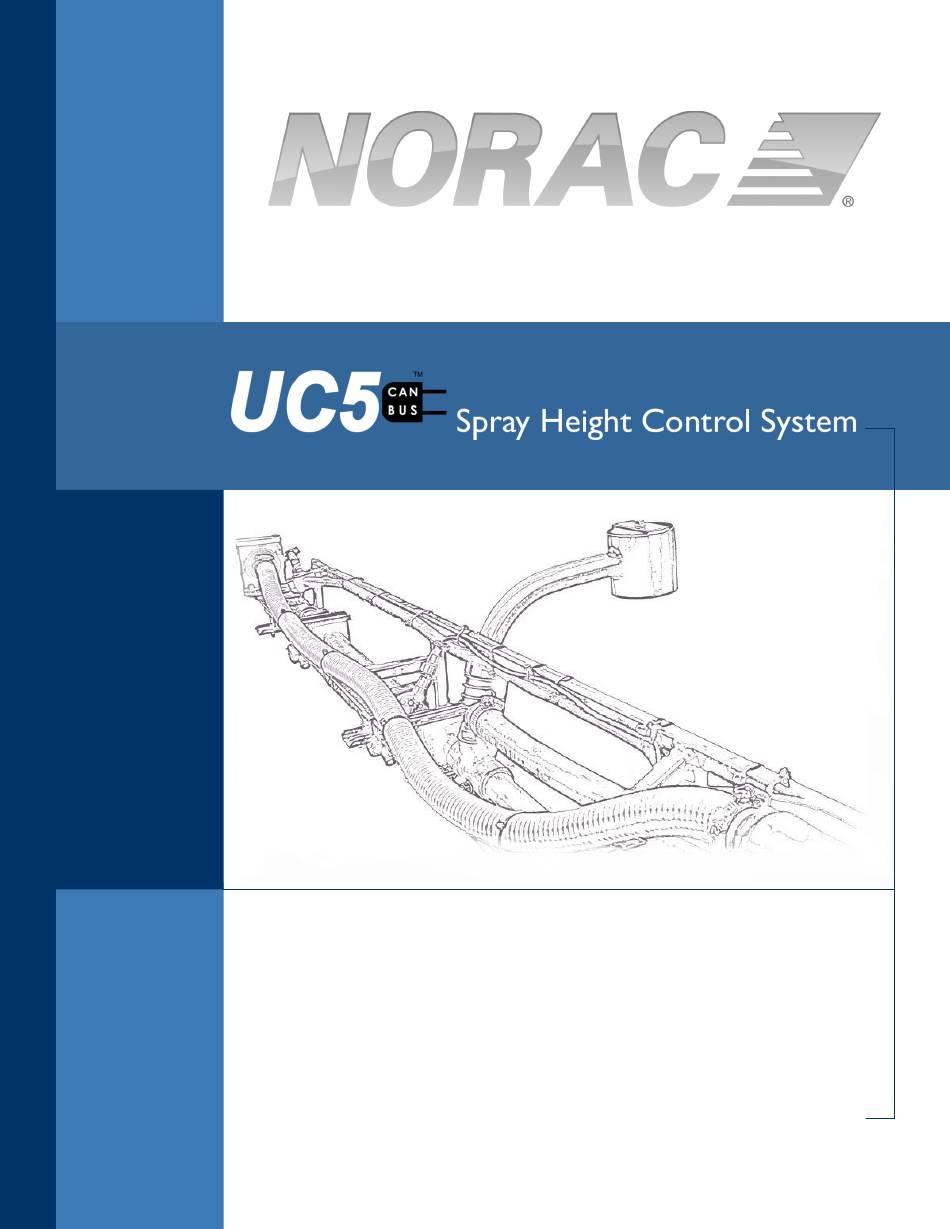

Goldacres Active Wing Roll Control Option Installation Manual 5466BC-GA...
Page 2
Reorder P/N: 5466BC-GA-INST Rev A (Goldacres Active Wing Roll Control Option) NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...
1 Introduction Congratulations on your purchase of the NORAC UC5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.
2 Kit Parts 2.1 Kit Overview Figure 1: UC5 Active Wing Roll Control Parts...
Page 6
2.2 Hydraulic Plumbing Figure 2: UC5 Active Wing Roll Control Hydraulic Plumbing NOTE: All other hydraulic hoses and fittings needed for this installation are supplied by Goldacres.
Page 7
VALVE ASSEMBLY EXPANSION DPOC PROP DT 4 BOLT Do not use high speed power tools/drills when installing hardware. The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Component failure due to oil contamination is not covered under the NORAC UC5 system warranty. It is recommended that a qualified technician perform the hydraulic installation.
Page 9
3.2 Wing Roll Cylinder Mounting 1. Mount the wing roll cylinder (H20) to the boom as shown in Figure 4 with the cable end pointing towards the right-hand wing (when looking from the rear of the sprayer). Tighten mounting bolts to 60-70 ft-lb (81-95 Nm). 2.
Page 10
6. Connect the sprayer raise lines to the second ports on the ends of the wing roll cylinder. 7. Connect the “A” port on the wing roll cylinder to the “A” port on the NORAC expansion block. 8. Connect the “B” port on the wing roll cylinder to the “B” port on the NORAC expansion...
7 and 8. 2. Connect the 2 pin connector on cables C10 into positions 7 and 8 on the valve module. Connect the other end of cables C10 to the 2 pin connectors on the NORAC expansion block (V02).
Move the left tilt cylinder full stroke three times. b) Move the right tilt cylinder full stroke three times. 2. The NORAC screen on the VT or PULSE must be used to remove air from the roll channel: a) Start an Automatic Install.
Page 14
