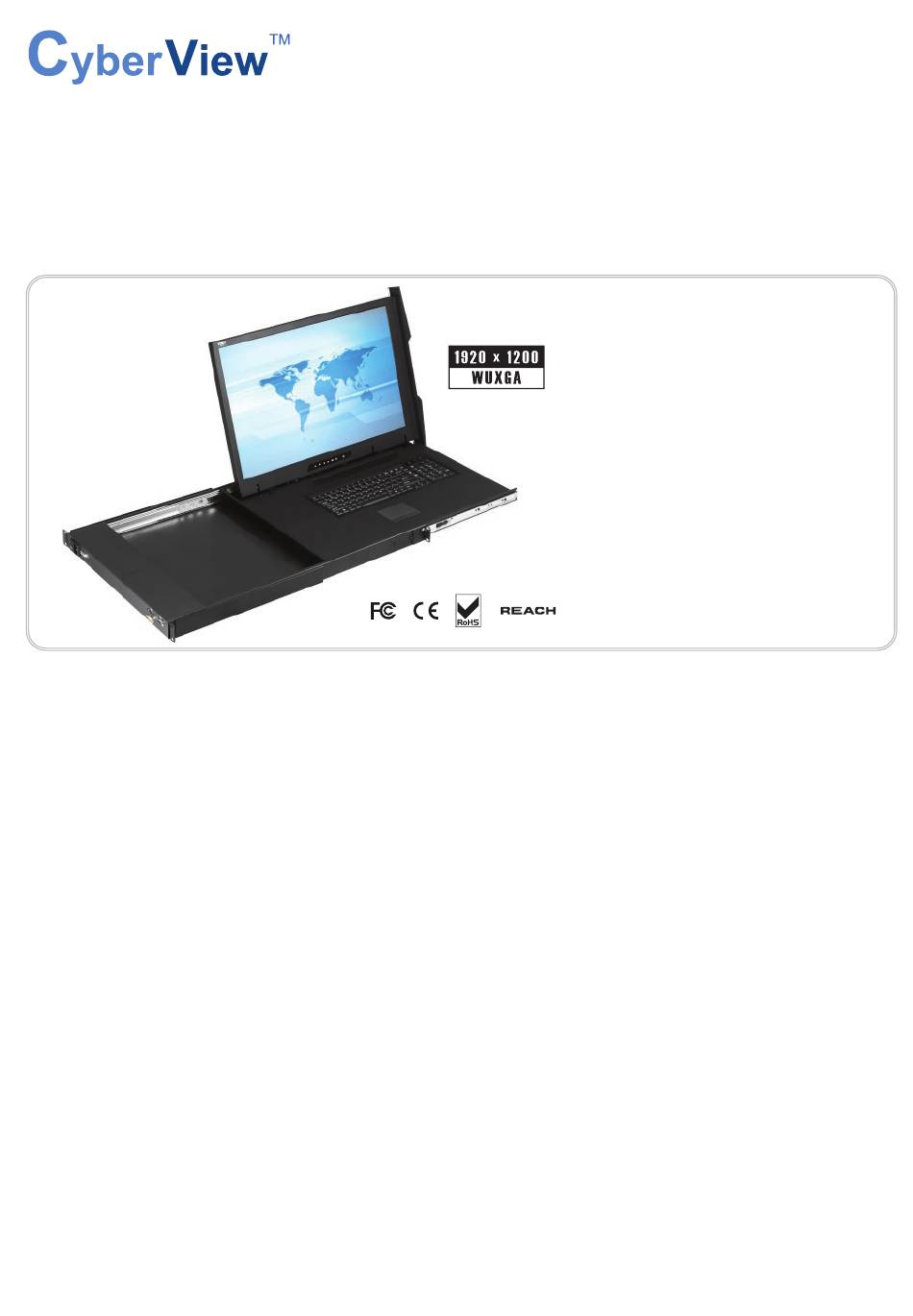

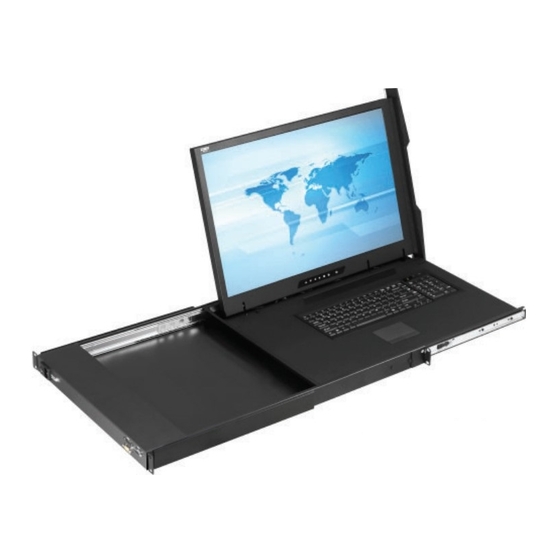

- Page 1 KVM switch and rackmount screen technology User Manual 24” Ultra High Resolution LCD 1920 x 1200 X124 1U LCD Console Drawer Options : - HDMI - SDI - DC power Designed and manufactured by Austin Hughes UM-CV-751-X124-Q220V2 www.austin-hughes.com...
- Page 2 Legal Information First English printing, June 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > X124 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.12 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.14 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: X124
< Part 1 > X124 < 1.1 > Package Content X124 X124 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View UNIT : mm 1mm = 0.03937 inch AC Input 100~240V Power VGA DVI-D Side View Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 700 x 44 mm 595 x 910 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides X124 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : X124R...
- Page 9 Intentionally Left Blank UM-CV-751-X124-Q220V2 www.austin-hughes.com...
-
Page 10: Connection
< 1.4 > Connection to USB Server via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D... - Page 11 < 1.4 > Connection to USB Server via CB-6A cable X124 LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable...
-
Page 12: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 13 X124 Physical Product ( W x D x H ) 441.6 x 700 x 44 mm Specifi cation 17.4 x 27.6 x 1.73 inch Packing ( W x D x H ) 595 x 910 x 140 mm 23.4 x 35.8 x 5.5 inch Net Weight 15.3 kg / 33.7 lb Gross Weight...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 15 < 2.2 > MAC Keyboard / Mouse Options X124 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume...
- Page 16 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 17: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) X124 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 18 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H. Position : Align the screen image left or right V.
-
Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) X124 < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 20 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 21: Options
Options X124 < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 22: Hdmi
< 3.2 > Options : - HDMI ( HDMI 1.3, CEA-861-D ( 1 ) For HDMI option, DVI-D input will be removed. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 23 < 3.3 > Options : DC Power X124 Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 24: Kvm Integration
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-X124-Q220V2 www.austin-hughes.com...
