Optional Hardware Setup
Note: Presentation applies to the VCU110

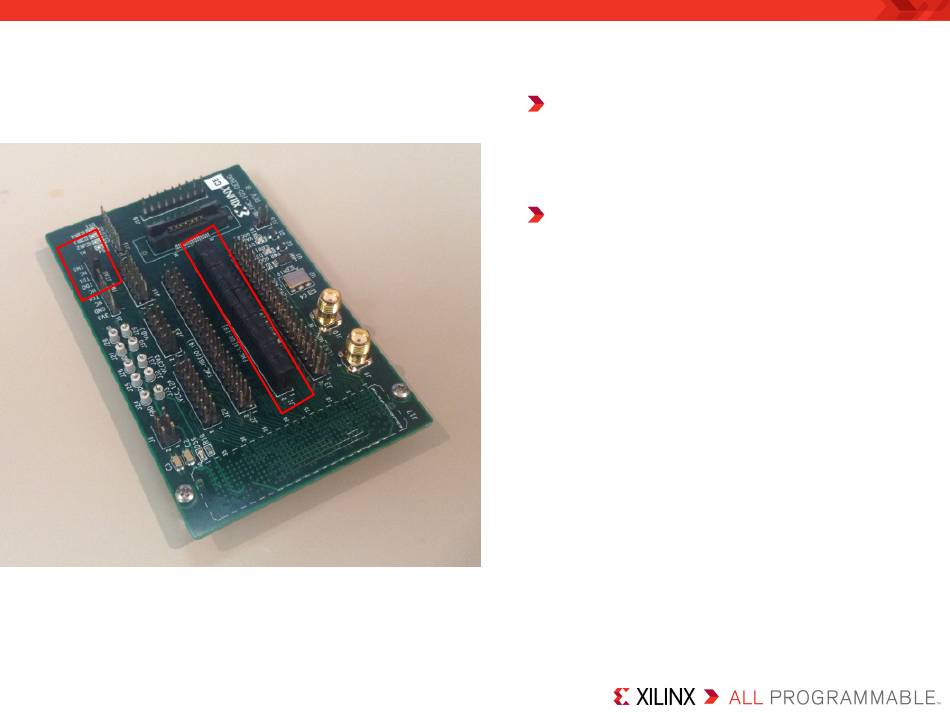

The VCU110 IPI LVDS
Loopback test requires two
XM105 boards
On the XM105's J1 connector,
connect all pins as follows:
– 1 to 3
– 2 to 4
– 5 to 7
– ...
– 37 to 39
– 38 to 40
– Also connect TDO to TDI on J5
