LifeGear DYNASTY 26800N Owner's Manual

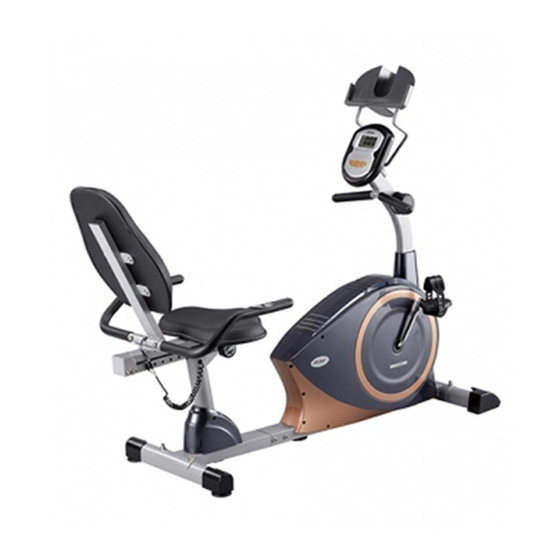

Magnetic recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

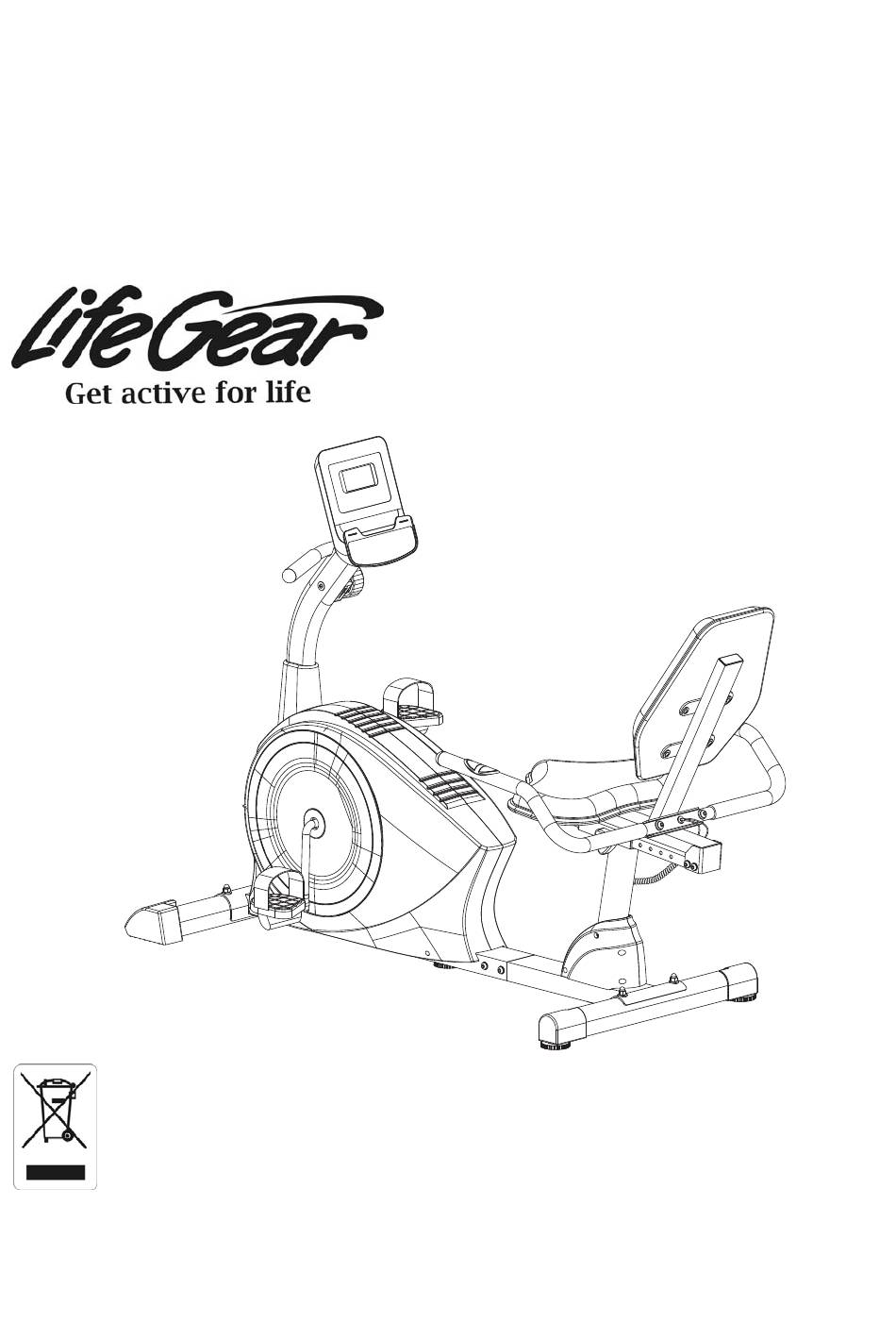

DYNASTY
Magnetic Recumbent Bike
ITEM NO.: 26800N
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.
2017, June

Advertisement

Table of Contents
loading

Related Manuals for LifeGear DYNASTY 26800N

Summary of Contents for LifeGear DYNASTY 26800N

  • Page 1 DYNASTY Magnetic Recumbent Bike ITEM NO.: 26800N OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE LIST ------------------------------------------------------------------------ 6 TOOLS -------------------------------------------------------------------------------------- 6 EXPLODED VIEW ----------------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 HOW TO MOVE THE RECUMBENT BIKE ---------------------------------------- 21 OPERATING THE COMPUTER ------------------------------------------------------ 22 ADJUSTMENTS -------------------------------------------------------------------------- 24 MAINTENANCE -------------------------------------------------------------------------- 25 TROUBLESHOOTING ------------------------------------------------------------------ 25...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description Hexagon Socket Pan Head Cap 2 024 Screw ST4.8x20 Bolt M8x45 002 Big Curve Washer Ø8xØ20x2.0T 7 025R Right Decorative Cover Rear Handlebar Foam Grip 2 025L Left Decorative Cover Ø30xØ24x595 Hand Pulse Sensor with Wire Cross Recessed Pan Head 2 026 (L=750 mm)
  • Page 6 PARTS LIST Description Qty No. Description 046 Plastic Screw Anchor Ø8x32 1 066R Right Foot Pedal (YH-30X) Front Handlebar Foam Grip 2 066L Left Foot Pedal (YH-30X) Ø30xØ24x160 048 Hexagon Nut M6 (S10) 2 067 Belt Pulley with Crank Ø260 049 Spring Washer Ø6 2 068 Washer Ø24xØ40x3.0t 050 Tension Bracket 31x30x1.0t...

  • Page 7: Hardware List

    HARDWARE LIST (1) Hexagon Socket (2) Big Curve Washer (8) Washer Pan Head Cap Bolt 6 PCS 2 PCS 2 PCS (9) Cap Nut (57) Carriage Bolt 6 PCS 4 PCS TOOLS Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver 1 PC S10, S13, S14, S15 1 PC...

  • Page 8: Exploded View

    EXPLODED VIEW...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Position the Rear Stabilizer (56) behind the Rear Main Frame (20) and align bolt holes. Attach the Rear Stabilizer (56) onto the rear curve of the Rear Main Frame (20) with two Big Curve Washers (2), two Cap Nuts (9), and two Carriage Bolts (57). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 10 STEP 2 Position the Front Stabilizer (81) in front of the Front Main Frame (76) and align bolt holes. Attach the Front Stabilizer (81) onto the front curve of the Front Main Frame (76) with two Big Curve Washers (2), two Cap Nuts (9), and two Carriage Bolts (57). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 11 17 8 STEP 3 Remove six Washers (8) and six Hexagon Socket Pan Head Cap Bolts (17) from the Rear Main Frame (20). Remove bolts with the S6 Allen Wrench provided. 22 72 STEP 4 Connect the Extension Hand Pulse Sensor Wires (22) from the Rear Main Frame (20) to the Extension Hand Pulse Sensor Wires I (72) from the Front Main Frame (76).
  • Page 12 8 17 17 8 17 8 STEP 5 Attach the Rear Main Frame (20) into the Front Main Frame (76) with six Washers (8) and six Hexagon Socket Pan Head Cap Bolts (17) that were removed. Tighten bolts with the S6 Allen Wrench provided.
  • Page 13 2 37 STEP 7 Remove four Washers (8), four Hexagon Socket Pan Head Cap Bolts (36), one Big Curve Washer (2), and one Hexagon Socket Flat Head Cap Bolt (37) from the tube of the Front Main Frame (76). Remove bolts with the S6 Allen Wrench provided. Pull the tension cable and wires out from the tube of the Front Main Frame (76).
  • Page 14 29 28 STEP 9 Insert the Tension Cable (32) through into the bottom hole of Front Post (30) and pull it out from the square hole of Front Post (30). Connect the Extension Hand Pulse Sensor Wire I (72) and Sensor Wire (74) from the Front Main Frame (76) to the Extension Hand Pulse Sensor Wire II (29) and Extension Sensor Wire (28) from the Front Post (30).
  • Page 15 2 37 STEP 10 Attach the Front Post (30) onto the tube of the Front Main Frame (76) with four Washers (8), four Hexagon Socket Pan Head Cap Bolts (36), one Big Curve Washer (2), and one Hexagon Socket Flat Head Cap Bolt (37) that were removed. First lightly tighten four Hexagon Socket Pan Head Cap Bolts (36) and one Hexagon Socket Flat Head Cap Bolt (37) by hand.
  • Page 16 34 35 34 35 STEP 12 Put the cable end of resistance cable of Tension Control Knob (31) into the cable lock of Tension Cable (32), see Figure A. Pull the resistance cable of Tension Control Knob (31) up and force it into the slot of metal bracket of Tension Cable (32), see Figure B.
  • Page 17 STEP 14 Connect the Extension Sensor Wire (28) and Extension Hand Pulse Sensor Wires II (29) to the wires that come from the Computer (27). Tuck wires into the Front Post (30). Attach the Computer (27) onto the top end of the Front Post (30) with four Cross Recessed Pan Head Bolts (33) that were removed.
  • Page 18 STEP 16 Insert the Seat Sliding Tube (19) into the bushings of the Rear Main Frame (20). Insert the Round Knob (23) and Triangle Knob (21) into knob holes. Turn the Round Knob (23) and Triangle Knob (21) in the clockwise direction to tighten. STEP 17 Attach the Back and Seat Support Bracket (16) onto the Seat Sliding Tube (19) with eight Washers (8) and eight Hexagon Socket Pan Head Cap Bolts (17) that were removed.
  • Page 19 STEP 18 Attach the Rear Handlebar (6) onto the Back and Seat Support Bracket (16) with two Hexagon Socket Pan Head Cap Bolts (1), two Big Curve Washers (2), two Washers (8), and two Cap Nuts (9). Tighten bolts and cap nuts with the S6 Allen Wrench and Multi Hex Tool with Phillips Screwdriver provided.
  • Page 20 STEP 19 Connect the Hand Pulse Sensor Wires (4) from the Rear Handlebar (6) to the Extension Hand Pulse Sensor Wires (22) from the Rear Main Frame (20). STEP 20 Remove eight Cross Recessed Pan Head Bolts (11) and eight Big Washers (12) from the back of the Back and Seat Cushions (14, 15).
  • Page 21 STEP 21 Attach the Back Cushion (14) onto the Back and Seat Support Bracket (16) with four Cross Recessed Pan Head Bolts (11) and four Big Washers (12) that were removed. Tighten bolts with Multi Hex Tool with Phillips Screwdriver provided. STEP 22 Attach the Seat Cushion (15) onto the Back and Seat Support Bracket (16) with four Cross Recessed Pan Head Bolts (11) and four Big Washers (12) that were removed.

  • Page 22: How To Move The Recumbent Bike

    HOW TO MOVE THE RECUMBENT BIKE Rear Handlebar Transport Wheel CAUTION: Due to the size and weight of the recumbent bike, please moving it requires two people. One person stands in front of the recumbent bike, hold the front handlebars. The other person lifts the Rear Handlebar until the recumbent bike will roll on the transport wheels.

  • Page 23: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing one of the three buttons or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select each function of the computer.
  • Page 24 to count up immediately and the computer will begin beeping to remind you. CAL (CALORIES): Displays approximate amount of calories burned during workout. You may also pre-set target calories in STOP mode before training. To set CALORIES press the MODE button until the screen displays CAL. Press the SET button to change the calories.

  • Page 25: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Adjustable Leveler Turn the adjustable leveler on the front main frame and rear stabilizer as needed to level the recumbent bike.

  • Page 26: Maintenance

    MAINTENANCE Cleaning The recumbent bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 27: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 28 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
