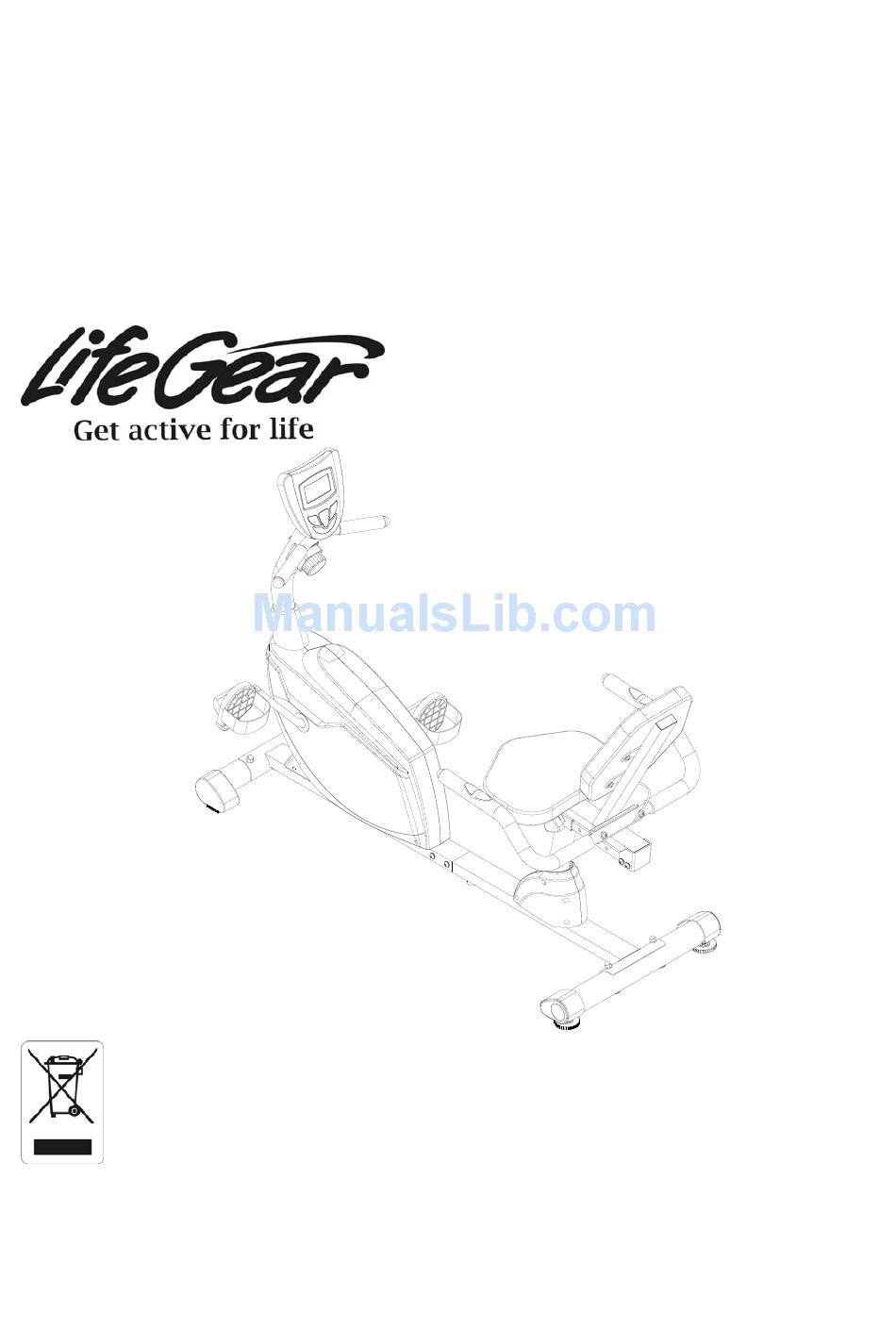

- Page 1 SWANY, MAGNETIC RECUMBENT BIKE ITEM NO: 26460 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE PACKING LIST --------------------------------------------------------- 5 TOOLS -------------------------------------------------------------------------------------- 5 OVERVIEW DRAWING ----------------------------------------------------------------- 6 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7 OPERATING THE COMPUTER ------------------------------------------------------ 13 ADJUSTMENTS -------------------------------------------------------------------------- 15 MAINTENANCE -------------------------------------------------------------------------- 16 TROUBLESHOOTING ------------------------------------------------------------------ 16 WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 17... -
Page 3: Warranty
ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use. -
Page 5: Parts List
PARTS LIST Description Qty No. Description 001L Front Left Stabilizer End Cap 1 025 Spring Washer Ø6 001R Front Right Stabilizer End Cap 1 026 Hexagon Nut M6 002L Left Cover KD006-0400-002 1 027 Extension Sensor Wire L=550 002R Right Cover KD006-0400-003 1 028 Hexagon Nut 7/8"... -
Page 6: Hardware Packing List
PARTS LIST Description Qty No. Description Rear Handlebar Foam Grip 049L Rear Left Stabilizer End Cap Ø60 1 061 Ø24xØ30x550 Rear Right Stabilizer End Cap Hexagon Socket Pan Head Bolt 049R 1 062 Ø60 M8x45 050 Adjustable Leveler M10x38 2 063 Handlebar Ø25x1.5x1294 Hand Pulse Sensor with Wire 051 Hexagon Nut M10 2 064... -
Page 7: Overview Drawing
OVERVIEW DRAWING... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools: Multi Hex Tool with Phillips Screwdriver S8, S13, S14, S15 Allen Wrench 5mm 1. Rear Main Frame and Front/Rear Stabilizers Installation Remove six M8x15 Hexagon Socket Pan Head Bolts (15) and six Ø8xØ16x1.5 Washers (45) from the Rear Main Frame (46). Remove bolts with the 5mm Allen Wrench provided. Connect the Extension Hand Pulse Sensor Wires I (69) from the Rear Main Frame (46) to the Extension Hand Pulse Sensor Wires II (67) from the Front Main Frame (17). - Page 9 Tool: Allen Wrench 5mm 2. Seat Sliding Tube, Back/Seat Support Bracket, and Seat/Back Cushions Installation Remove eight M8x15 Hexagon Socket Pan Head Bolts (15) and eight Ø8xØ16x1.5 Washers (45) from the Seat Sliding Tube (55). Remove bolts with the 5mm Allen Wrench provided. Insert the Seat Sliding Tube (55) into the Bushings (44) of the Rear Main Frame (46).
- Page 10 Tools: Allen Wrench 5mm Multi Hex Tool with Phillips Screwdriver S8, S13, S14, S15 3. Handlebar Installation Remove two M8x45 Hexagon Socket Pan Head Bolts (62), two Ø8xØ25x2 Big Curve Washers (16), two Ø8xØ16x1.5 Washers (45), and two M8 Cap Nuts (18) from the Handlebar (63).
- Page 11 Tools: Allen Wrench 5mm Multi Hex Tool with Phillips Screwdriver S8, S13, S14, S15 4. Front Handlebar Post, Tension Control Knob, and Computer Installation Remove four M8x15 Hexagon Socket Pan Head Bolts (15) and four Ø8xØ25x2 Big Curve Washers (16) from the tube of the Front Main Frame (17). Remove bolts with the 5mm Allen Wrench provided.
- Page 12 Turn the Tension Control Knob (13) in a clockwise direction to its highest level, see Figure 1. Put the cable end of resistance cable of Tension Control Knob (13) into the cable lock of Tension Cable (66), see Figure A. Pull the resistance cable of Tension Control Knob (13) up and force it into the slot of metal bracket of Tension Cable (66), see Figure B.
- Page 13 Tool: Multi Hex Tool with Phillips Screwdriver S8, S13, S14, S15 5. Foot Pedals Installation The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for Left. Insert the pedal shaft of Left Foot Pedal (35L) into threaded hole in the left Crank (36). Turn the pedal shaft by hand in the counter-clockwise direction until snug.
-
Page 14: Operating The Computer
OPERATING THE COMPUTER SPECIFICATIONS: TIME---------------------------------------------------- 0:00-99:59 MIN: SEC SPEED ------------------------------------------------ 0.0-99.9 KM/H DIST (DISTANCE) ---------------------------------- 0.00-9999 KM CAL (CALORIES) ----------------------------------- 0.0-9999 KCAL ODO (ODOMETER) -------------------------------- 0.0-9999 KM (PULSE) ------------------------------------------ 40-240 BEATS/MIN USING YOUR COMPUTER The computer can be activated by pressing the buttons or by pedaling. If you leave the equipment idle for approximate 4 minutes, the power will turn off automatically. - Page 15 DIST (DISTANCE): Displays the accumulative distance traveled during workout. You may also pre-set target distance in STOP mode before training. To set DISTANCE press the MODE button until you see the DIST displays on the screen. Press the SET button to change the distance.
-
Page 16: Adjustments
ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer as needed to level the recumbent bike. -
Page 17: Maintenance
MAINTENANCE Cleaning The recumbent bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail. -
Page 18: Warm Up And Cool Down Routine
WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles. - Page 19 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
