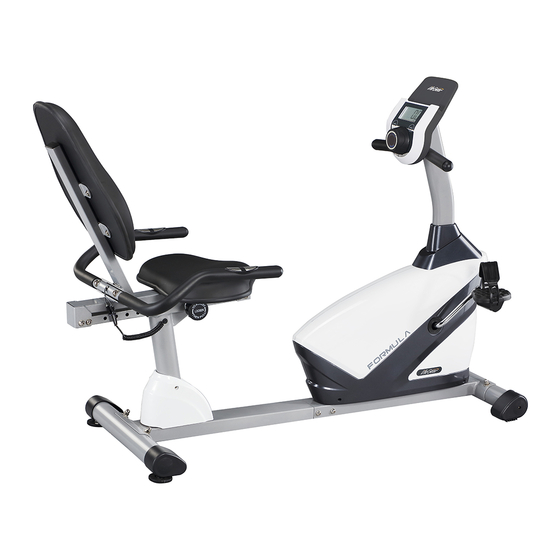

Magnetic recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

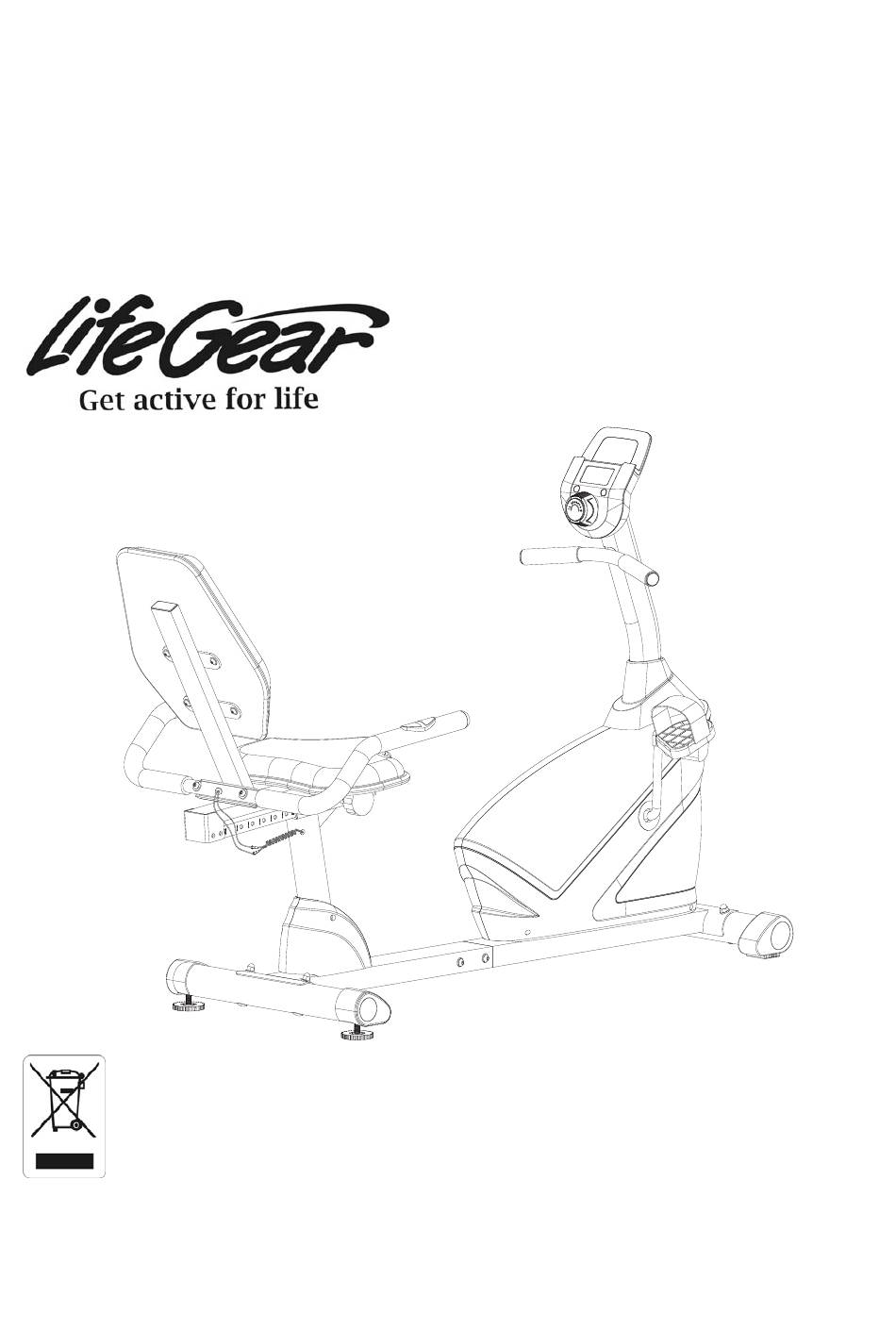

FORMULA
MAGNETIC RECUMBENT BIKE
ITEM NO.: 26582
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.
2020, Sept.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Formula and is the answer not in the manual?

Questions and answers

Related Manuals for LifeGear Formula

Summary of Contents for LifeGear Formula

  • Page 1 FORMULA MAGNETIC RECUMBENT BIKE ITEM NO.: 26582 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE LIST ----------------------------------------------------------------------- 6 TOOLS -------------------------------------------------------------------------------------- 6 EXPLODED VIEW ----------------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 HOW TO MOVE THE RECUMBENT BIKE ---------------------------------------- 23 OPERATING THE COMPUTER ------------------------------------------------------ 24 ADJUSTMENTS -------------------------------------------------------------------------- 25 MAINTENANCE -------------------------------------------------------------------------- 26 TROUBLESHOOTING ----------------------------------------------------------------- 26...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description 001 Front Right Stabilizer End Cap 1 023 Triangle Knob M12x58 002 Front Stabilizer Ø60x1.5x330 1 024 Handlebar End Cap Ø25x1.5 Front Handlebar Foam Grip 003 Cap Nut M8 6 025 Ø24xØ30x160 004 Big Curve Washer Ø8xØ20x2 3 026 Extension Sensor Wire L=500 mm Cross Recessed Pan Head Extension Hand Pulse Sensor...
  • Page 6 PARTS LIST Description Qty No. Description Hexagon Socket Pan Head Cap 2 063 Left Rear Main Frame Cover Bolt M8x30 046 Rear Main Frame 1 064 Rear Stabilizer 047 Seat Cushion 250x345x40 1 065 Rear Right Stabilizer End Cap 048 Backrest 420x360x45 1 066 Nut M10 Cross Recessed Pan Head Bolt 8 067 Adjustable Leveler M10...

  • Page 7: Hardware List

    HARDWARE LIST (3) Cap Nut 4 PCS (6) Carriage Bolt (77) Big Curve Washer 4 PCS 4 PCS (4) Big Curve Washer 2 PCS (57) Hexagon Socket (3) Cap Nut Pan Head Cap Bolt 2 PCS 2 PCS (36) Washer 2 PCS TOOLS Allen Wrench...

  • Page 8: Exploded View

    EXPLODED VIEW...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Remove six Washers (36), four Hexagon Socket Pan Head Cap Bolts (72), and two Hexagon Socket Pan Head Cap Bolts (45) from the Rear Main Frame (46). Remove bolts with the Allen Wrench provided. STEP 2 Connect the Extension Hand Pulse Sensor Wires (44) from the Rear Main Frame (46) to the Extension Hand Pulse Sensor Wires I (70) from the Front Main Frame (21).
  • Page 10 STEP 3 Attach the Rear Main Frame (46) into the Front Main Frame (21) with six Washers (36), four Hexagon Socket Pan Head Cap Bolts (72), and two Hexagon Socket Pan Head Cap Bolts (45) that were removed. Tighten bolts with the Allen Wrench provided.
  • Page 11 77 3 Transport Wheel STEP 4 Position the Front Stabilizer (2) in front of the Front Main Frame (21) and align bolt holes. Attach the Front Stabilizer (2) onto the front curve plate of the Front Main Frame (21) with two Carriage Bolts (6), two Big Curve Washers (77), and two Cap Nuts (3).
  • Page 12 STEP 5 Install two Adjustable Levelers (67) with two Nuts (66) onto the Rear Stabilizer (64). STEP 6 Position the Rear Stabilizer (64) behind the Rear Main Frame (46) and align bolt holes. Attach the Rear Stabilizer (64) onto the rear curve plate of the Rear Main Frame (46) with two Carriage Bolts (6), two Big Curve Washers (77), and two Cap Nuts (3).
  • Page 13 STEP 7 Remove four Washers (36), four Hexagon Socket Pan Head Cap Bolts (35), one Big Curve Washer (4), and one Hexagon Socket Pan Head Cap Bolt (72) from the tube of the Front Main Frame (21). Remove bolts with the Allen Wrench provided. STEP 8 Slide the Front Handlebar Post Cover (41) up to the Front Handlebar Post (34).
  • Page 14 STEP 9 It is recommended to have a second person assist with this step. One person should hold the Front Handlebar Post (34) and Front Handlebar Post Cover (41) in place while the other person to insert the Tension Cable (31) and connect wires. Insert the Tension Cable (31) through into the bottom hole of Front Handlebar Post (34) and pull it out from the top end of the Front Handlebar Post (34).
  • Page 15 STEP 10 Insert the Front Handlebar Post (34) onto the tube of the Front Main Frame (21) and align bolt holes. Attach the Front Handlebar Post (34) onto the tube of the Front Main Frame (21) with four Washers (36), four Hexagon Socket Pan Head Cap Bolts (35), one Big Curve Washer (4), and one Hexagon Socket Pan Head Cap Bolt (72) that were removed.
  • Page 16 STEP 12 Remove four Cross Recessed Pan Head Bolts (29) from the Computer (28). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. STEP 13 Insert the Tension Control Knob (30) into the hole on the Computer (28). Attach the Tension Control Knob (30) into the Computer (28) with one Cross Recessed Pan Head Bolt (33) and one Big Washer (32) that were removed.
  • Page 17 STEP 14 It is recommended to have a second person assist with this step. One person should hold the Computer (28) in place while the other person to connect the wires. Connect the Extension Sensor Wire (26) and Extension Hand Pulse Sensor Wires II (27) to the wires that come from the Computer (28).
  • Page 18 STEP 15 Attach the Computer (28) onto the top end of the Front Handlebar Post (34) with four Cross Recessed Pan Head Bolts (29) from the Computer (28) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 19 Left Foot Pedal Right Foot Pedal STEP 16 The Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for Left. Select the Left Foot Pedal Strap (69) which has L marked on the side of the strap. Snap the three hole end of the strap onto the inside edge of the Left Foot Pedal (69).
  • Page 20 STEP 17 Remove eight Washers (36) and eight Hexagon Socket Pan Head Cap Bolts (72) from the Back and Seat Support Bracket (53). Remove bolts with the Allen Wrench provided. STEP 18 Insert the Seat Sliding Tube (52) into the bushings of the Rear Main Frame (46). Insert the Round Knob (60) and Triangle Knob (23) into knob holes.
  • Page 21 STEP 19 Attach the Back and Seat Support Bracket (53) onto the Seat Sliding Tube (52) with eight Washers (36) and eight Hexagon Socket Pan Head Cap Bolts (72) that were removed. Tighten bolts with the Allen Wrench provided.
  • Page 22 57 4 STEP 20 Attach the Rear Handlebar (68) onto the Back and Seat Support Bracket (53) with two Hexagon Socket Pan Head Cap Bolts (57), two Big Curve Washers (4), two Washers (36), and two Cap Nuts (3). Tighten bolts and cap nuts with the Allen Wrench and Multi Hex Tool with Phillips Screwdriver provided.
  • Page 23 50 49 STEP 21 Remove four Cross Recessed Pan Head Bolts (49) and four Big Washers (50) from the back of the Seat Cushion (47). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. Attach the Seat Cushion (47) onto the Back and Seat Support Bracket (53) with four Cross Recessed Pan Head Bolts (49) and four Big Washers (50) that were removed.

  • Page 24: How To Move The Recumbent Bike

    HOW TO MOVE THE RECUMBENT BIKE Rear Handlebar Transport Wheel CAUTION: Due to the size and weight of the recumbent bike, please moving it requires two people. One person stands in front of the recumbent bike, hold the front handlebars. The other person lifts the Rear Handlebar until the recumbent bike will roll on the transport wheels.

  • Page 25: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing one of the buttons or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select the functions of the computer. Press and hold the MODE button for 3 seconds to reset all data values to zero except the ODO data values.

  • Page 26: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. Tension Control Knob To decrease the tension, turn the tension control knob in a counterclockwise direction. Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer as needed to level the recumbent bike.

  • Page 27: Maintenance

    MAINTENANCE Cleaning The recumbent bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 28: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 29 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
