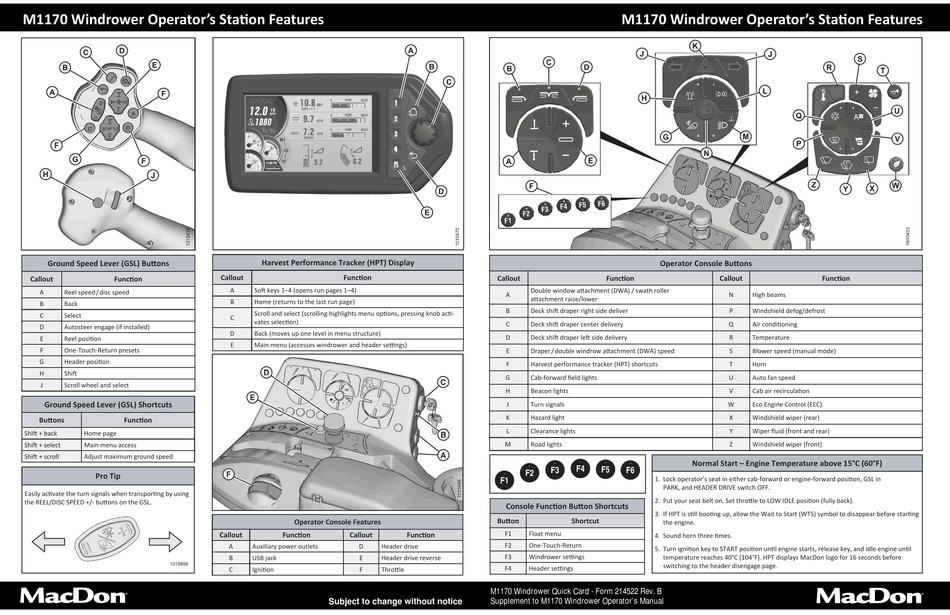

M1170 Windrower Operator's Sta on Features
Ground Speed Lever (GSL) Bu ons
Callout
Func on
A
Reel speed / disc speed
B
Back
C
Select
D
Autosteer engage (if installed)
E
Reel posi on
F
One-Touch-Return presets
G
Header posi on
H
Shi
J
Scroll wheel and select

Ground Speed Lever (GSL) Shortcuts

Bu ons
Func on
Shi + back
Home page
Shi + select
Main menu access
Shi + scroll
Adjust maximum ground speed
Pro Tip
Easily ac vate the turn signals when transpor ng by using
the REEL/DISC SPEED +/- bu ons on the GSL.

Harvest Performance Tracker (HPT) Display

Callout
Func on
A
So keys 1–4 (opens run pages 1–4)
B
Home (returns to the last run page)
Scroll and select (scrolling highlights menu op ons, pressing knob ac -
C
vates selec on)
D
Back (moves up one level in menu structure)
E
Main menu (accesses windrower and header se ngs)

Operator Console Features

Callout
Func on
Callout
A
Auxiliary power outlets
D
Header drive
B
USB jack
E
Header drive reverse
C
Igni on
F
Thro le
Subject to change without notice
Callout
Double window a achment (DWA) / swath roller
A
a achment raise/lower
B
Deck shi draper right side deliver
C
Deck shi draper center delivery
D
Deck shi draper le side delivery
E
Draper / double windrow a achment (DWA) speed
F
Harvest performance tracker (HPT) shortcuts
G
Cab-forward field lights
H
Beacon lights
J
Turn signals
K
Hazard light
L
Clearance lights
M
Road lights
Console Func on Bu on Shortcuts
Bu on
Shortcut
F1
Float menu
Func on
F2
One-Touch-Return
F3
Windrower se ngs
F4
Header se ngs
M1170 Windrower Quick Card - Form 214522 Rev. B
Supplement to M1170 Windrower Operator's Manual
M1170 Windrower Operator's Sta on Features
Operator Console Bu ons
Func on
Callout
N
High beams
P
Windshield defog/defrost
Q
Air condi oning
R
Temperature
S
Blower speed (manual mode)
T
Horn
U
Auto fan speed
V
Cab air recircula on
W
Eco Engine Control (EEC)
X
Windshield wiper (rear)
Y
Wiper fluid (front and rear)
Z
Windshield wiper (front)
Normal Start – Engine Temperature above 15°C (60°F)
1. Lock operator's seat in either cab-forward or engine-forward posi on, GSL in
PARK, and HEADER DRIVE switch OFF.
2. Put your seat belt on. Set thro le to LOW IDLE posi on (fully back).
3. If HPT is s ll boo ng up, allow the Wait to Start (WTS) symbol to disappear before star ng
the engine.
4. Sound horn three mes.
5. Turn igni on key to START posi on un l engine starts, release key, and idle engine un l
temperature reaches 40°C (104°F). HPT displays MacDon logo for 16 seconds before
switching to the header disengage page.
Func on
