Installing the System on a DIN Rail
Reserve at least 55 mm of space above the DIN rail to ensure that
there is enough room to install the unit.

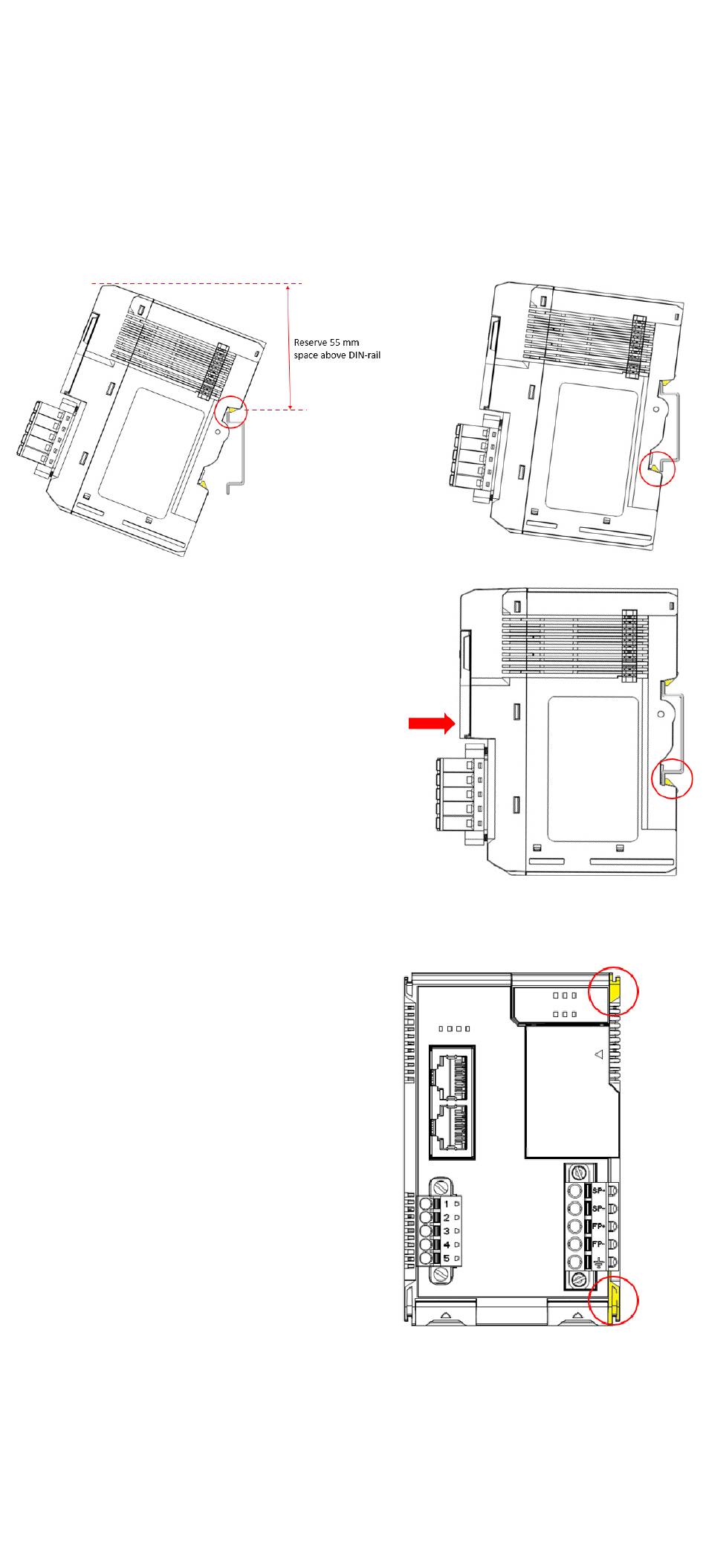

Step 1: Hook the top mounting clip of the unit onto the DIN rail and
then rotate the unit downwards until the bottom mounting clip comes in
contact with the DIN rail.
Step 2: Push the unit towards the
DIN rail until the mounting clip snaps
into place.
Installing a 45M Module on a DIN Rail
Step 1: Align the 45M module
side by side with the head/CPU
module, making sure that the
upper and lower rails are hooked
together.
