ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-578103-RevB
ECO #: W20-0069
INSTALLATION INSTRUCTIONS
APPLICATION:
2015-2020 Ford F-150
PART NUMBER:
57-81035
CONTENT
DESCRIPTION
Hoop/Screen Assembly
Mounting Bracket (Driver's Side)
Mounting Bracket (Passenger's Side)
M12 Bolt Plate
M8 Hex Head Bolt Long
M8 Hex Nylock Nut
M8 Flat Washer Large
M12 Hex Nut
M12 Lock Washer
M12 Flat Washer
M12 Fish Wire
M12 Plastic Retainers
M6 Flat Washer
M6 Button Head Bolts
M6 Split Lock Washer
1

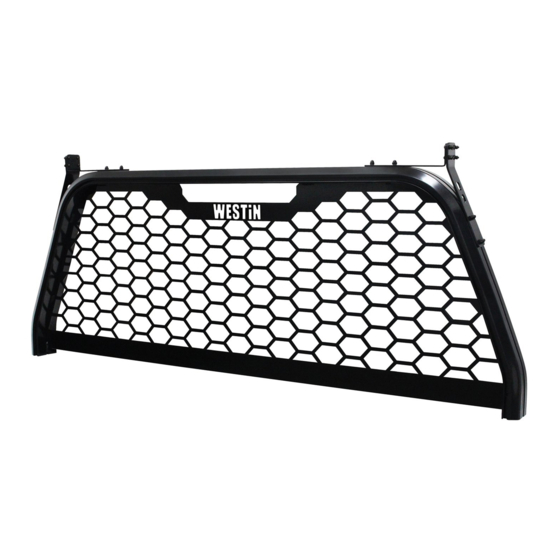

HLR TRUCK RACK
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10 mm Wrench
10 mm Socket
Ratchet
19mm Wrench
DATE: 06/17/2020
