Westin WJ2 Installation Instructions Manual

ITEM QUANTITY
1 1
2 2
3 8
4 8
5 4
6 4
7 4
8 4
9 4
10 4
11 4
12 20
13 4
14 4
15 6
16 6
17 12
18 1
19 6
20 8
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1 (LED)
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-598011-RevB ECO #: W18-0118
INSTALLATION INSTRUCTIONS

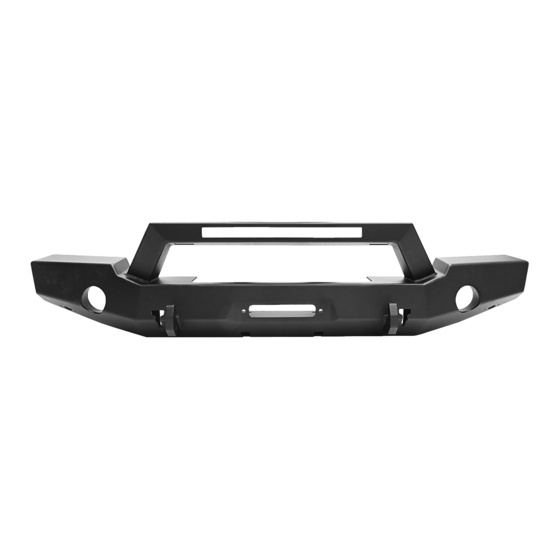

WJ2 FULL-WIDTH FRONT BUMPER
APPLICATION:
2018 Jeep Wrangler JL
PART NUMBER:
59-80105, 59-80115, 59-80125
CONTENT
DESCRIPTION
FRONT BUMPER ASSEMBLY
LED MOUNTING BRACKET *59-80125 only
M10 FLAT WASHER
M10 SPLIT LOCK WASHER
M10 HEX HEAD CAP SCREW
M10 HEX NUT
M6 SERRATED FLANGE NUT
M6 HEX SOCKET BUTTON HEAD BOLT
M6 NYLOCK NUT
SMALL M6 FLAT WASHER
M4 HEX NUT
M4 FLAT WASHER
M4 SPLIT LOCK WASHER
SHORT M4 HEX SOCKET BUTTON HEAD SCREW
LONG M4 HEX SOCKET BUTTON HEAD SCREW
M4 HEX SOCKET CAP SCREW
M4 NYLOCK NUT
RUBBER GROMMET
NYLON SPACER
LARGE M4 FLAT WASHER
1
ITEM 2
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
7MM SOCKET
7MM WRENCH
10MM SOCKET
10MM WRENCH
13MM SOCKET
13MM WRENCH
16MM SOCKET
16MM WRENCH
ALLEN WRENCH
RATCHET
TORQUE WRENCH
DATE: 08/17/18
