REMKO Smart-Control Touch

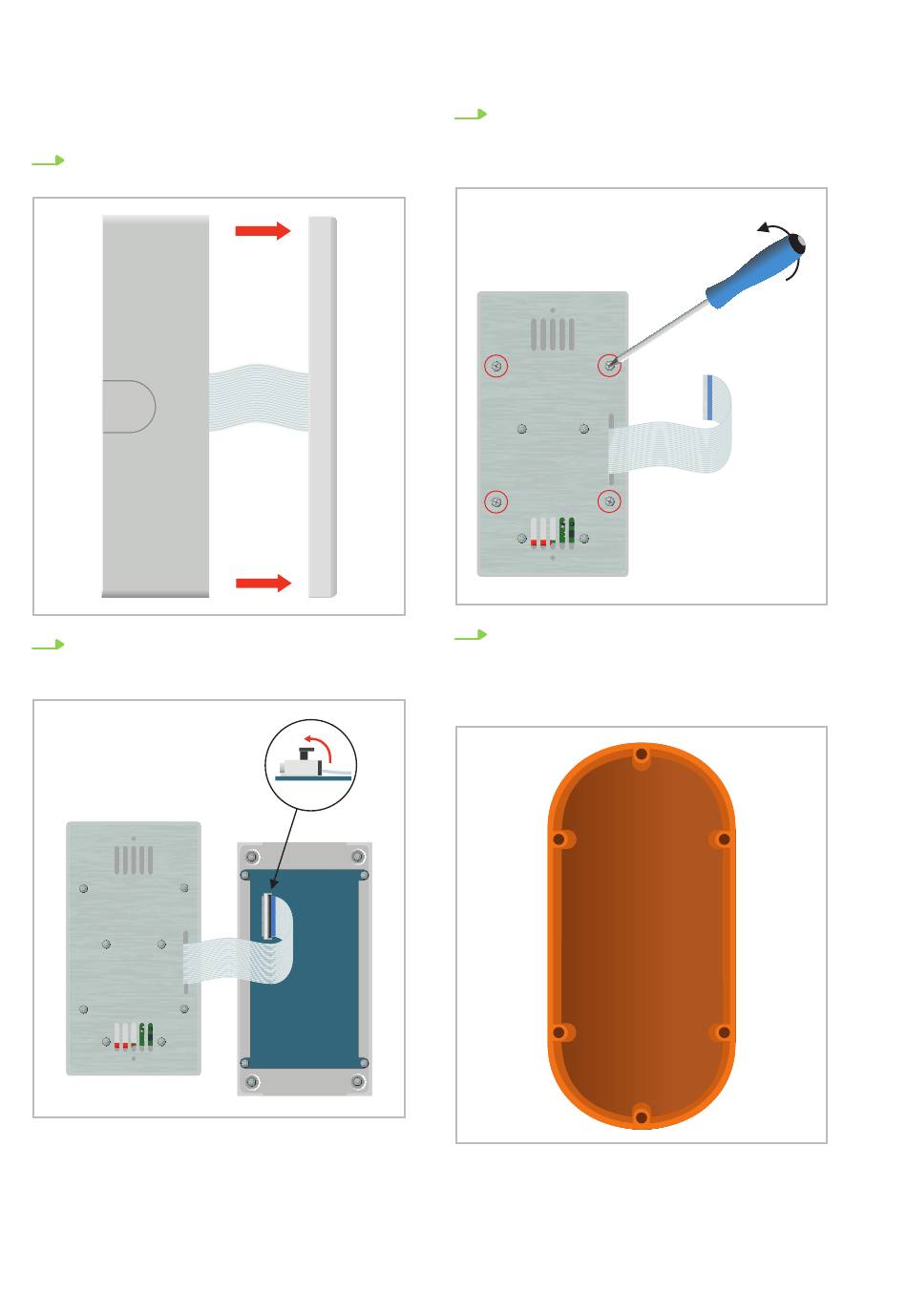

The flush-mounted installation can be carried out
as follows:
1. Pull through the aluminium frame fixed by
magnets and remove from the housing.
2. Release the grey lever of the terminal block
at the back of the touch display by pulling it
up and remove the ribbon cable.
18
3. Remove the four marked Phillips screws and
then pull the mounting plate together with the
electronics out of the surface-mounted
housing.
4. The flush-mounted casing can now be
attached to the intended installation position.
Then connect the electrical wiring as
described in the chapter "Electrical connec-
tion".
