REMKO Smart Control Touch Operating And Installation Instructions page 13

Remote control for heat pumps
Hide thumbs Also See for Smart Control Touch:
Table of Contents

Advertisement

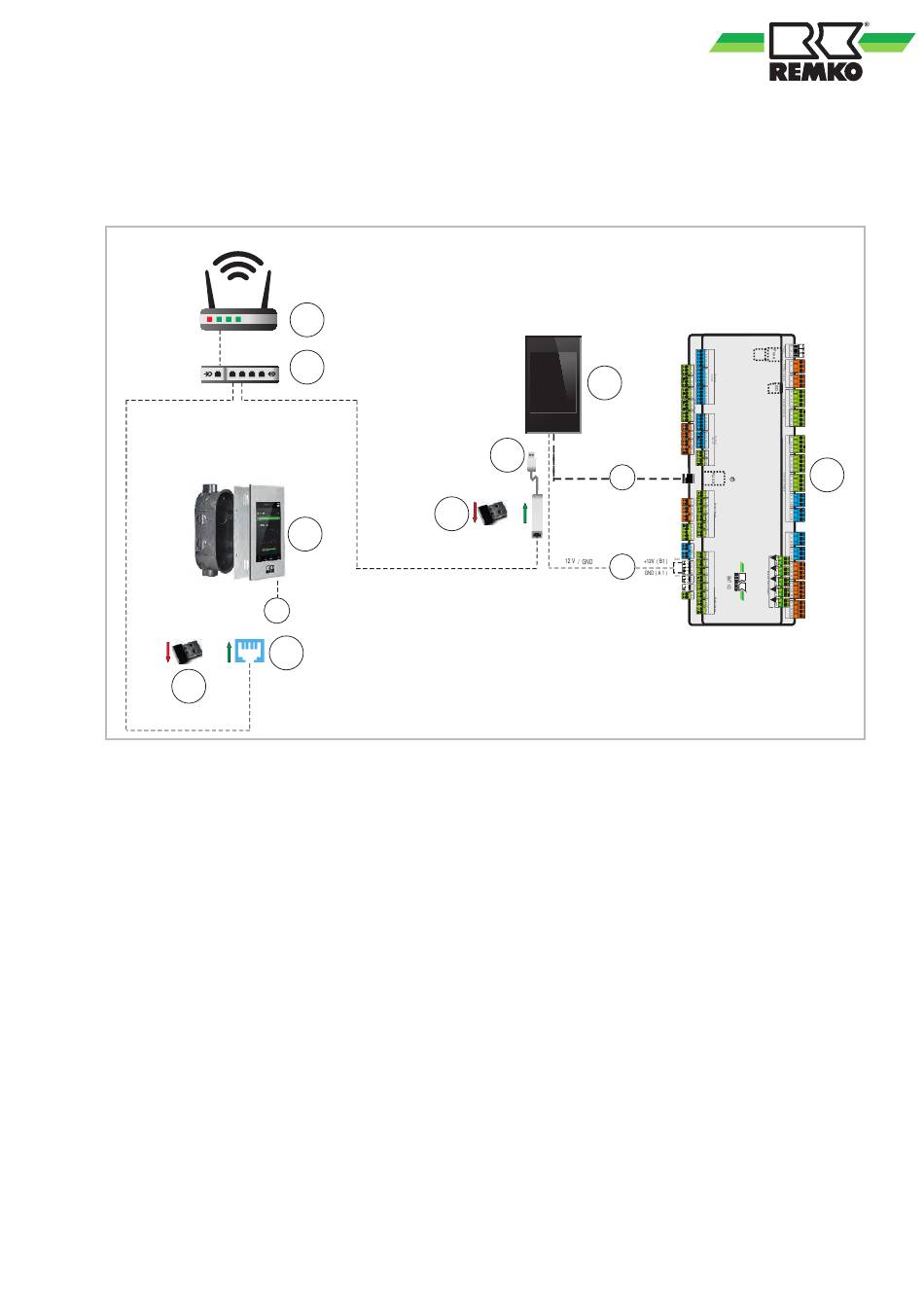

Basic schema of the Smart Control regulation system with remote control and connection via LAN
cable (patch cable)
Functions: Smart Control Touch connection of the heat pump to the customer's router via LAN cable (patch
cable) and remote control with LAN cable (patch cable) in conjunction with a customer's switch.
1.
WLAN
3
G
H
A: Heat pump I/O module
B: Smart Control Touch heat pump
C: Customer's WLAN router with Internet connec-
tion
D: Customer's switch
E: Remote control
C
D
H
E
B
Pufferspeicher
Pufferspeicher
F
1
2
F: Ethernet adapter
G: RJ 45 connection
H: WLAN stick (remove)
1: Ethernet interface/patch cable (LAN cable)
2: Power supply: +12V, terminal B1/A1
3: 12V/GND connection to customer's transformer
A
