REMKO Smart-Control Touch

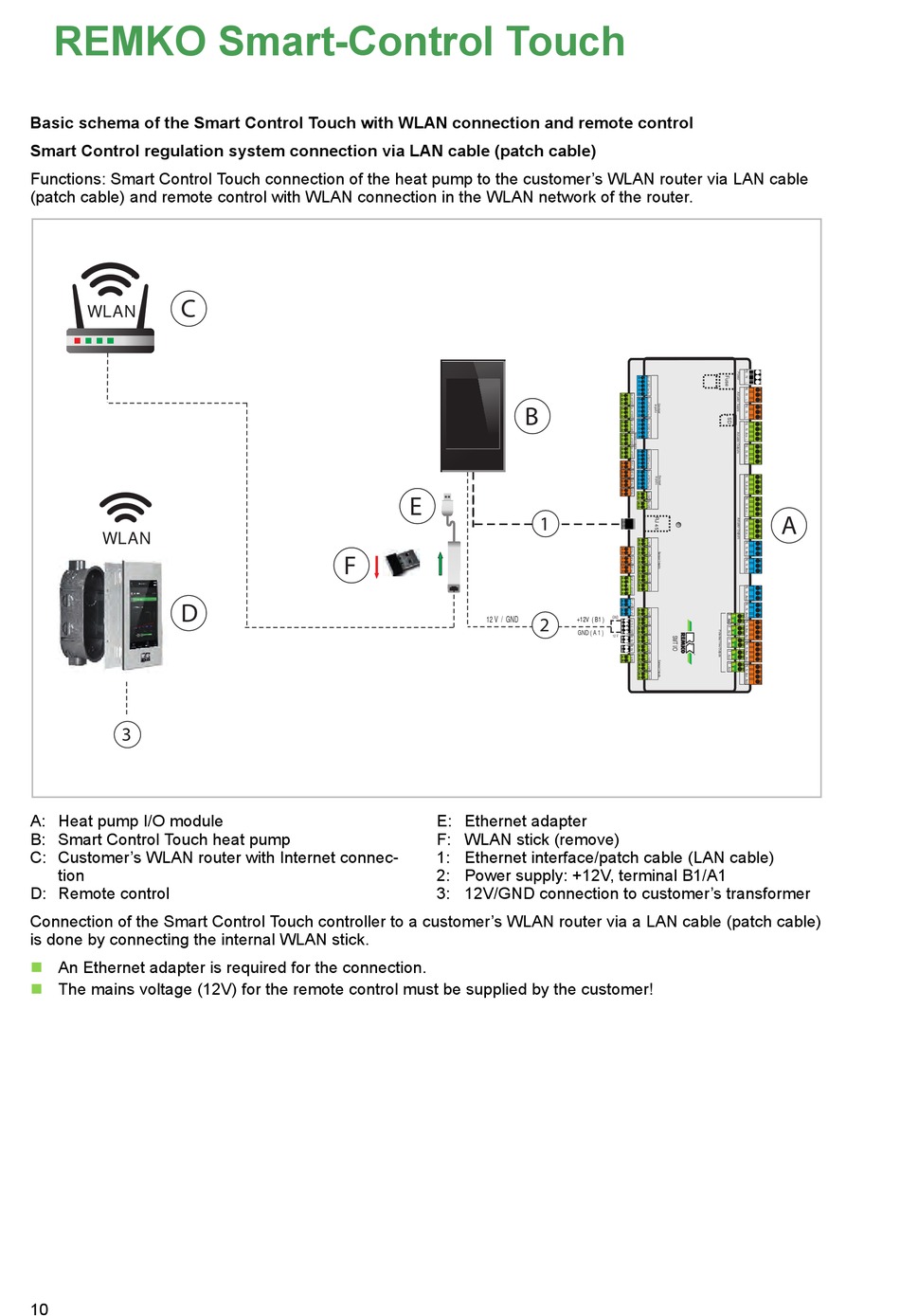

Basic schema of the Smart Control Touch with WLAN connection and remote control
Smart Control regulation system connection via LAN cable (patch cable)
Functions: Smart Control Touch connection of the heat pump to the customer's WLAN router via LAN cable
(patch cable) and remote control with WLAN connection in the WLAN network of the router.
1.
C
WLAN
WLAN
D
3
A: Heat pump I/O module
B: Smart Control Touch heat pump
C: Customer's WLAN router with Internet connec-
tion
D: Remote control
Connection of the Smart Control Touch controller to a customer's WLAN router via a LAN cable (patch cable)
is done by connecting the internal WLAN stick.
n An Ethernet adapter is required for the connection.
n The mains voltage (12V) for the remote control must be supplied by the customer!
10
Pufferspeicher Pufferspeicher
E
F
E: Ethernet adapter
F: WLAN stick (remove)
1: Ethernet interface/patch cable (LAN cable)
2: Power supply: +12V, terminal B1/A1
3: 12V/GND connection to customer's transformer
B
1
2
A
