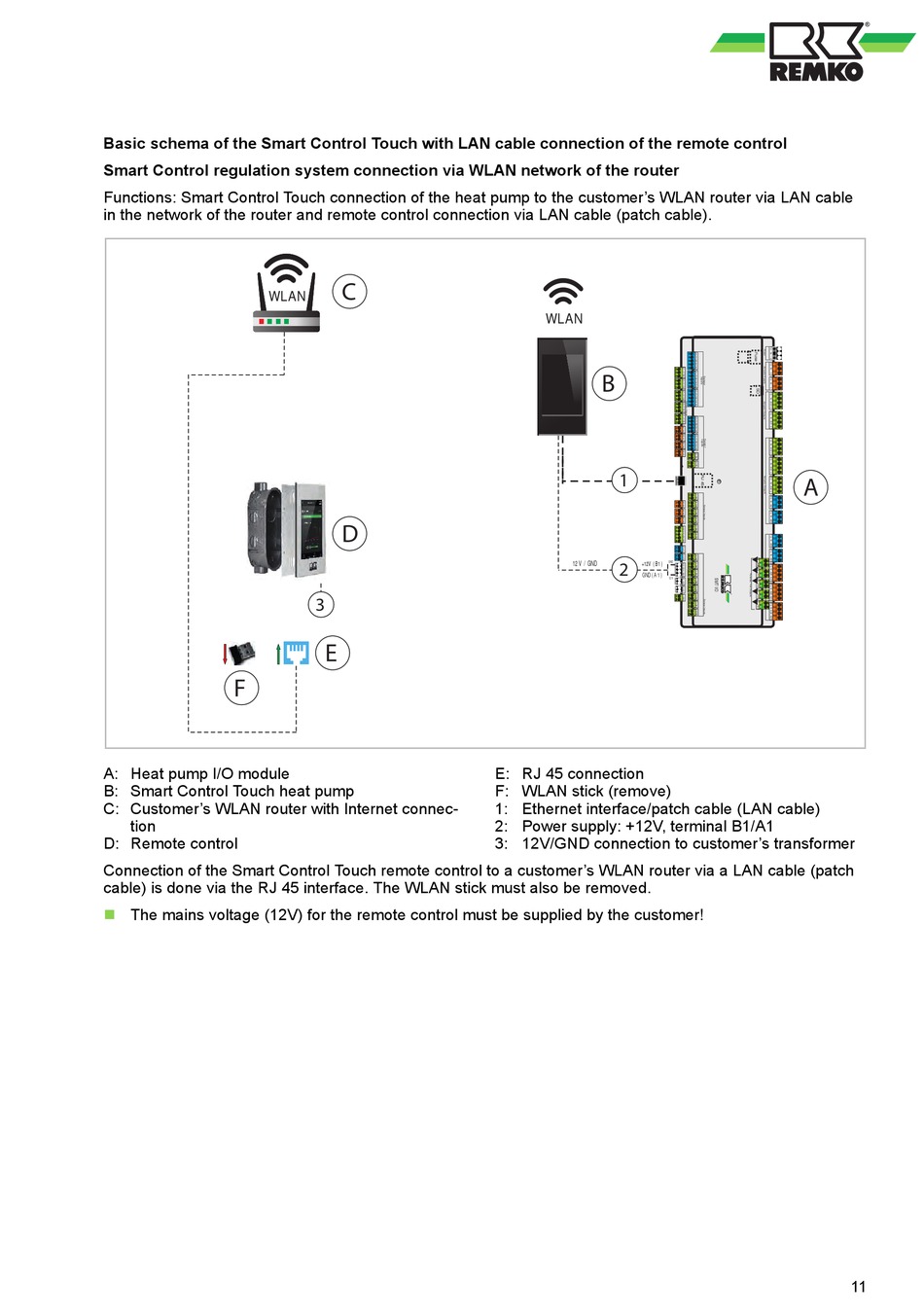

Basic schema of the Smart Control Touch with LAN cable connection of the remote control
Smart Control regulation system connection via WLAN network of the router
Functions: Smart Control Touch connection of the heat pump to the customer's WLAN router via LAN cable
in the network of the router and remote control connection via LAN cable (patch cable).
WLAN
F
A: Heat pump I/O module
B: Smart Control Touch heat pump
C: Customer's WLAN router with Internet connec-
tion
D: Remote control
Connection of the Smart Control Touch remote control to a customer's WLAN router via a LAN cable (patch
cable) is done via the RJ 45 interface. The WLAN stick must also be removed.
n The mains voltage (12V) for the remote control must be supplied by the customer!
C
D
3
E
WLAN
B
Pufferspeicher Pufferspeicher
1
2
E: RJ 45 connection
F: WLAN stick (remove)
1: Ethernet interface/patch cable (LAN cable)
2: Power supply: +12V, terminal B1/A1
3: 12V/GND connection to customer's transformer
A
