Eliminator Lighting Motion 60 LED User Manual

I
ntroduction:

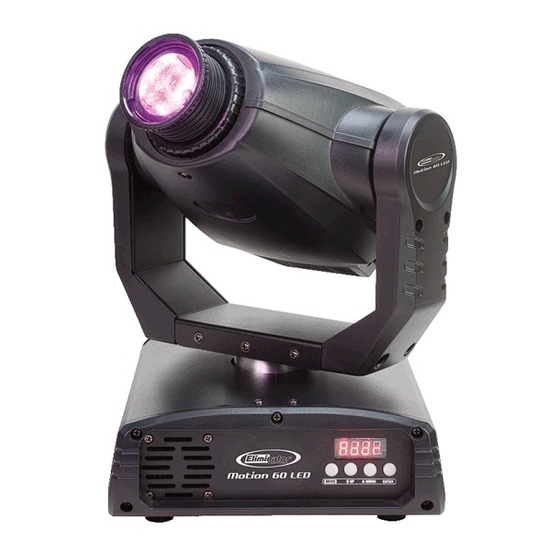

This unit can be either an 8 or 13 channel DMX intelligent moving head unit. The Motion 60 LED has 4 operat-
ing modes; sound active mode, show mode, auto run mode or it can be controlled by a DMX controller. The
unit can be run as a stand alone unit or in a Master/Slave configuration. This unit has been tested and the
lamp has been installed at the factory, there is no assembly required. The unit is ready to be plugged in to a
power outlet. There are no dipswitch settings for Master/Slave mode, just simply link the units together. To
enhance the beams effects you can use a fog machine. This unit looks good in pairs.
CAUTION! Please read and understand these instructions before installing or operating this unit.
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.
Fuse Replacement: Locate and remove
the unit's power cord. Once the cord has
been removed located the fuse holder
located inside the power socket. Insert
a flat-head screw driver into the power
socket and gently pry out the fuse holder.
Remove the bad fuse and replace with a
new one. The fuse holder has a built-in
socket for a spare fuse be sure not to
confuse the spare fuse with active fuse.
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
Motion 60 LED

SPECIFICATIONS:

Model:
LED:
Weight:
Size:
Fuse:
Supply Voltage:
Power Consumption:
Working Position:
Duty Cycle:
DMX Channels:
Gobos:
Colors:
Warranty:
Motion 60 LED
1 x 60W White LED
20lbs./ 9.0kgs.
10.75" (L) x 8.85" (W) x
15.75" (H)
2 Amp
110V-130V 50/60Hz
100W
Any Safe position
None
2 DMX Channel Modes:
8 Channel Mode &
13 Channel Mode
7 + Spot
8 Colors + White
1 Year
