H-2709, H-2710, H-2711
π
H-2712, H-2713, H-2382
H-2383, H-2384, H-3054
SCOUT PRO
BALANCE SCALE
CONTROL PANEL
CONTROL FUNCTIONS
BUTTON
PRIMARY FUNCTION
Turns on balance.
If balance is on, zeros the display.
Turns off balance. OFF will be displayed after the
SECONDARY FUNCTION
button is held for 3 seconds.
In Display Hold or Totalize mode, a long press exits
the more without turning the balance off.
An extended long press (>5 seconds) during power
up will cause the balance to enter the Menu mode.
MENU FUNCTION
A short press in used to accept a setting on a display.
RELEASING THE SHIPPING LOCK
On the top of the balance, turn the pointer 90 degrees
counterclockwise to unlock. (See Figure 1)
Locked
Position
Pointer
Unlocked
Position
PAGE 1 OF 8
1-800-295-5510
uline.com

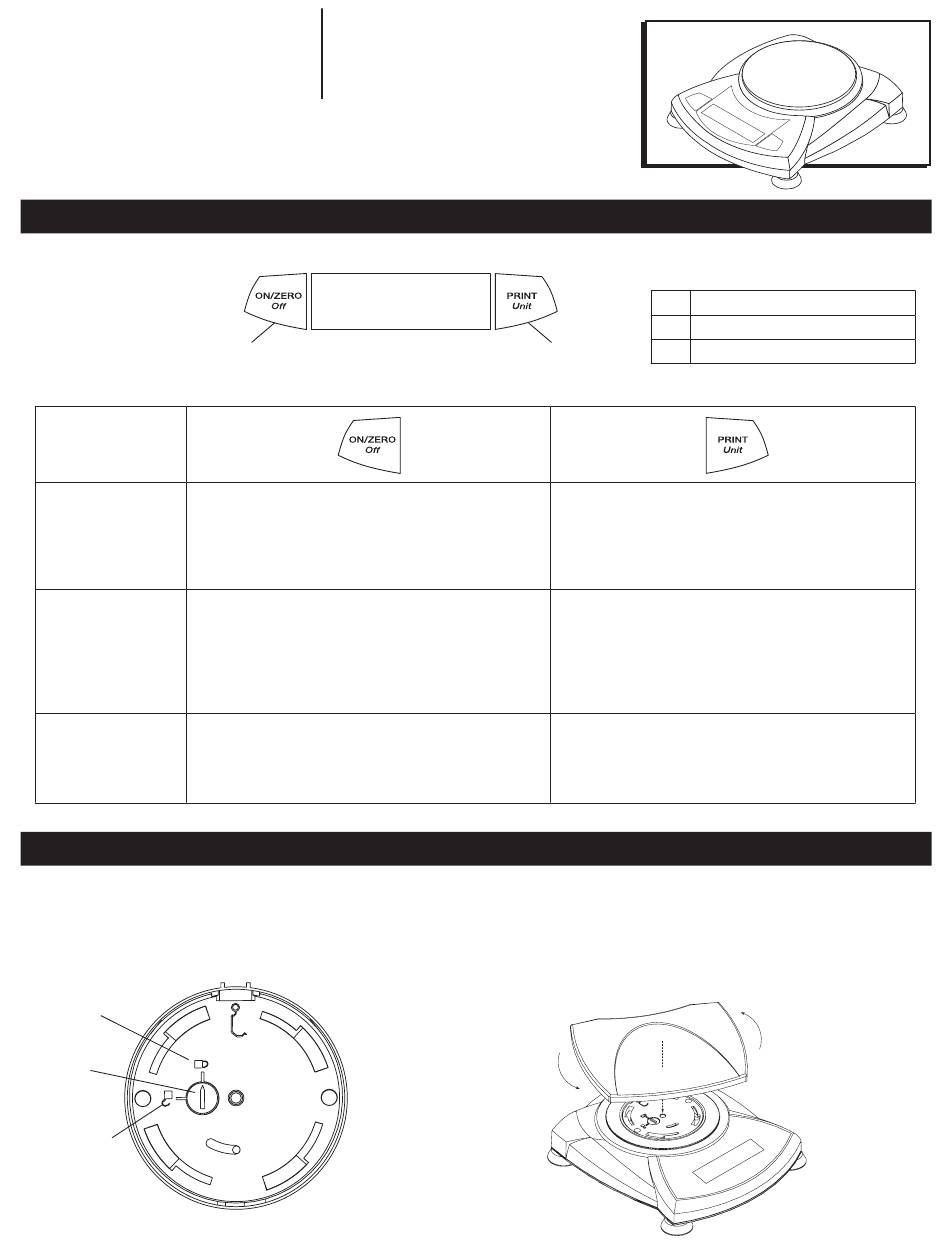

OVERVIEW OF CONTROLS
1
ON/ZERO
OFF
Figure 1
2
Sends print command to interface port.
If Display Hold or Totalize mode is active,
a short press will enter that mode.
Press and hold scrolls through units.
Release on desired unit.
Will bypass setting shown on display.
SETUP
PLATFORM INSTALLATION
Balances with a rectangular platform are placed
into the subplatform as shown and rotated
counterclockwise until they lock. (See Figure 2)
CONTROL PANEL PARTS
#
DESCRIPTION
1
ON/ZERO Off Button
2
Print Unit Button
PRINT
UNIT
Figure 2
0415 IH-2709
