H-5819, H-5820
π
H-5821, H-5822

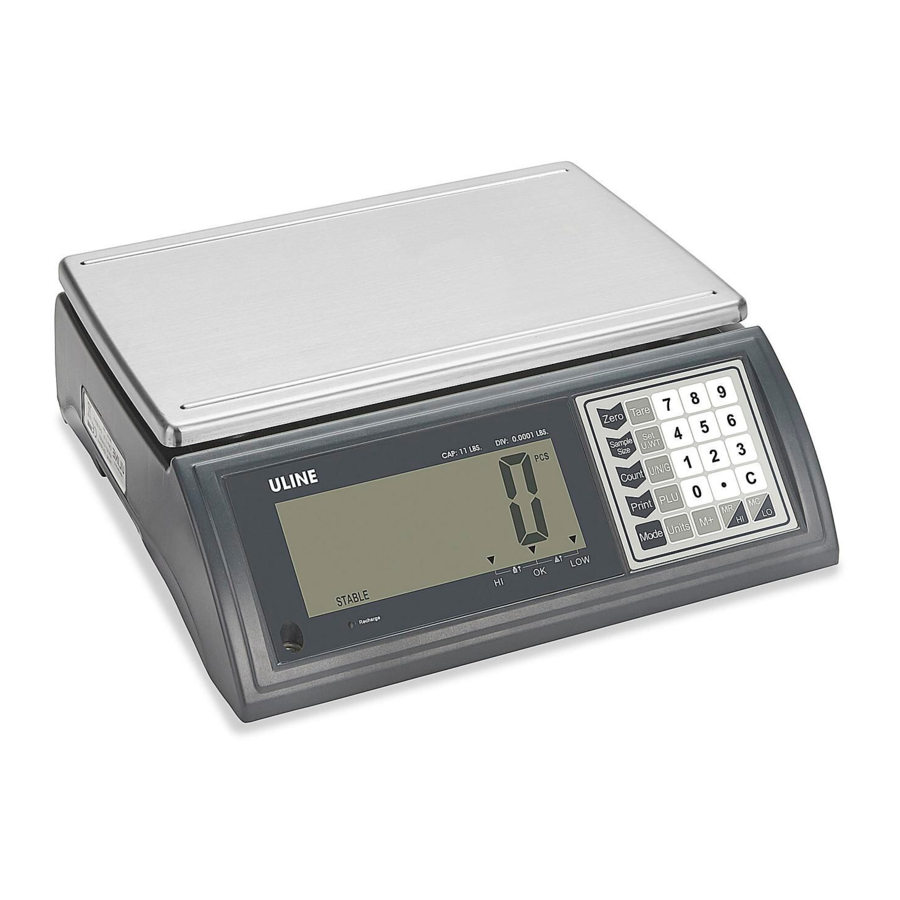

DELUXE
COUNTING SCALE
1
Recharge
2 3
4
5
DISPLAY DEFINITIONS
#
NAME
DESCRIPTION
Displays the total weight, unit weight and
1
DISPLAY
number of counted items.
Battery indicator. Indicates battery is low and
2
needs to be recharged.
Stable indicator. Indicates the scale weight is
3
STABLE
stable.
Charging indicator. Indicates the battery
4
RECHARGE
charging status.
5
ZERO
Zero indicator. Indicates the scale is at zero.
Gross indicator. Indicates scale is displaying
6
GROSS
the gross weight.
Net indicator. Indicates scale is displaying the
7
NET
net weight.
Limits indicator. Indicates the High-Low limits in
8
HI / OK / LOW
weighing and counting.
Accumulation indicator. Indicates the scale is
9
M+
in the accumulation mode.
Weighing Unit indicator. Indicates current
10
LB / OZ / G / KG
weighing unit.
Automatic Accumulation indicator. Indicates
11
AUTO
the scale is in automatic accumulation mode.
Counting indicator. Indicates the scale is in
12
PCS
the counting mode.
PAGE 1 OF 8
1-800-295-5510
uline.com

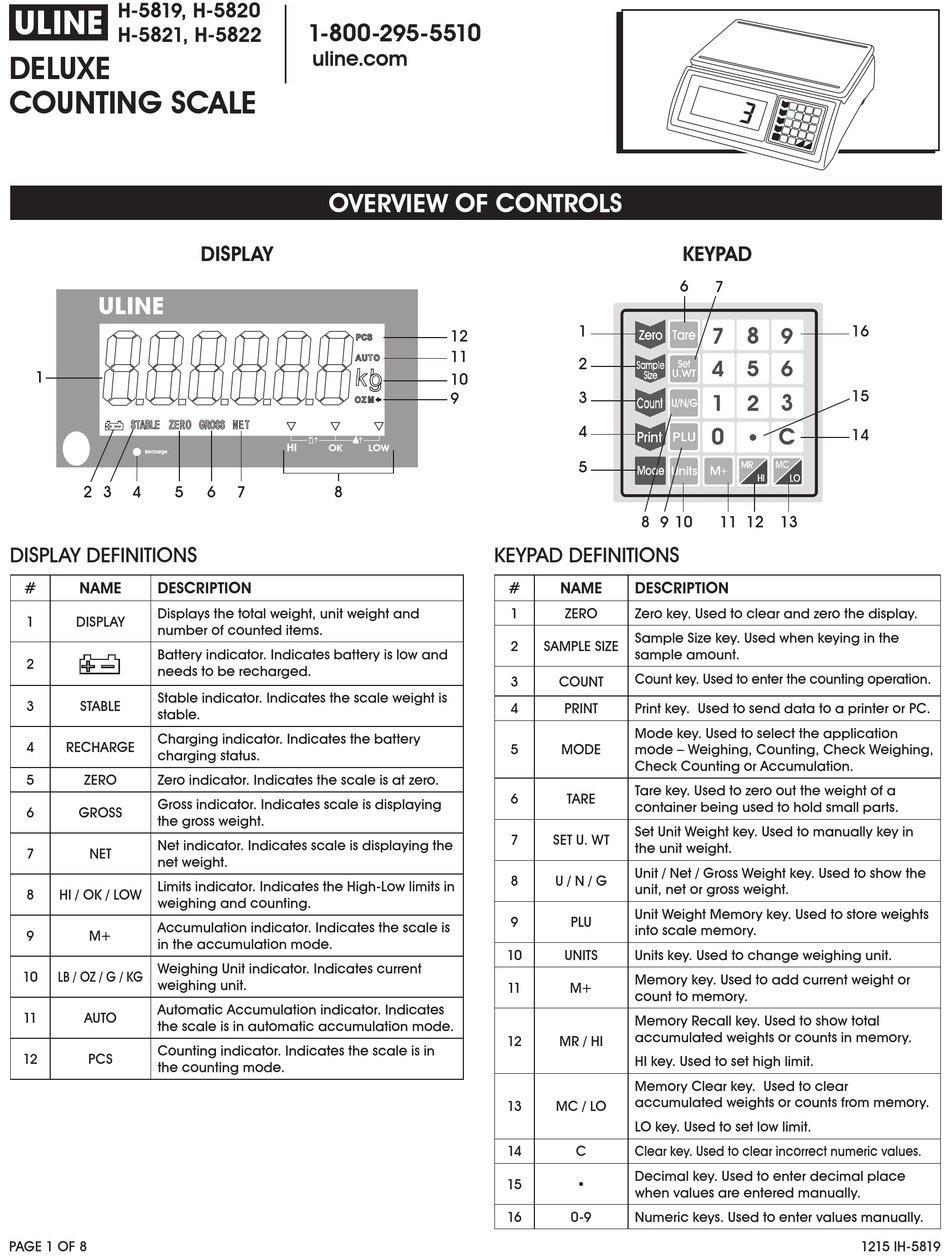

OVERVIEW OF CONTROLS
DISPLAY
HI
OK
LOW
6
7
8
1
12
11
2
10
9
3
4
5
KEYPAD DEFINITIONS
#
NAME
1
ZERO
2
SAMPLE SIZE
3
COUNT
4
PRINT
5
MODE
6
TARE
7
SET U. WT
8
U / N / G
9
PLU
10
UNITS
11
M+
12
MR / HI
13
MC / LO
14
C
15
16
0-9
KEYPAD
6
7
7 8 9
4 5 6
1 2 3
0 • C
8
9
10
11 12 13
DESCRIPTION
Zero key. Used to clear and zero the display.
Sample Size key. Used when keying in the
sample amount.
Count key. Used to enter the counting operation.
Print key. Used to send data to a printer or PC.
Mode key. Used to select the application
mode – Weighing, Counting, Check Weighing,
Check Counting or Accumulation.
Tare key. Used to zero out the weight of a
container being used to hold small parts.
Set Unit Weight key. Used to manually key in
the unit weight.
Unit / Net / Gross Weight key. Used to show the
unit, net or gross weight.
Unit Weight Memory key. Used to store weights
into scale memory.
Units key. Used to change weighing unit.
Memory key. Used to add current weight or
count to memory.
Memory Recall key. Used to show total
accumulated weights or counts in memory.
HI key. Used to set high limit.
Memory Clear key. Used to clear
accumulated weights or counts from memory.
LO key. Used to set low limit.
Clear key. Used to clear incorrect numeric values.
Decimal key. Used to enter decimal place
when values are entered manually.
Numeric keys. Used to enter values manually.
16
15
14
1215 IH-5819
