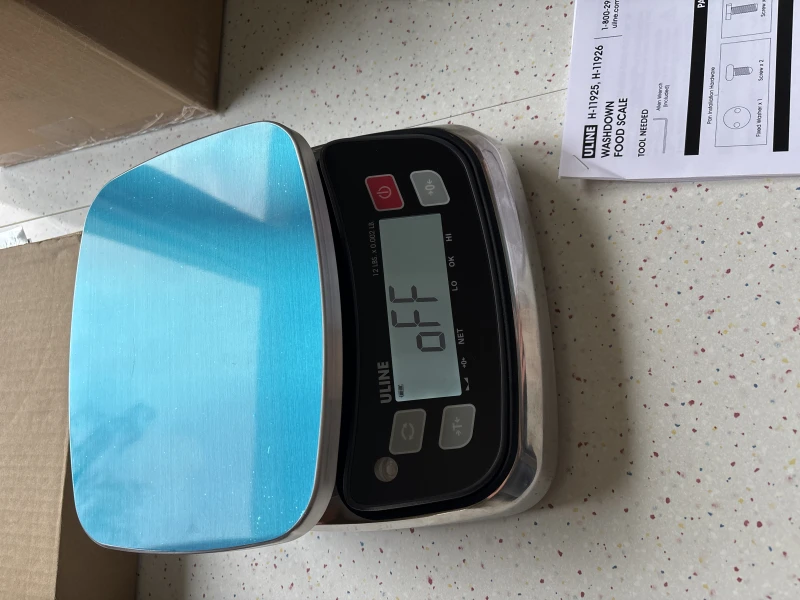

U-Line H-11925 Manual

H-11925, H-11926
WASHDOWN
FOOD SCALE
TOOL NEEDED
Allen Wrench
(included)
Pan Installation Hardware
Fixed Washer x 1
WARNING! Disconnect all power to this unit
before installing, cleaning or servicing. Failure
to do so could result in bodily harm or damage
to the unit.
• Only qualified persons should service this scale.
• Do not place the scale in direct sunlight.
• Verify voltage and receptacle type are correct
for the scale.
• Do not use any other type of power adaptor
than the one designed for this scale.

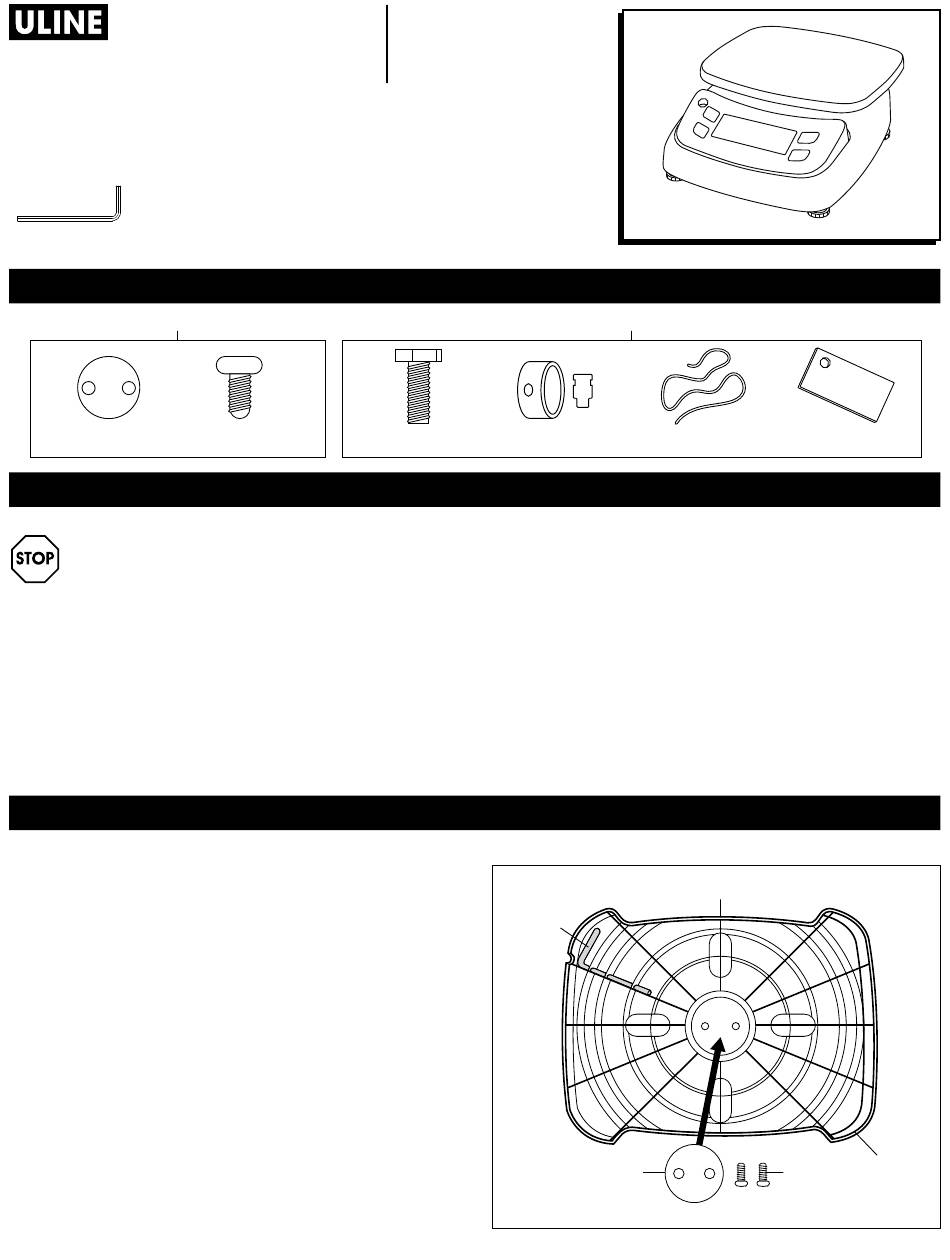

PAN INSTALLATION
1. Remove stainless steel pan and plastic pan support
from carton.
2. Pull wrench (1) out from plastic pan support (4).
(See Figure 1)
3. Place fixed washer (2) on the center of
plastic pan support (4).
4. Secure fixed washer (2) with two screws (3).
5. Put the plastic pan support on the scale base.
6. Use the wrench (1) to tighten the screws (3).
7. Replace wrench (1) into slot in plastic pan support (4).
PAGE 1 OF 33
Screw x 2
1-800-295-5510
uline.com
PARTS
Sealing Hardware (See "Legal For Trade" on page 8)
Screw x 1 Seal x 1
SAFETY
• Pluggable equipment must be installed near an
easily accessible socket outlet.
• Avoid unstable power sources. Do not use
near large users of electricity, such as welding
equipment or large motors.
• Avoid sudden temperature changes, vibration,
wind and water.
• Avoid heavy radio frequency noise.
• Keep the scale clean.
SETUP
Figure 1
1
Wire x 1
Plastic Pan Support
2 3
Plate x 1
4
