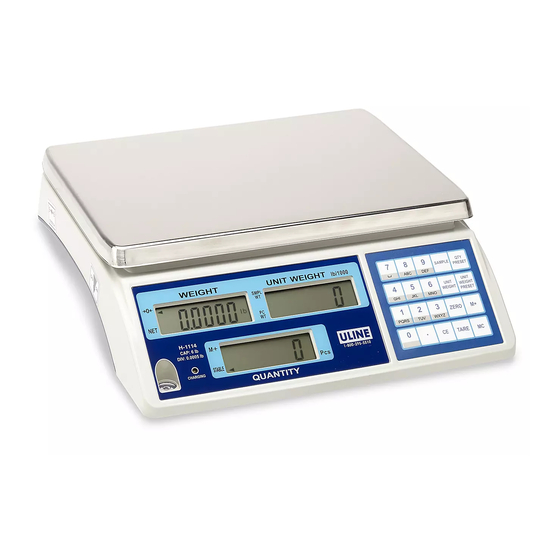

U-Line H-1114 Manual

H-1114, H-1115
π
H-1116, H-1117
INDUSTRIAL COUNTING
SCALE
For best performance, the scale should be located in
a cool, dry place that is free from excessive air currents,
corrosives, vibration and temperature or humidity
extremes.
WARNING! DO NOT place the scale:
• Next to open windows or doors.
• Near air-conditioning or heating vents.
• Near vibrating, rotating or reciprocating
equipment.
• Near magnetic fields or equipment
generating magnetic fields.
• On an unstable work surface.
• In dusty locations.
• In direct sunlight.
PREPARING TO USE THE SCALE
1. Put the scale on a firm, level surface to obtain
accurate weight readings.
LEVEL THE SCALE
• Place the scale on a flat, level surface.
• Using the leveling bubble on the left front panel,
adjust the legs under scale until bubble is centered.
PAGE 1 OF 30
1-800-295-5510
uline.com
BEFORE USING THE COUNTING SCALE
ACTIVATE SCALE
Pour le français, consulter le pages 21-30.
2. Adjust the four leveling feet so scale platform is level.
3. Avoid placing scale in direct sunlight or near the
ventilating system exhaust port.
4. Before turning scale on, remove any weight on the
scale platform.
5. Once scale is turned on, it goes through an LCD test
and re-zeros.
6. Please allow scale to warm up 15-20 minutes before use.
7. When appears on screen, scale needs
recharging.
8. Place items being weighed in center of the platform
for accurate weighing. Overall dimensions of the
item should not exceed the platform dimensions.
RECHARGEABLE BATTERY
Powered by 115 VAC or rechargeable battery.
Scale operates up to 120 hours on a fully charged
battery. Recharge the battery when the
or every three months when the scale is not being used
for long periods of time.
TURN SCALE ON
• Nothing should be on the scale.
• Press ON/OFF located under the left side of the scale.
• Scale counts down to zero and displays the version
on the WEIGHT display
• Allow scale to warm up for 15 to 20 minutes before use.
Para Español, vea páginas 11-20.
appears
.
1119 IH-1114
