ROBOSUGAR CPA-10(A) Sep-18
ANNEX A.
DUMPING MECHANISM SETTING UP

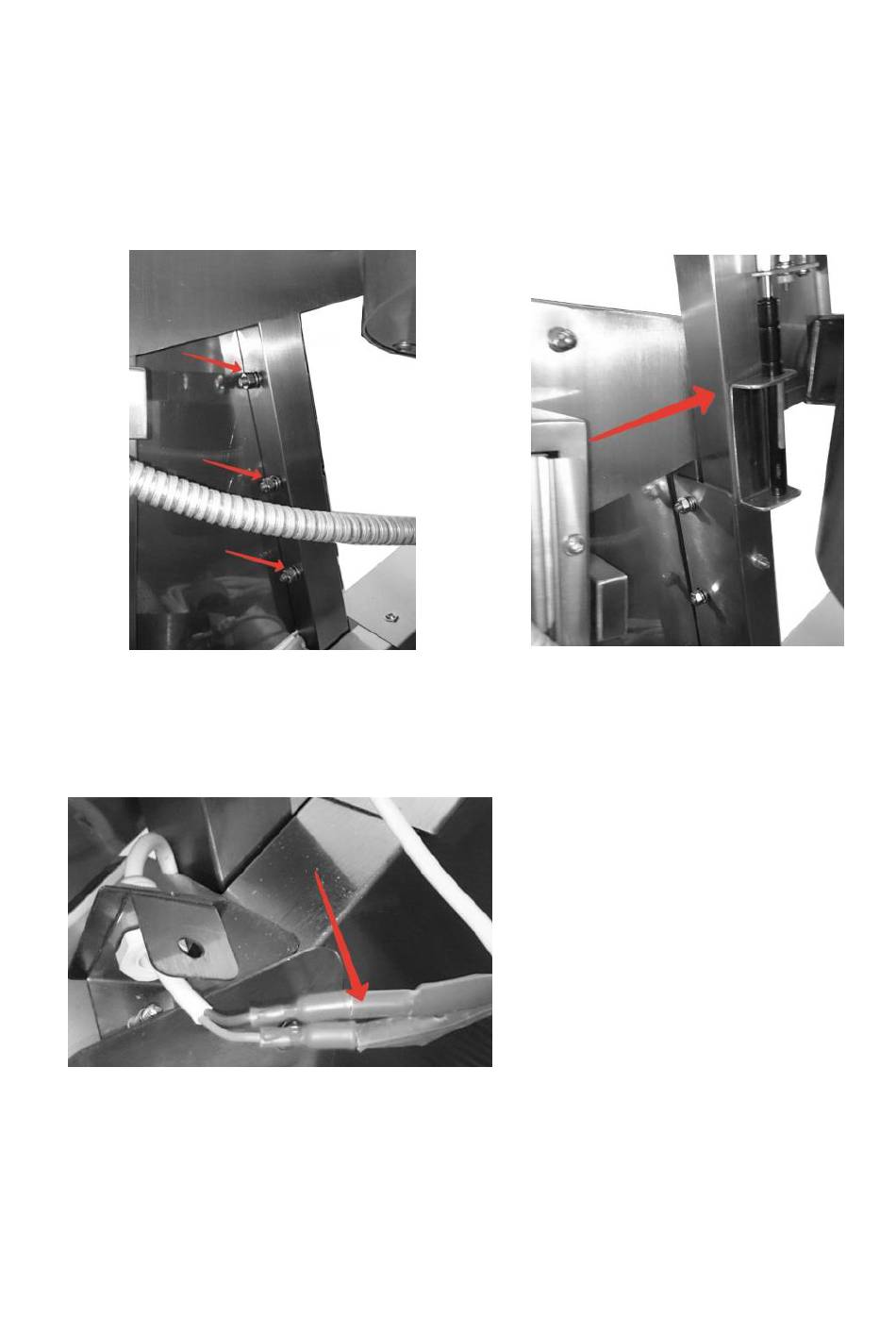

1. Remove three fasteners; take screws out:
2. Mount the pillar, fix it with the fasteners.
3. Connect electric magnet. Wire colour codes are not important.
Insulate joints if needed.
5. Stuff wires inside the pillar, then put end-piece with the wire into the
end of pillar and tighten the fixing screw:
18
