Assembly:
Paint and decorate all the parts before assembly - We recommend using acrylic paints and varnish !

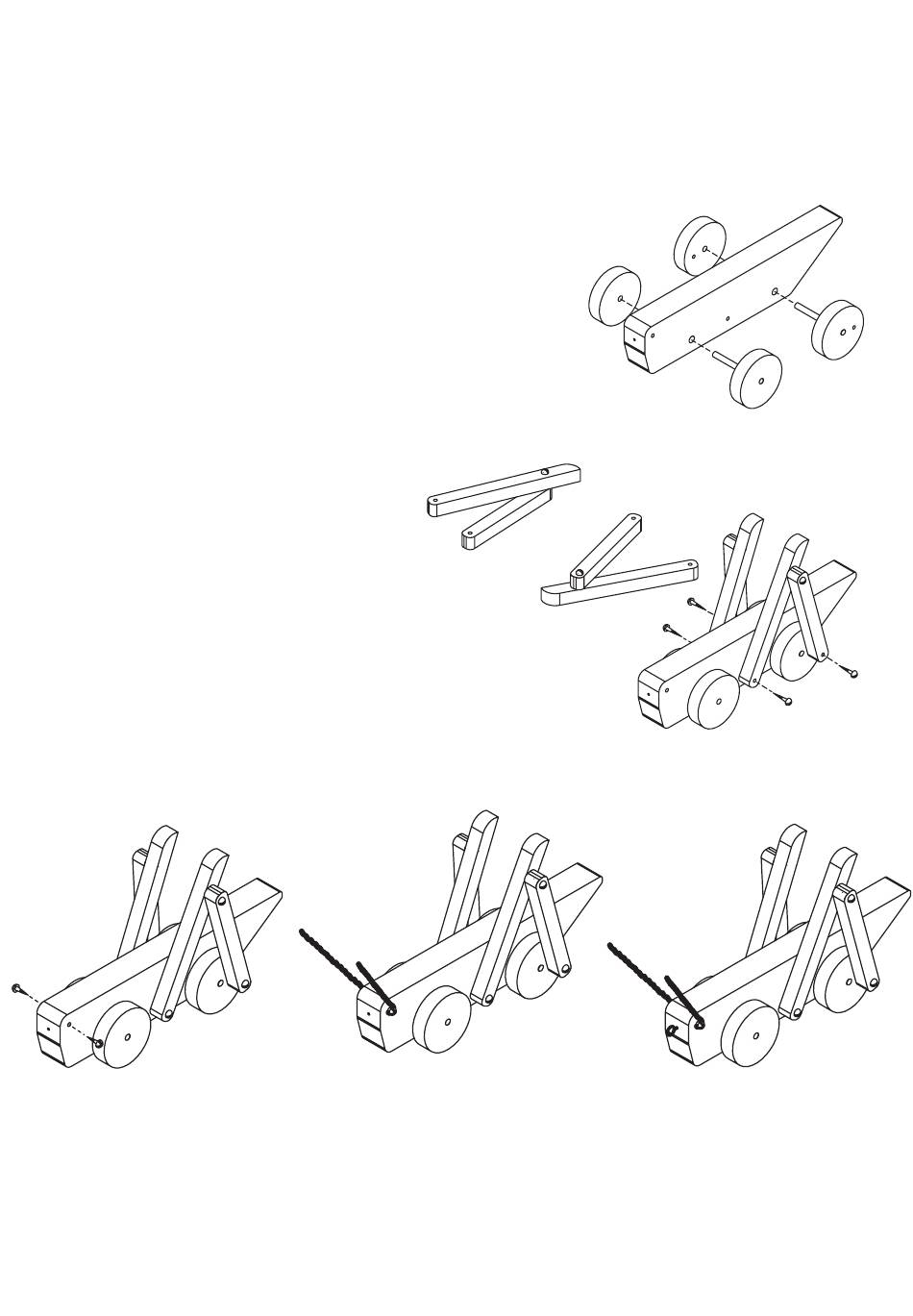

5. Place the wooden wheels on the axles as shown in diagram 7,
glue them and insert the axles through the body of the grasshop-
per. Finally mount and glue the wheels on the other side of the
grasshopper.
Note:
Before gluing the rear wheels the 2mm holes should be set at 180
degrees to each other
6. Join the parts (2a+2b) as shown in dia 8 with
a screw (5)
Note: that the legs on either side should be
the mirror image of each other.
7. Take the legs and mount them with two screws (5) to the side of the body.
The long piece (2b) is screwed to the body, the shorter length (2a) is screwed to
the rear wheel ( Dia 9)
Note :
Do not overtighten the screws - tighten the legs so that they without undue play
Dia. 10
8. To fix the feelers use 2 screws (5) in
the pre-made holes in the head
carefully about ca. 3-4mm ( dia 10)
D111644#2
INSTRUCTIONS
40
ø4 ø2
40
12
ø4 ø2
12
Dia. 11
9. Cut two pieces 80mm long from the
pipe cleaner (7) wind these around the
screws and the finally tighten them in
position
40
ø4 ø2
12
Abb. 8
10. Screw the eye (8) in the head end in the
pre-made hole!. (See dia 11)
Finished!
Abb. 7
Dia. 9
Dia 12
