Mechanical grasshopper

Advertisement

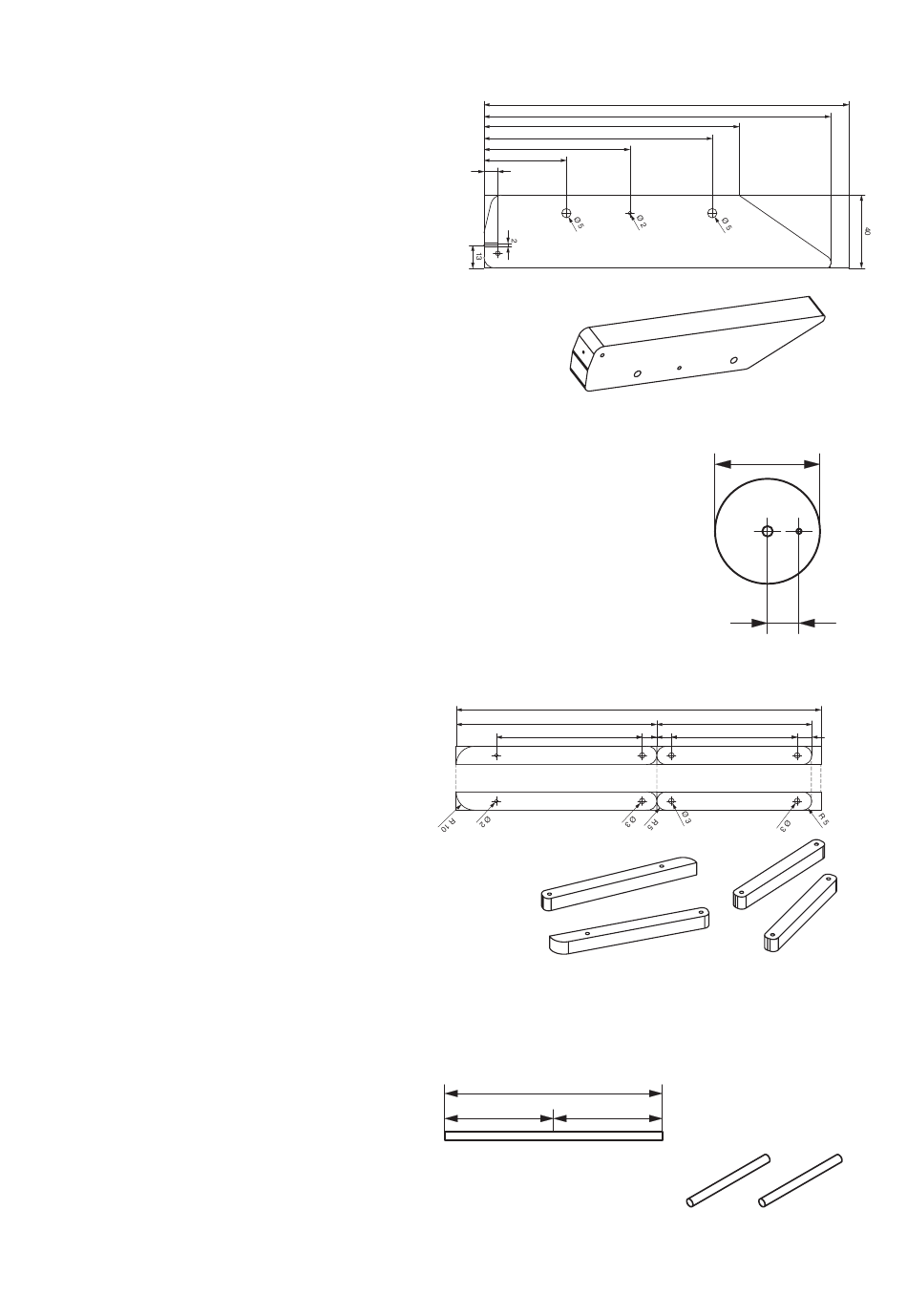

Making the single parts:
1. Trace the shape of the body ( Page 5) on to the pine
block 200x40 x 20mm ( Part 1)
Mark out the position of the holes. Use a pillar drill to
drill the holes.
Then lightly countersink the holes
Use a fretsaw to cut out the sloping shape of the back
and the rounded front
File/ rasp and sandpaper the shape to finish ( Dia.2 )
2. On the two wooden wheels (3, rear wheels) alongside the 4mm hole drill a further
2mm hole as shown in the diagram (Abb. 3)
3. Cut the wooden strip into four parts according to
the pattern (5).
Drill the 2mm holes with a drilling machine as
according to the plan (Dia. . 4)
Round the ends of both parts (2a) with a file .
Round the ends of the 110-mm part with a file as
shown ( Careful with the holes )
4. Saw the dowel (4) in two equal parts (50 mm) and
sand the cuts ( See diagram 6)
2
INSTRUCTIONS
8
45
8
50
100
50
50
80
8
8
200
190
140
125
80
45
1
Dia. 2
Dia. 3
200
110
80
8
8
2b
Dia.4
Dia. 5
200
190
140
125
80
100
100
50
50
Dia. 6
69
8
Dia. 1
1
40
ø4 ø2
3
12
85
69
8
2a
50
D111644#1
