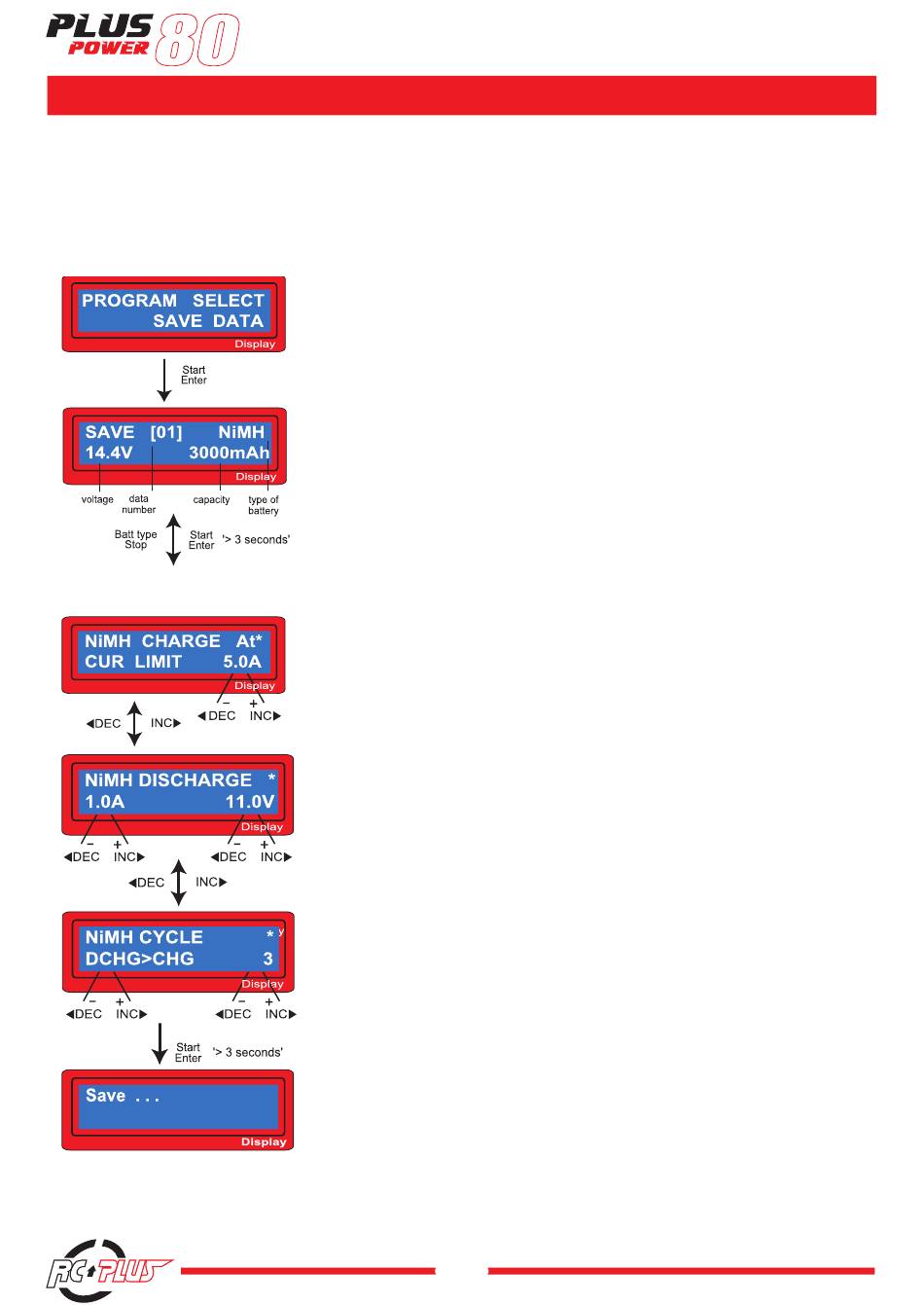

SAVE DATA PROGRAM

It has the data storage and load program for your convenience. This feature can store up to 5 battery data
by number that represent the individual specification of the batteries you are using. They can be called back
for the process of charging or discharging without setting up the program again. To set up the parameter
value in the program, press START/ENTER key to make it blink then change the value with INC or DEC key.
Program select.
Program select.
The parameter value setting up in this screen does not affect charge or
The parameter valaue setting up in this screen
discharge process. They only represent the specification of the battery.
does not affect charge or discharge process. They
The following screens will automatically be displayed exactly matched
only represent the specification of the battery. The
battery type you set up. The example shows the battery pack of NiMH,
following screens will automatically be displayed
12cells and 3000mAh of capacity.
exactly matched battery type you set up. The
example shows the battery pack of NiMH, 12cells and
3000mAh of capacity.
Set up the charge current for manual charge mode, or
Set up the charge current for manual charge mode, or the current limit
the current limit for automatic charge mode. Each mode
for automatic charge mode. Each mode can be switched by pressing
can be switched by pressing INC and DEC button at
INC and DEC button at the same time when the current field is blinking.
the same time when the current field is blinking.
Setting up discharge current and final voltage.
Setting up discharge current and final voltage.
Setting up the sequence of charge and discharge, and
Setting up the sequence of charge and discharge, and the cycling
the cycling number.
number.
Saving the data.
Saving the data.
