Summary of Contents for RC-Plus PLUS POWER 80
-
Page 3: Warnings And Safety Notes
WARNINGS AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Also read the chapter before you begin. •... - Page 4 WARNINGS AND SAFETY NOTES properly is that the charge lead should be of adequate conductor cross-section, and high quality connectors which are normally gold-plated should be fitted to both ends. Always refer to the manual by the battery manufacturer pertaining to charging methods. Operate according to their recommended charging current and charging time.
-
Page 5: Standard Battery Parameters
WARNINGS AND SAFETY NOTES • Have you checked the battery voltage? Lithium battery packs can be wired in parallel and in series, i.e. a 2-cell pack can be 3.7V (in parallel) or 7.4V (in series). • Have you checked that all connections are firm and secure? Make sure there are no intermittent contacts at any point in the circuit. -
Page 6: Specifications
SPECIFICATIONS Operating voltage range: 10.0~18.0Volt Circuit power: max.80W for charging max.5W for discharging Charge current range: 0.1~7.0A Discharge current range: 0.1~1.0A Current drain for balancing Li-po: 300mAh/cell NiCd/ NiMH battery cell count: 1~15cells Lithium battery cell count: 1~6Series Pb battery voltage: 2 to 20V Weight: 400g... -

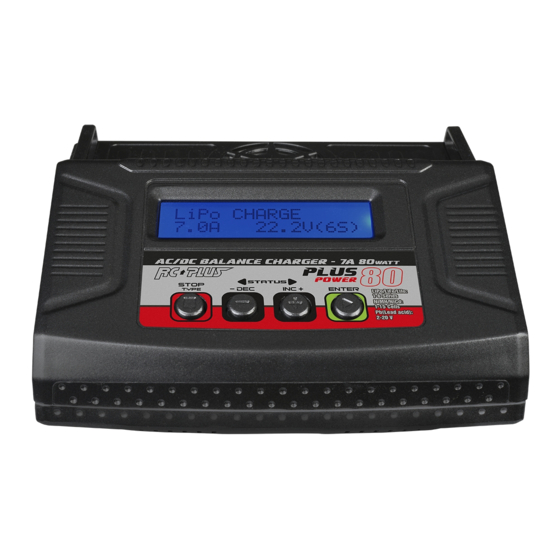

Page 7: Charger Layout
CHARGER LAYOUT BATT TYPE/STOP DEC/INC START/ENTER To select main program To select sub program To resume or start the To stop operation To alter the value operation Input Power Cable Charging lead Individual cell DC11-18V connector connector port 4mm banana female Input Power Cable 3-pin port for tem- AC100-240V... - Page 8 FEATURES Optimised operating software When charging or discharging, it has an ‘AUTO’ function that sets the feeding current automatically. Especially for Lithium batteries, it can prevent the over-charging can lead to an explosion by users fault. Every program in the unit is controlled with mutual links and communication for every possible error so it introduces a maximum safety.
-
Page 9: Maximum Safety
FEATURES Maximum safety Delta-peak sensitivity: The automatic charge termination program works on the principle of the Delta-peak voltage detection.(NiCd/NiMH) Auto-charge current limit: When charging NiCd or NiMH at ‘AUTO’ current mode, you can set the upper limit of change current to avoid from high current charging. This is very useful when charging the low impedance and small capacity NiMH battery in ‘AUTO’... -
Page 10: Program Flow Chart
PROGRAM FLOW CHART Start PROGRAM SELECT LIXX CHARGE LIXX BALANCE Enter LIXX FAST CHG LIXX STORAGE LIXX BATT Batt type stop PROGRAM SELECT NiMH CHARGE Start Enter LIXX DISCHARGE NiMH DISCHARGE NiMH CYCLE NiMH BATT 'Aut' / 'Man' Batt type stop PROGRAM SELECT Start... -
Page 11: Initial Parameter Set Up (Users' Set Up)
INITIAL PARAMETER SET UP 5. Initial Parameter set up (Users' set up) It will be operated with the default value of the essential user settings when it is connected to a 12V battery for the first time. The screen displays the following information in sequence and the user can It will be operated with the default value of the essential user settings when it change the value of parameter on each screen. - Page 12 This shows the trigger voltage for automatic charge This shows the trigger voltage for automatic charge termination of termination of NiMH and NiCd battery. The effective NiMH and NiCd battery. The effective value ranges from 5 to 20mV per value ranges from 5 to 20mV per cell .if the trigger voltage is set higher, there is a danger of overcharging cell .if the trigger voltage is set higher, there is a danger of overcharg- the battery;...
-
Page 13: Lithium Battery (Lilo/Lipo/Life) Program
This program sets the maximum charge capacity that will be supplied to the battery during charge. If the delta-pack voltage is not detected nor the safety timer expired by any reason, this feature will automati- cally stop the process at the selected capacity value. The beep sounds at every time pressing the buttons to confirm your action. -
Page 14: Charging Lithium Battery At Balance Mode
This shows the number of cells you set up and the processor detects. ' R: ' shows the number of cells This shows the number of cells you set up and the found by the charger and ' S:' is the number of This shows the number of cells you set up and the processor detects. -
Page 15: Fast Charging Lithium Battery
6.3 'FAST' charging Lithium battery 6.3 'FAST' charging Lithium battery FAST CHARGING LITHIUM BATTERY The charging current is getting smaller as the process goes to the near end term The charging current is getting smaller as the process goes to the near end term of Lithium battery charging. -
Page 16: Discharging Lithium Battery
DISCHARGING LITHIUM BATTERY 6.5 Discharging Lithium battery The value of discharge current on the left side of The value of discharge current on the left side of screen may not exceed 1C 6.5 Discharging Lithium battery screen may not exceed 1C for a maximum safety for a maximum safety and the final voltage on the right should not be under and the final voltage on the right should not be under the voltage level that is recommended by the battery manufacturer to avoid... -
Page 17: Nimh/Nicd Battery Program
NIMH/NICD BATTERY PROGRAM 7. NiMH/NiCd battery program 7. NiMH/NiCd battery program These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd (Nickel-Cadmium) battery These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or commonly used for R/C model applications. -
Page 18: Pb( Lead-Sulphuric Acid) Battery Program
7.3 Charge-to-discharge & discharge-to-charge cycle NiMH/NiCd battery Set the sequence on the left and the number of cycle CHARGE/DISCHARGE - DISCHARGE/CHARGE CYCLE OF NIMH/NICD BATTERY 7.3 Charge-to-discharge & discharge-to-charge cycle NiMH/NiCd battery on the right. You can use this function for balancing, refreshing and break-in the battery. -
Page 19: Discharging Pb Battery
stop charging forcibly, press Batt type/Stop key once. The audible sound indicates you at the end of process. The screen displays the state of charging process. To stop charging forcibly, press Batt type/Stop key once. The audible sound indicates you at the end of process. DISCHARGING PB BATTERY 8.2 Discharging Pb battery Set discharge current on the left and final voltage on the right. -
Page 20: Save Data Program
SAVE DATA PROGRAM It has the data storage and load program for your convenience. This feature can store up to 5 battery data by number that represent the individual specification of the batteries you are using. They can be called back for the process of charging or discharging without setting up the program again. -
Page 21: Load Data Program
LOAD DATA PROGRAM 11. Load Data Program 11. Load Data Program This program calls back the data that was stored at ‘Save Data’ program. To load the data, press Start/Enter This program calls back the data that was stored at 'Save Data' program.To load This program calls back the data that was stored at 'Save Data' program.To load key once to blink the data number field and select the number using INC or DEC key then press Start /Enter the data, press Start/Enter key once to blink the data number field and select the... - Page 22 The external temperature only will be displayed when The external temperature only will be displayed when using the using the thermal probe. The external temperature only will be displayed when thermal probe. using the thermal probe. The present voltage of input DC power. The present voltage of input DC power.
- Page 23 There happens the malfunction at the charger circuit There happens the malfunction at the charger circuit by any reason. by any reason . The processor detects the voltage is lower than you The processor detects the voltage is lower than you set at Lithium set at Lithium program.
- Page 24 RC-PLUS. There- fore RC-PLUS is in no way liable for loss, damage, or costs resulting from improper use, or behaviour in any way connected to the above described provisions. Unless otherwise required by law, RC-PLUS is in no way...
- Page 25 This manual is protected by a copyright. Any publication, transmission or commercial use of this manual is prohibited without written permission. RC-PLUS and JSP Group Intl BVBA assumes no responsibility for printing errors in this manual. This manual is subject to technical changes.
-
Page 26: Declaration Of Conformity
CONFORMITY Declaration of Conformity RC-PLUS PLUS POWER 80 AC/DC RC-PLUS, a division of JSP Group Intl BVBA declares under sole responsibility that the battery charger PLUS POWER 80 AC/DC to which this declaration relate, conforms with the following LVD standards;... - Page 28 RC-Plus is distributed by Pro Models Geelseweg 80 • 2250 Olen • Belgium • Tel: +32 14 25 92 83...
