Endless Pools Fastlane Owner's Manual page 9

SEE VIEW A
NOTES:

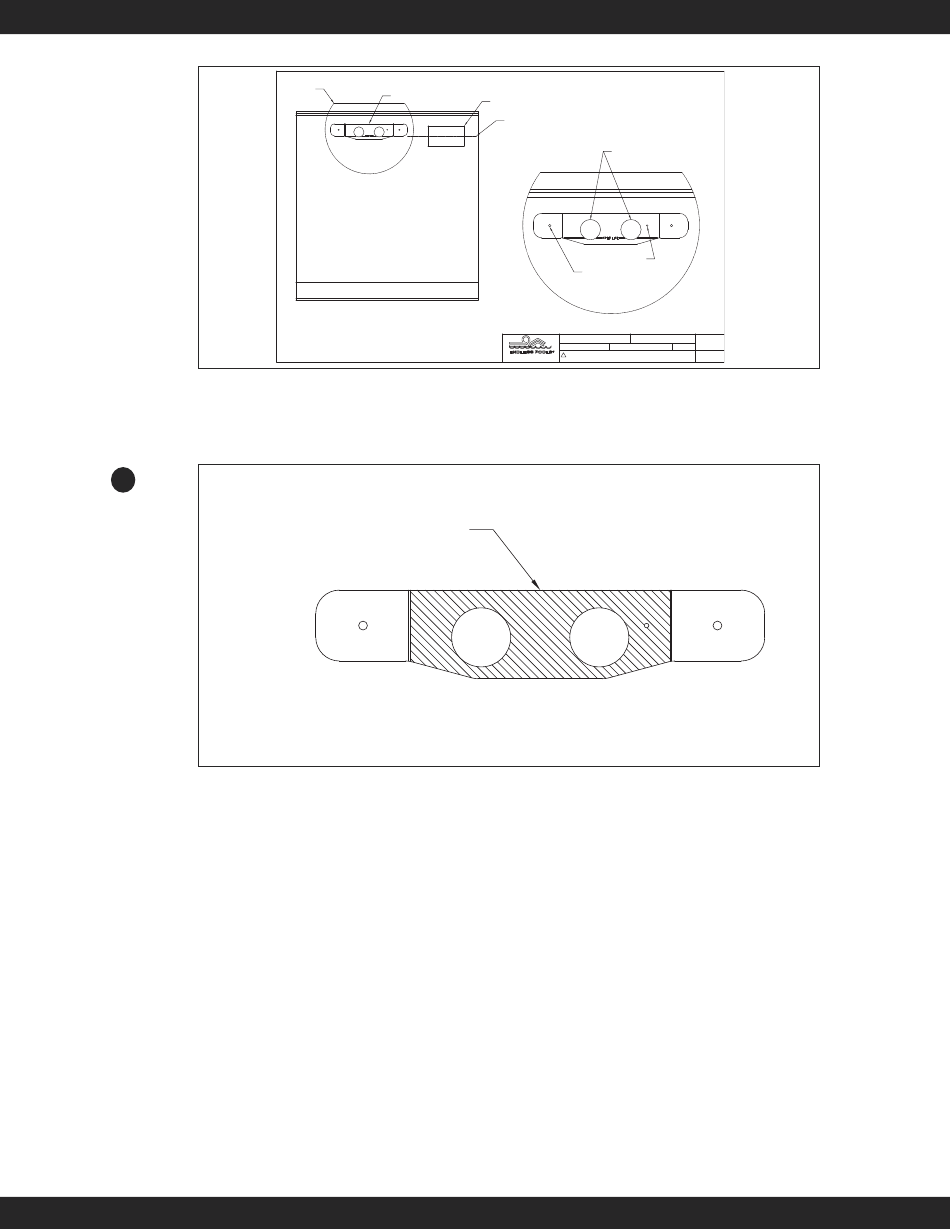

Fig. 4.8
Once the openings are marked, the bracket can be removed from the pool wall. Use a 2-1/2" (63,5mm)
hole saw to drill the thru-wall holes. Use a 3/8" (9,5mm) drill bit for the threaded rod holes. Use a 3/16"
(4,8mm) drill bit for the bonding lug hole.
W
CUT BRACKET BETWEEN NOTCHES
DISCARD MIDDLE SECTION
Fig. 4.9
Cut the center portion out of the bracket using the etched marks in the brackets as a guide. The two end
portions will be used as a washer on the backside of the pool wall.
Insert the threaded rod back into each PVC washer so that the rod will extend into the pool approximately
1-1/2"(38mm). A 3/8" (9,5mm) washer and jam nut should be on inside of the pool and on the backside of
the PVC bracket on the outside of the pool (see Fig 4.10).
The backside of the thru-wall holes may need to be sanded flat so that a proper seal can be made. Place one
of the rubber gaskets onto the thru-wall fitting (the other rubber gasket will not be used in this application.
Insert it into the hole and place the cork gasket onto the fitting on the backside of the pool. Thread the lock
nut onto the fitting onto the thru-wall. The lock nut should be tightened with a pair of channel locks or
strap wrench.
Using PVC cleaner and PCV cement, glue the conduit into the backside of the thru-wall assemblies. Run
the conduit back to the junction box or hydraulic power unit.
Place the bonding lug onto the bonding screw and insert it into the hole in the pool wall so that the threads
of the screw are on the inside of the pool. Place the 10-32 washer and jam nut onto the screw. The bonding
lug must be tied into the pool-bonding grid with a #8 AWG bare copper wire.
3/8" (9,5mm) PVC TEMPLATE
1. LOCATE THE WALL BRACKET SO THE BOTTOM EDGE
IS EVEN WITH THE CENTER LINE OF THE SKIMMER.
2. MARK THE LOCATIONS OF THE HOLES FROM THE TEMPLATE
TO THE POOL WALL.
F a s t l a n e
POOL SKIMMER
CENTERLINE OF SKIMMER
WATERLINE OF POOL
SCRIBE HOLES OF TEMPLATE ONTO SHELL.
THEN DRILL A 2-1/2" (63,5mm) Ø HOLE AT THE
CENTERMARK OF EACH SCRIBED HOLE
DRILL 3/16"(4,8mm) DIAMETER
DRILL 3/8" (9,5mm) DIAMETER
2 PLACES
View A
2:1
FIBERGLASS WALL MOUNT INSTALLATION LOCATING WALL TEMPLATE
Drawing Name: Part Name:
Tolerance: (unless otherwise specified) NOT APPLICABLE Material:
+/- tolerance, +/- tolerance°
Revision: Date: Dwg By: Description:
05-25-07
A KGK Initial Release
200 East Dutton Mill Road., Aston PA 19014
Website: http://www.endlesspools.com
Email: swim@endlesspools.com Phone: 484-768-1000
S w i m U n i t I n s t a l l a t i o n
®
Drawing Number:
Part#-Rev
Drawing Not To Scale
Sheet Number:
1
8
